4-8
FUEL
E
CARBURETOR
REMOVAL AND DISASSEMBLY
WARNING
At this step, ensure there is no spillage of
gasoline on removing the connections.
1. Remove the silencer cover, disconnect
the fuel hose, then remove the carbure-
tor.
* Except for C60ER, C60TR, C75TR

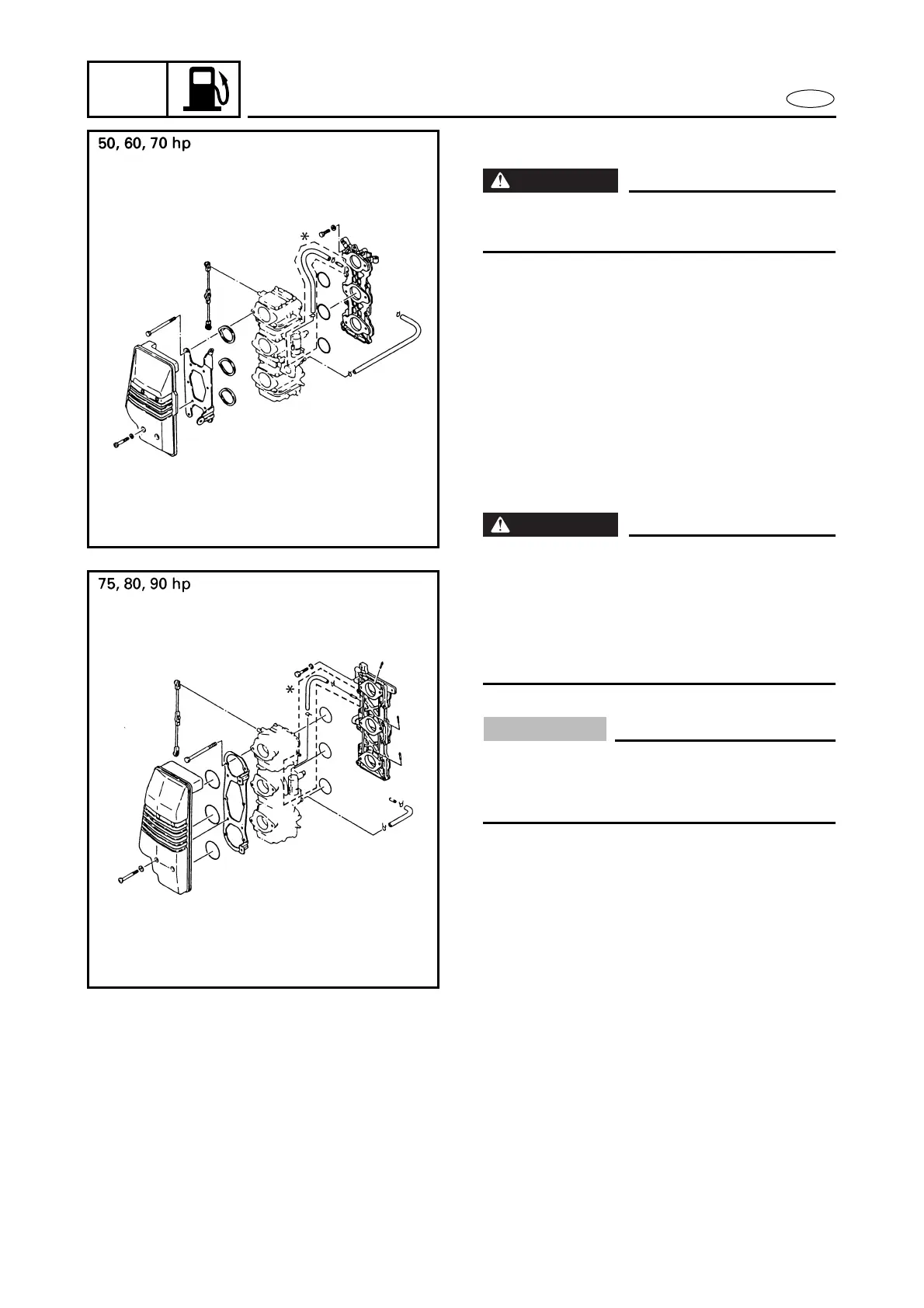

2. Referring to the diagram, use a screw-
driver to disassemble the carburetor.
3. Using solvent, clean the components
thoroughly and blow-dry them with
compressed air.
WARNING
Protect your eyes with suitable safety
glasses or safety goggles when using com-
pressed air. Protect your eyes and the eyes
of others by directing the flow of com-
pressed-air downward, noting that solvent
and small parts may be blown off.
CAUTION:
Do not use steel wire for cleaning the jets
as this may enlarge the jet diameters and
seriously affect performance.
