Yamaha 60F - EXPLODED DIAGRAM

6-1
E
LOWR

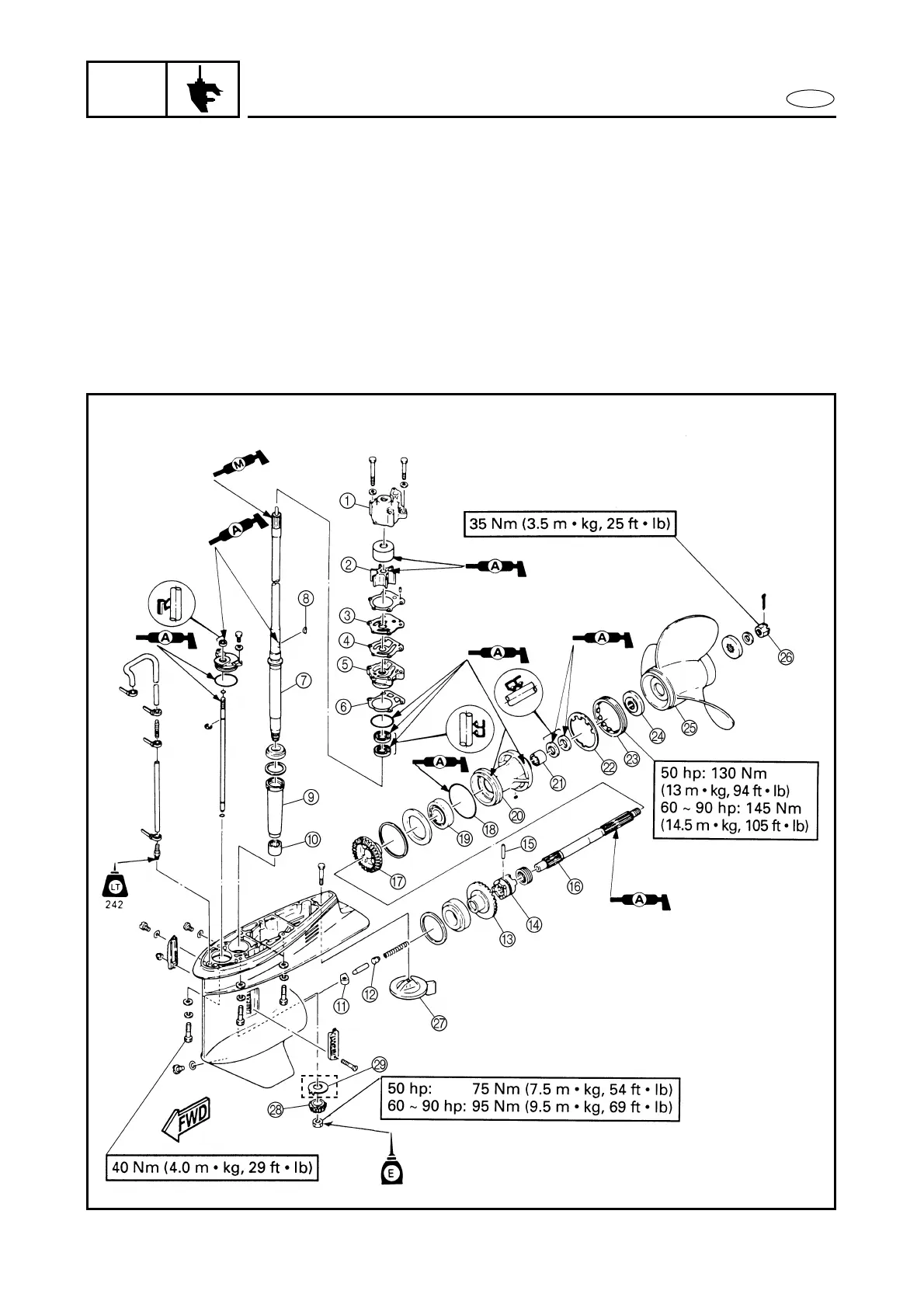

EXPLODED DIAGRAM (FOR 50GETO, C60ER, C60TR/60FET (OCEANIA),
C75TR, 90AEHD, 90AED, C90TR/90AET)
1 Water pump housing
2 Impeller
3 Cartridge outer plate
4 Cartridge outer plate gasket
5 Oil-seal housing
6 Water pump gasket
7 Drive shaft
8 Woodruff key
9 Drive shaft sleeve
0 Needle bearing
A Shifter
B Shift slide
C Forward gear
D Clutch dog
E Cross pin
F Propeller shaft
G Reverse gear
H O-ring
I Bearing
J Bearing housing
K Needle bearing
L Claw washer
M Ring nut
N Spacer
O Propeller
P Castle nut
Q Trim tab
R Pinion gear
S Spacer (50GETO)
EXPLODED DIAGRAM
