Yamaha 60F - EXPLODED DIAGRAM (Short Transom [6 H308])

7-12
E
BRKT
POWER TRIM AND TILT UNIT
K51000-0

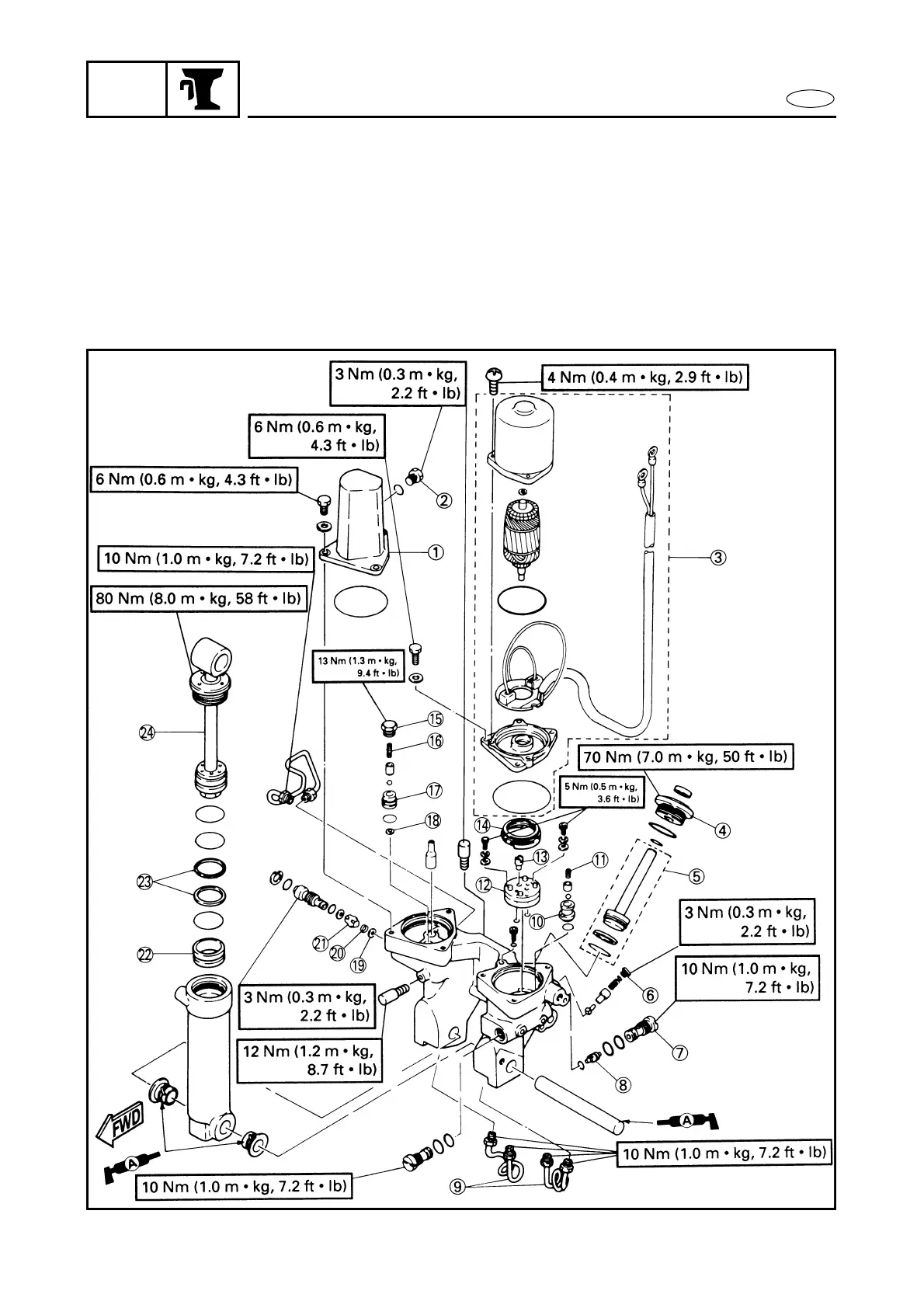

EXPLODED DIAGRAM (Short transom [6H308])
1 Reservoir body
2 Reservoir plug
3 Motor assembly
4 Trim cylinder end screw
5 Trim piston assembly
6 Valve seat screw
7 Main valve assembly
8 Shuttle piston
9 Pipe
0 Down relief valve seat
A Down relief spring
B Gear pump assembly
C Shaft connector
D Filter 2
E Up relief valve lock screw
F Up relief spring
G Up relief valve seat
H Filter 1
I Manual valve seat
J Manual release spring
K Adapter
L Free piston
M Back-up ring 2
N Tilt cylinder assembly
