Yamaha 60F - Page 138

7-13
E
BRKT

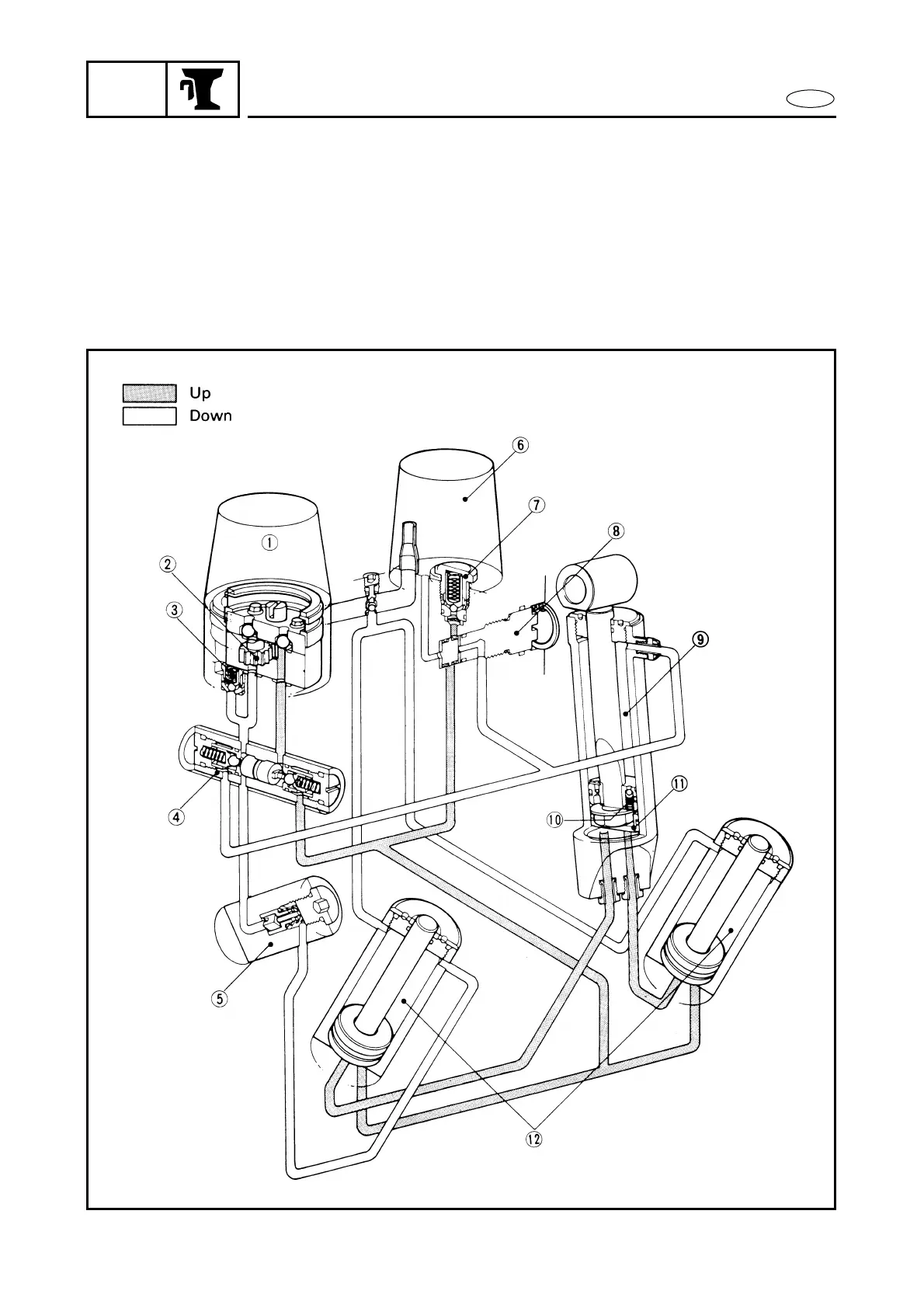

POWER TRIM AND TILT UNIT
1 Power trim and tilt motor
2 Gear pump
3 Down-relief valve (48 kg/cm
2
)
4 Main valve
5 2-way check valve
6 Reservoir
7 Up-relief valve (40 kg/cm
2
)
8 Manual valve
9 Tilt cylinder
0 Absorber valve (80 kg/cm
2
)
A Free piston
B Trim cylinder
