Yamaha 60F - INSTALLATION (75, 80, 90 Hp)

8-36
–+
ELEC
E
STARTER MOTOR

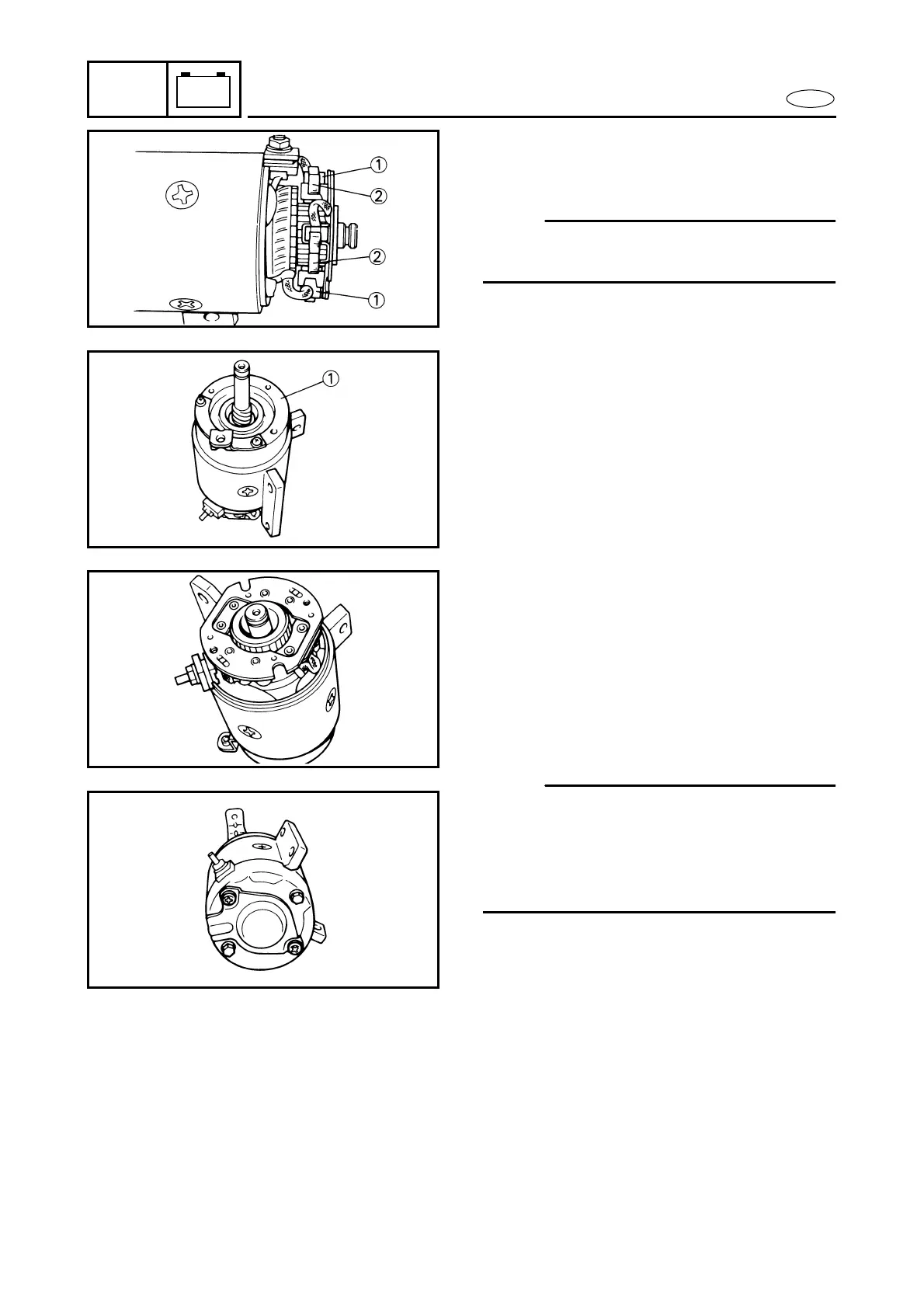

2. Install the positive brush (on the stator
coil side) in the brush holder and hold it
with the spring.
NOTE:
Use care not to scratch the brushes when
installing.
1 Positive brush
2 Spring
3. Mount the two steel washers and resin
washer, in that order, on the armature
shaft and install the front cover onto the
yoke assembly.
1 Front cover
4. Align the cut (for the through-bolt) in
the brush holder with the gap in the
brush holder so that the through-bolt
can be inserted.
5. Install the rear cover onto the yoke
assembly, insert the through-bolt into
the rear cover and screw it into the front
cover.
NOTE:
● Apply a thin coat of grease (anti-freeze
grease) to the front and rear cover bear-
ings.
● To seal out water, the mating surfaces are
coated with sealing compound.
INSTALLATION (75, 80, 90 hp)
1. Place the starter-motor on the starter-
motor stay and tighten the bolts.
2. Secure the starter-motor to the engine
with the four starter-motor mounting-
bolts.
3. Connect the positive and negative wires
to the starter-motor.
