Yamaha 60F - Inspection; Tilt-Rod and Trim-Rod; Assembly

7-24
E
BRKT
POWER TRIM AND TILT UNIT

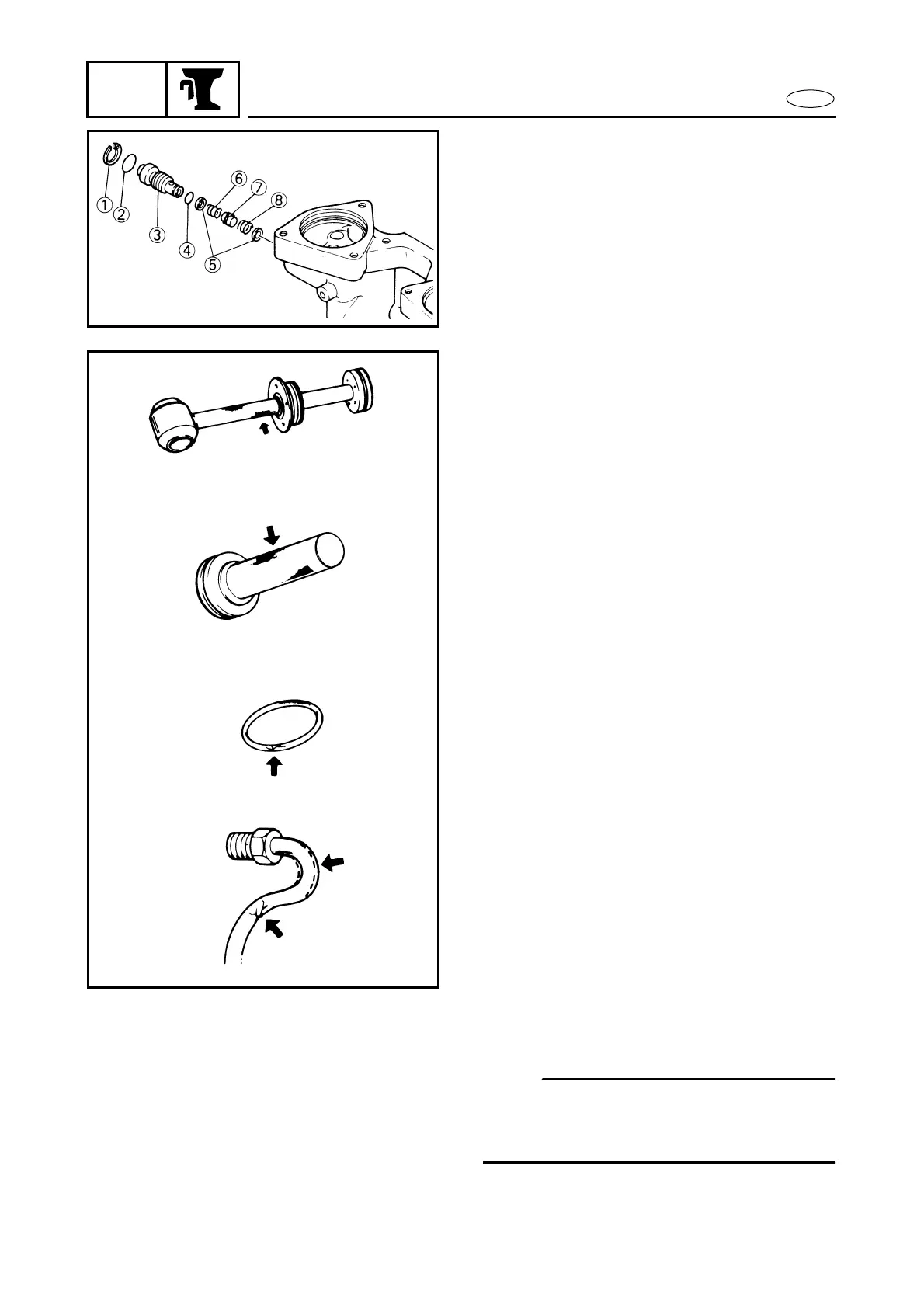

12. Remove the circlip and the manual
valve and components.
1 Snap ring
2 O-ring
3 Manual release screw
4 O-ring
5 Manual valve seat
6 Manual release spring 1
7 Adapter 1
8 Manual release spring 2
K53000-0
INSPECTION
TILT-ROD AND TRIM-ROD
1. Clean these components using a soft
brush and solvent and inspect them
carefully. If there are light scratches on
the surfaces, these may be polished off
using fine wet-or-dry sandpaper (440 ~
600 grit), but if there is excessive
scratching, replace the components.
2. Clean all the parts thoroughly using a
soft brush and solvent and dry them
with compressed air.
3. Inspect the tilt-cylinder and pump-unit
and replace them if they are badly cor-
roded.
K54001-0*
ASSEMBLY
NOTE:
The components in this assembly are to be
lightly coated with hydraulic fluid before
assembly.
