Yamaha 60F - Page 148

7-23
E
BRKT

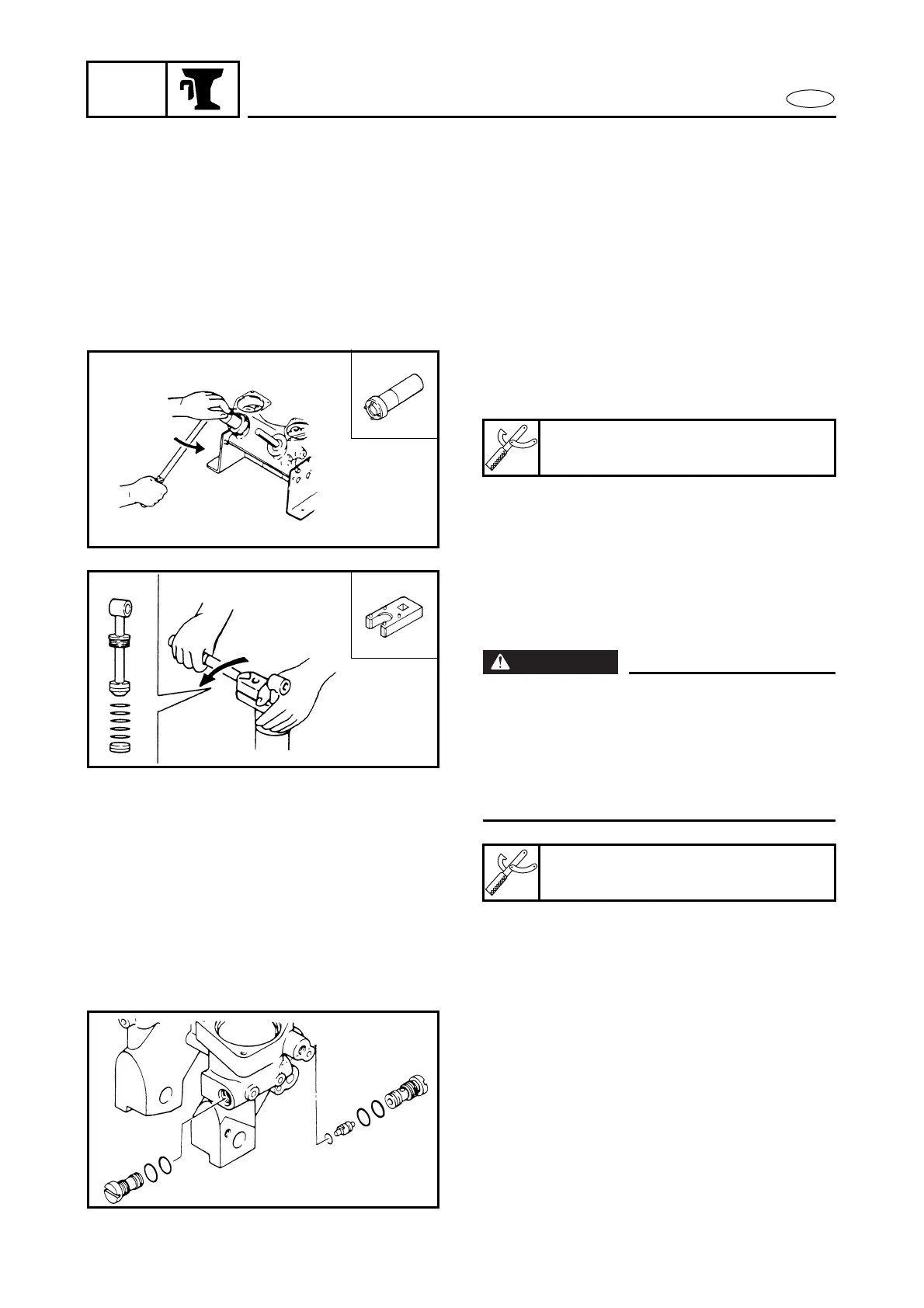

POWER TRIM AND TILT UNIT
8. Remove the one-way valve and main
valve seal.
9 Valve lock screw
0 O-ring
A Ball
B Washer
C Main valve seal
9. Loosen the trim-cylinder end-screw and
pull out the trim-piston and
components.
Cylinder end screw wrench:
YB-6175-1A/90890-6548
10. Loosen the tilt-cylinder end-screw and
pull out the tilt-piston and the free-pis-
ton.
WARNING
The free-piston can be removed easily by
blowing compressed air into the drain-hole
of the cylinder. Be sure to cover the open
end of the cylinder with a rag to prevent
the free-piston from being ejected, which
could cause injury or piston damage.
Cylinder end screw wrench:
YB-6175-2B/90890-06544
11. Remove the main valves and the shut-
tle-piston.
