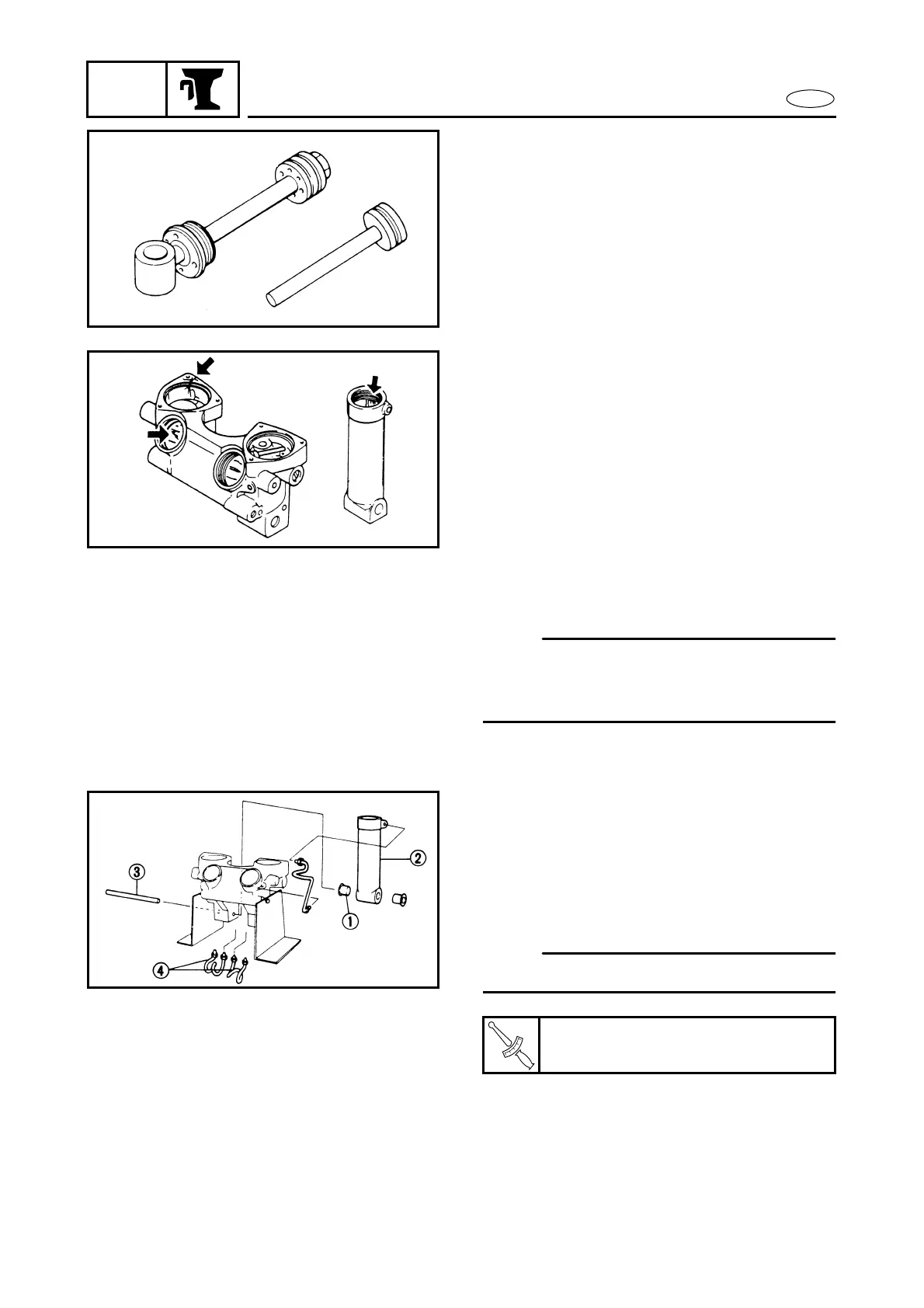

Yamaha 60F - Inspection; Tilt-Rod and Trim-Rod; Assembly

7-16
E
BRKT
POWER TRIM AND TILT UNIT
K53000-0
INSPECTION
TILT-ROD AND TRIM-ROD
1. Clean these components using a soft
brush and solvent and inspect them
carefully. If there are light scratches on
the surfaces, these may be polished off
using fine wet-or-dry sandpaper (440 ~
600 grit), but if there is excessive
scratching, replace the components.
2. Clean all the parts thoroughly using a
soft brush and solvent and dry them
with compressed air.
3. Inspect the tilt-cylinder and pump-unit
and replace them if they are badly cor-
roded.
K54000-0
ASSEMBLY
NOTE:
The components in this assembly are to be
lightly coated with hydraulic fluid before
assembly.
1. Install the tilt-cylinder and the delivery
pipes.
1 Bushing
2 Tilt-cylinder
3 Lower mount pin
4 Delivery pipe
NOTE:
Feed oil into each pipe.
T
R
.
.
Lock nut (delivery pipe):
10 Nm (1.0 m • kg, 7.2 ft • lb)
