ELECTRICAL COMPONENTS
M20000-0

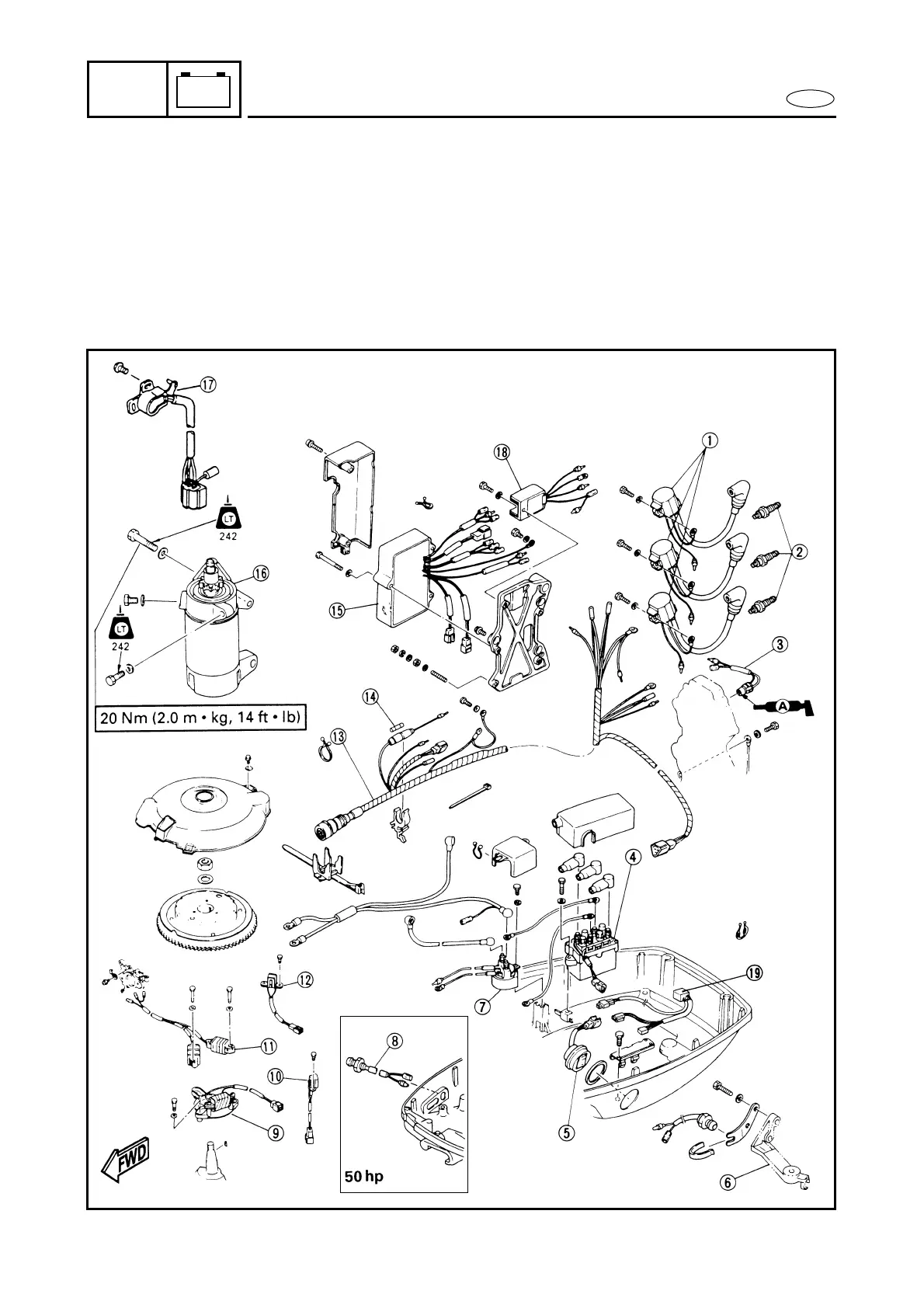

ELECTRICAL COMPONENTS
50, 60, 70 hp
1 Ignition coil
2 Spark-plug
3 Thermo switch
4 Power trim and tilt replay
(PTT model)
5 Trailer switch (PTT model
except for USA, Canada
and Oceania model)
6 Neutral switch (P60TH/60FEHTO)
7 Starter relay
8 Oil warning lamp (50GETO)
9 Charge coil
0 Crank position sensor
A Lighting coil
B Pulser coil
C Wire harness
D Fuse
E CDI unit
F Starter motor
G Trim sensor (PTT model)
H Rectifier/regulator
I Power trim and tilt connec-
tor assy (P60TH/60FEHTO)
