Yamaha 60F - Oil-Level Warning Lamp (L.e.D.); Wiring Harness

8-28
–+
ELEC
E
ELECTRICAL ANALYSIS
M57602-0

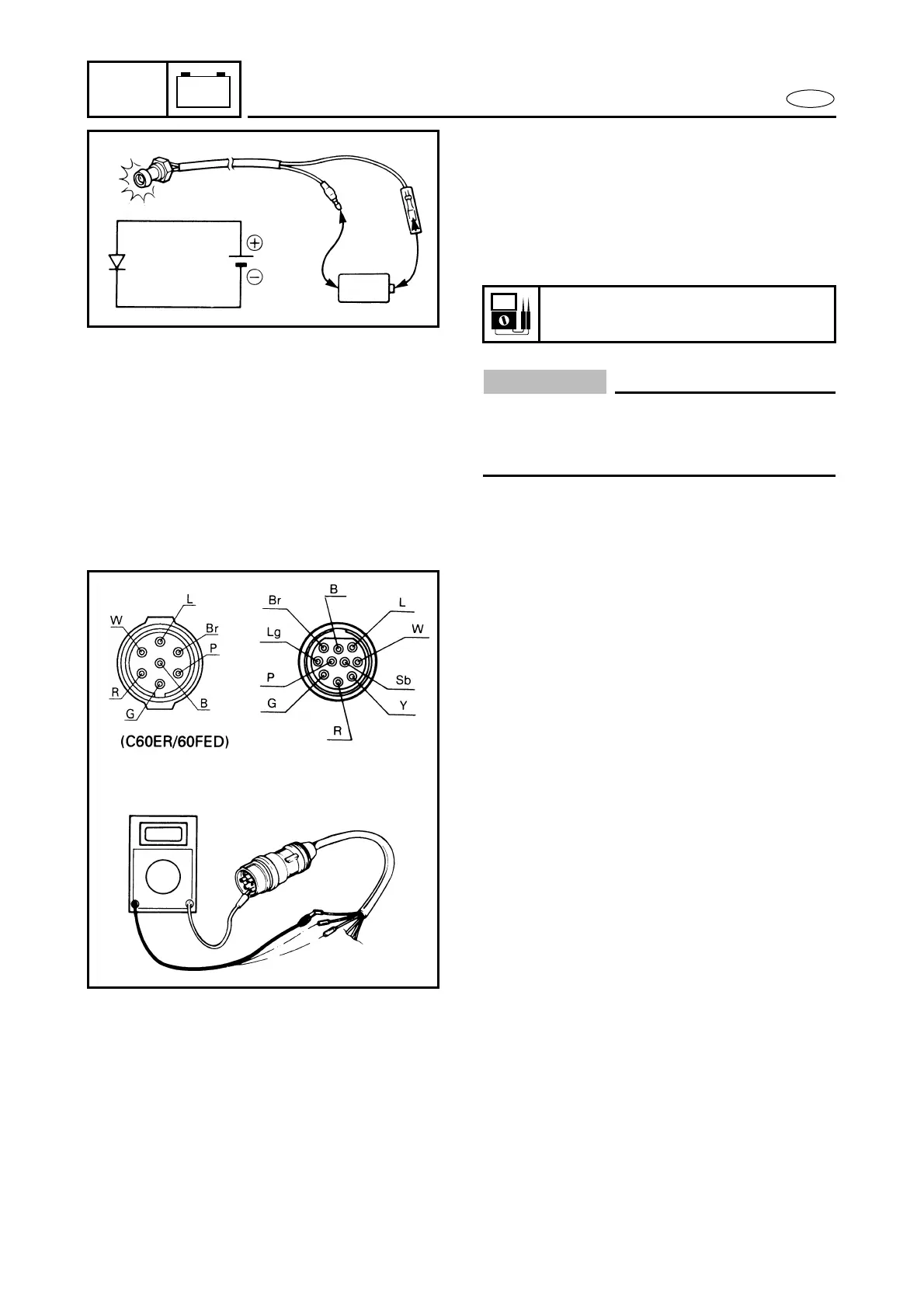

OIL-LEVEL WARNING LAMP (L.E.D.)
(50GETO)
Test the Light Emitting Diode (L.E.D.) using
a 1.5-V dry-cell battery.
If no light is emitted, replace the warning
lamp.
CAUTION:
Do not use a 12-V battery or a larger capac-
ity type, as this may damage the L.E.D. We
recommend using a pen light battery.
Battery voltage:
1.5V
M58300-0
WIRING HARNESS
1. Check the continuity between the cou-
pler side and each connector. Cores and
pins of identical colors must be con-
nected or a continuity test can not be
made.
2. If any of the cores is open-circuit,
replace the wiring harness.
Lg : Light green
P : Pink
Br : Brown
B : Black
L : Blue
Sb : Sky blue
W : White
Y : Yellow
R : Red
G : Green
