Yamaha 60F - Electrical Wiring

8-3
–+
ELEC
E
ELECTRICAL WIRING
D22000-0
ELECTRICAL WIRING
P60TH/60FEHTO
*1
, P75TH/75CEHTO, 90AEHD
*2

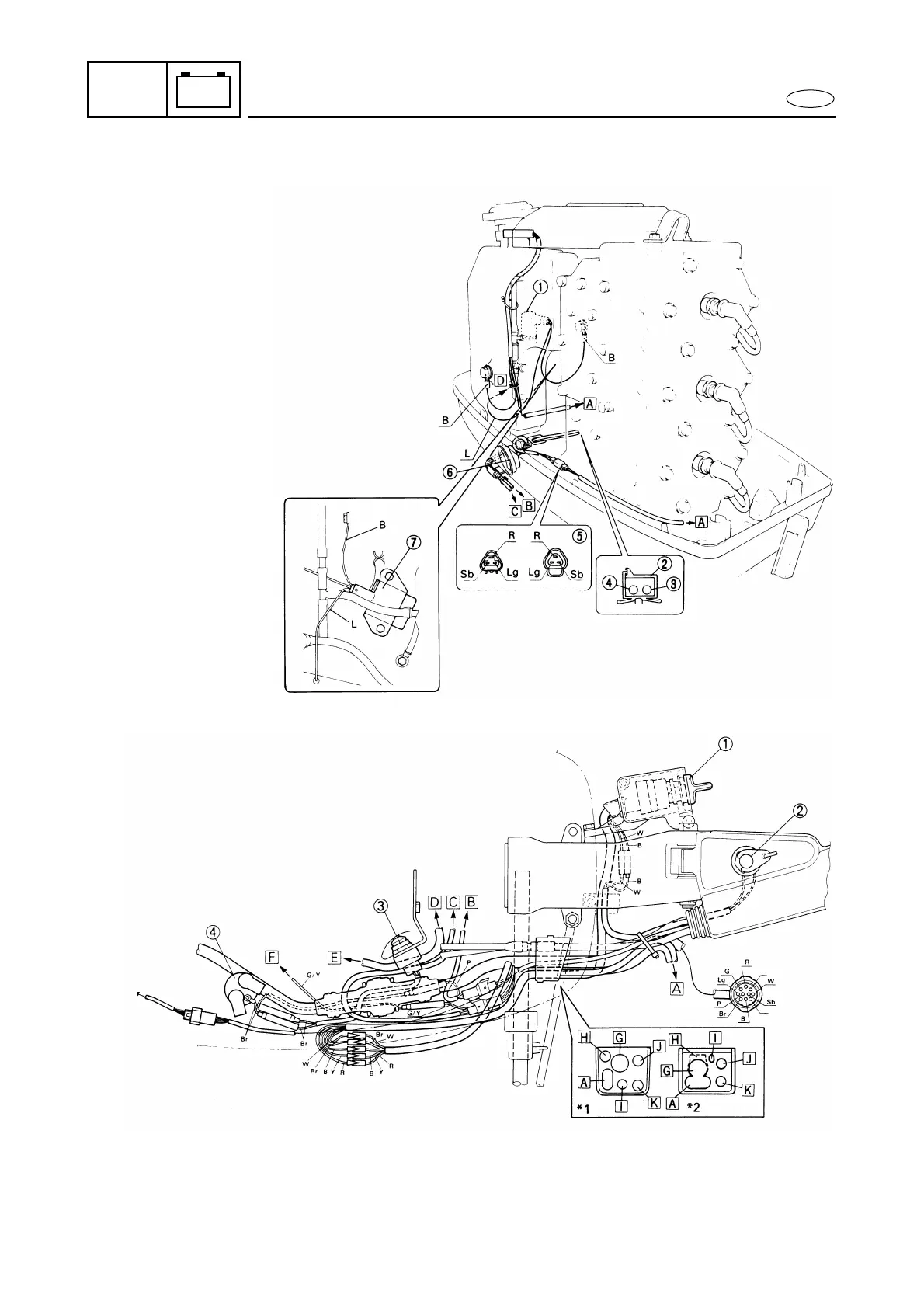

Check that all leads and connectors
are properly connected.
50, 60, 70 hp
1 Electrothermal valve
*1
2 Clamp
3 Power trim and tilt motor lead
*2
4 Trim sensor lead
*2
5 Trailer switch coupler
*2
6 Trailer switch
*3
7 Fuel enrichment valve
*4
Å To wire harness
ı To power trim and tilt motor
*2
Ç To trim sensor
*2
Î To lighting coil
*1
: Except for C60ER, C60TR
*2
: For PTT model
*3
: For PTT model except
for USA, Canada and
Oceania model
*4
: For C60ER, C60TR
B : Black
L : Blue
Lg : Light green
R : Red
Sb : Sky blue
1 Main switch
2 Engine stop switch
3 Neutral switch
4 Starter relay
Å To battery
ı To oil level sensor
*1
Ç To trim sensor
*1
Î To power trim and tilt motor
*1
‰ To power trim and tilt relay
*1
Ï To thermo switch
Ì To 10P coupler
Ó To Main switch
È To power trim and tilt switch
*1
Ô Throttle cable
 Shift cable
*1
: Except for 90AEHD
B : Black
Br : Brown
G : Green
G/Y : Green/Yellow
P : Pink
R : Red
W : White
Y : Yellow
