Yamaha 60F - Page 165

8-4
–+
ELEC
E

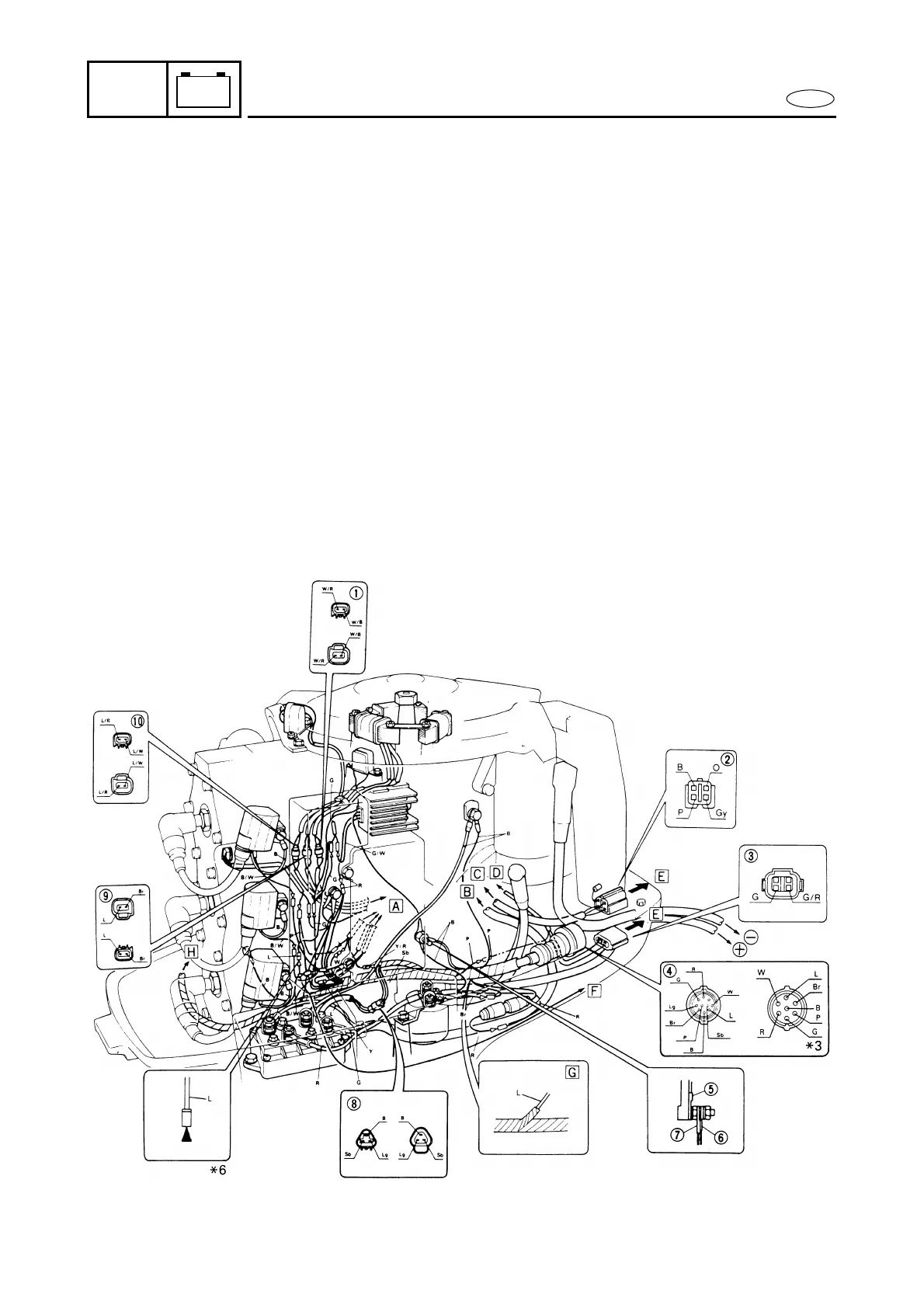

ELECTRICAL WIRING
50, 60, 70 hp
1 Pulser coil coupler
2 Trim sensor coupler
*1
3 Oil level sensor coupler
*2
4 Wire harness coupler (7P
*3
/10P
*4
)
5 Ground lead from rectifier/regulator
6 Ground lead from starter relay
7 Ground lead from wire harness
8 Power trim and tilt relay coupler
*1
9 Charge coil coupler
0 Crank position sensor coupler
Å To CDI unit
ı To power trim and tilt motor
*1
Ç To trim sensor
*1
Î To oil level sensor
*2
‰ To meter
Ï To electrothermal valve
*5
Ì To fuel enrichment valve
*6
Ó To trailer switch coupler
*1
B : Black
Br : Brown
G : Green
Gy : Gray
L : Blue
Lg : Light green
O : Orange
P : Pink
R : Red
Sb : Sky blue
W : White
Y : Yellow
*1
: For PTT model
*2
: For oil injection model
*3
: For C60ER/60FED
*4
: Except for C60ER/60FED
*5
: Except for C60ER, C60TR
*6
: For C60ER, C60TR
