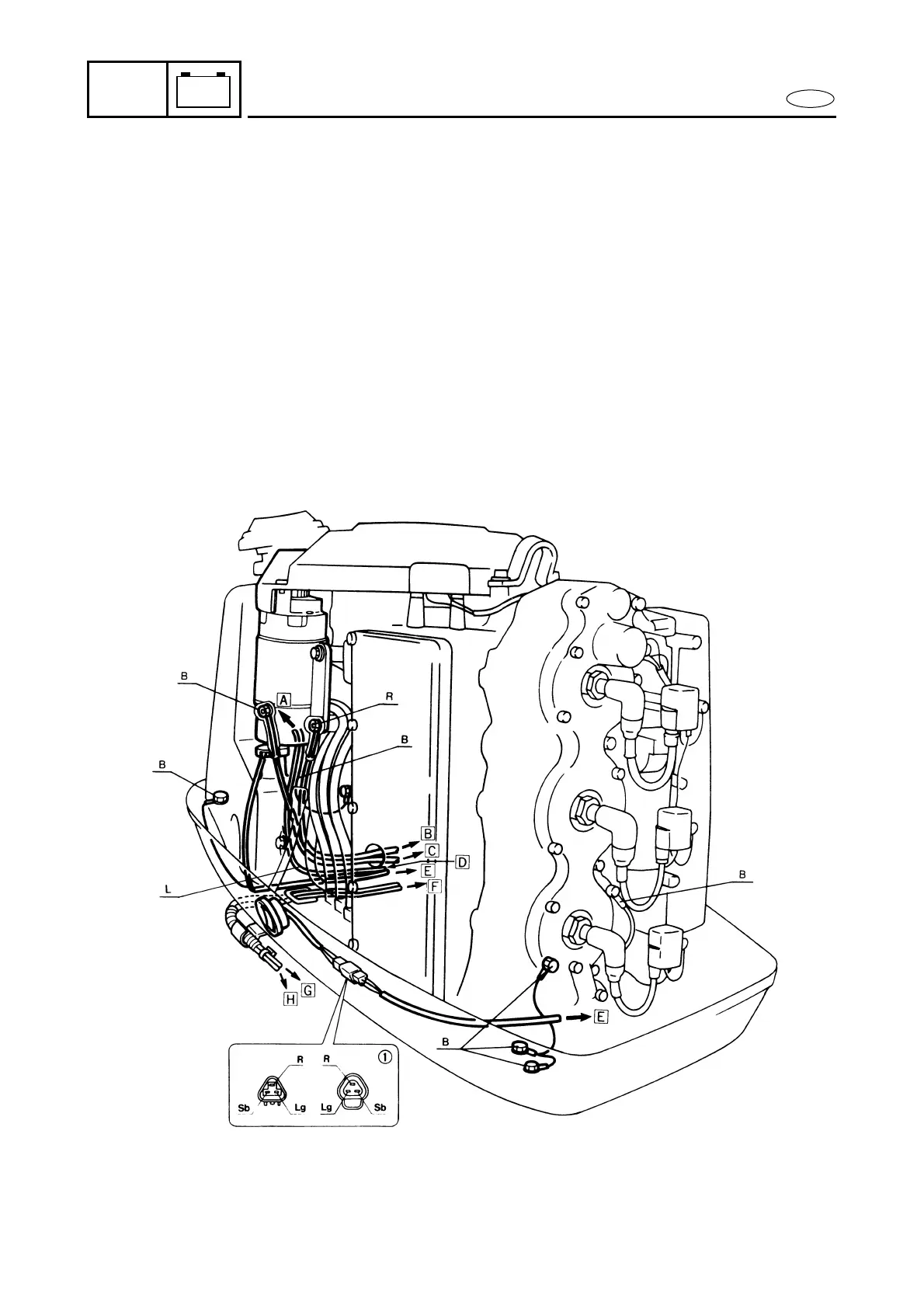

ELECTRICAL WIRING
75, 80, 90 hp
1 Trailer switch coupler
*1
Å To electrothermal valve
*2
ı To battery
Ç To starter relay
Î To lighting coil
‰ To wire harness
Ï To meter
Ì To trim sensor
*1
Ó To power trim and tilt motor
*1
*1
: For PTT model
*2
: Except for C75TR
B : Black
L : Blue
Lg : Light green
R : Red
Sb : Sky blue
