8-6
–+
ELEC
E

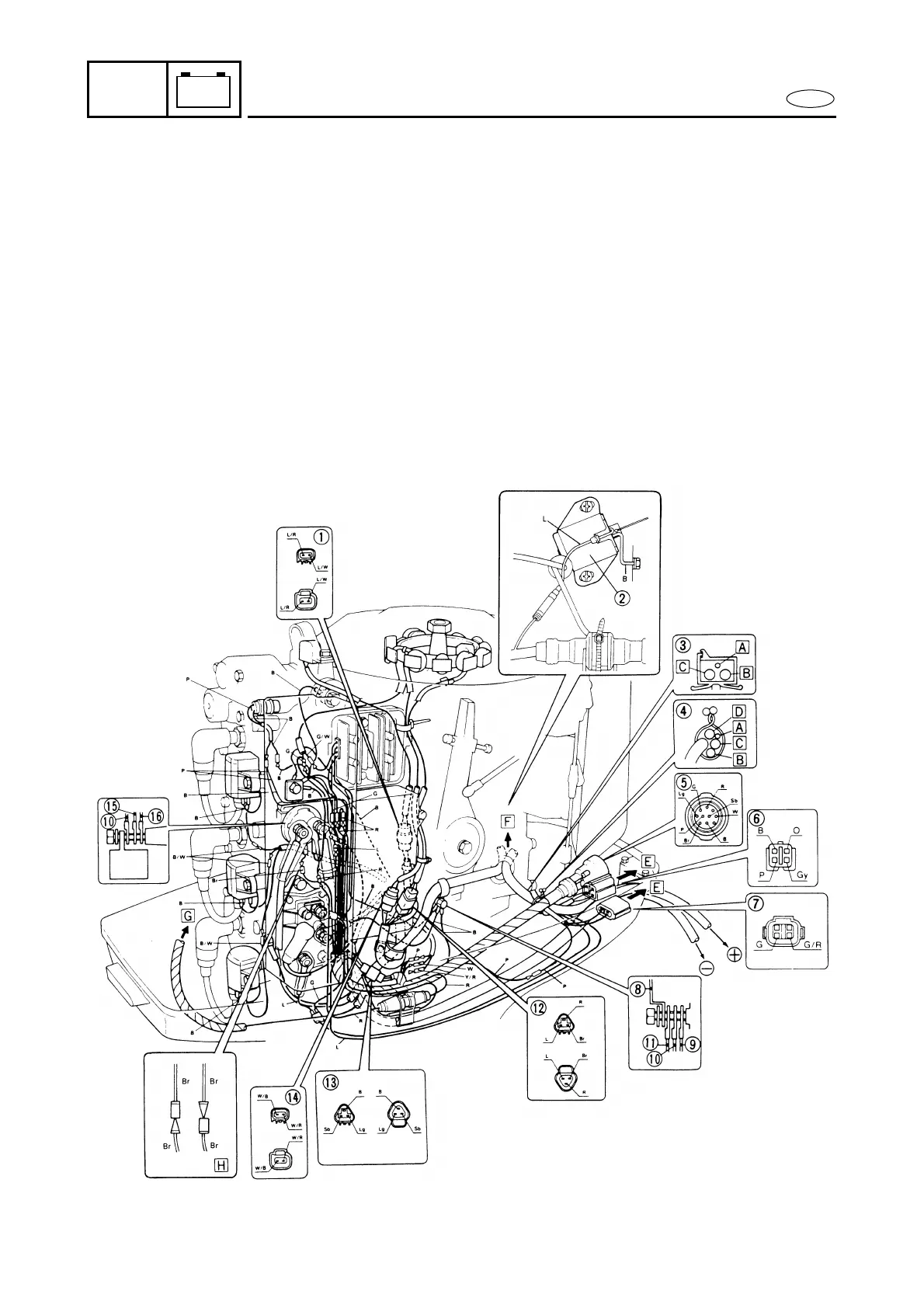

ELECTRICAL WIRING
75, 80, 90 hp
1 Crank position sensor coupler
2 Fuel enrichment valve
*1
3 Clamp
4 Clamp
5 Wire harness coupler
6 Trim sensor coupler
*2
7 Oil level sensor coupler
*3
8 Clamp
9 Ground lead from power trim and tilt relay
*2
0 Ground lead from wire harness
A Ground lead from rectifier/regulator
B Charge coil coupler
C Power trim and tilt relay coupler
*2
D Pulser coil coupler
E Ground lead from starter relay
F Ground lead from CDI unit
Å To electrothermal valve
*4
ı To trim sensor
*2
Ç To power trim and
tilt motor
*2
Î To oil level sensor
*3
‰ To meter
Ï To starter motor
Ì To trailer switch
*2
Ó To neutral switch
*5
B : Black
Br : Brown
G : Green
Gy : Gray
L : Blue
Lg : Light green
O : Orange
P : Pink
R : Red
Sb : Sky blue
W : White
Y : Yellow
*1
: For C75TR
*2
: For PTT model
*3
: For oil injection model
*4
: Except for C75TR
*5
: For P75TH/75CEHTO, 90AEHD,
90TR/90AETO, B90TR/90AETO
