6-3
E
LOWR

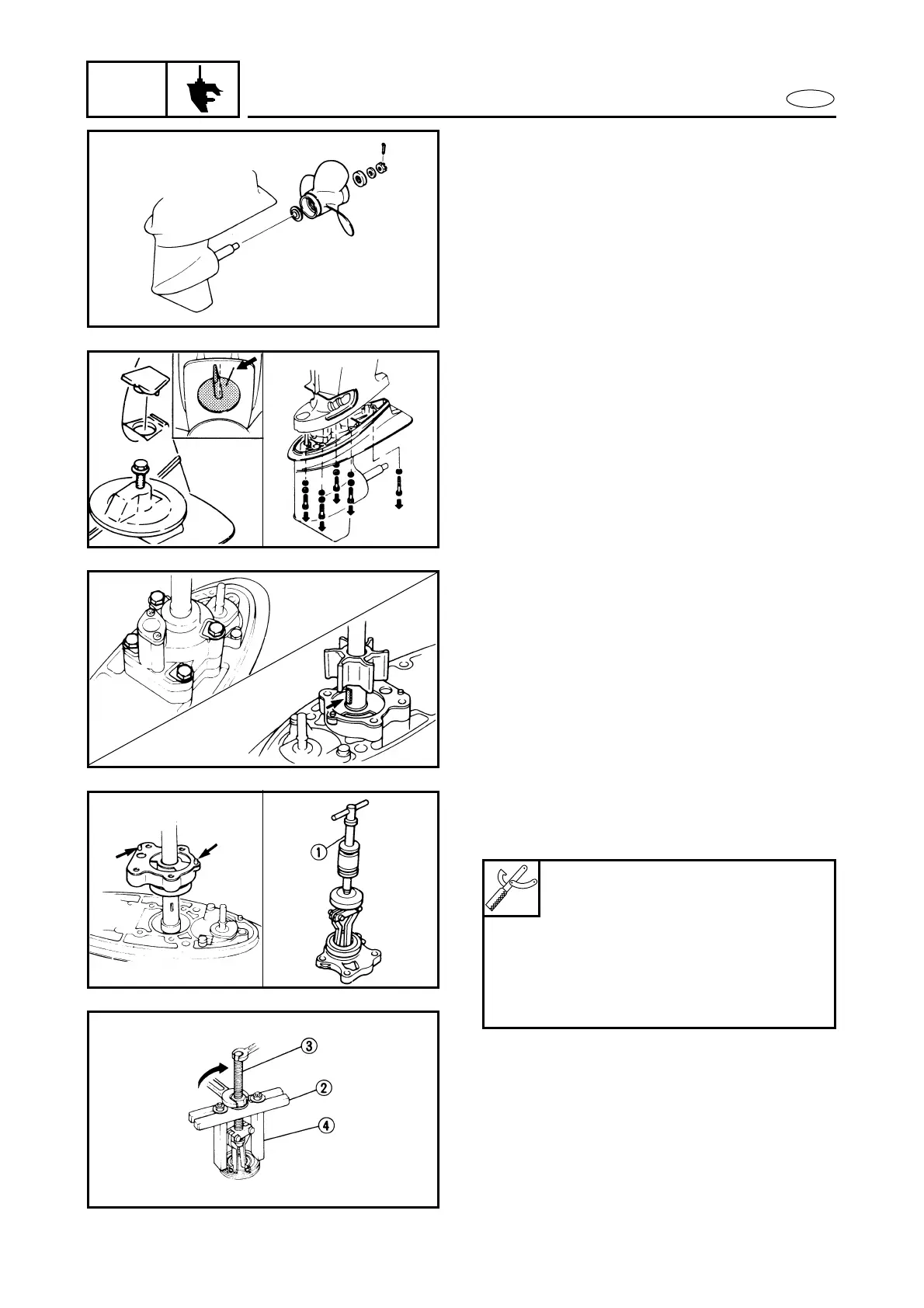

PREPARATION FOR REMOVAL/DISASSEMBLY
120001-0*
PREPARATION FOR REMOVAL
1. Remove the nut, washer, propeller and
spacer from the propeller shaft.
2. Drain the gear oil by removing the
plugs from the oil-filling hole and the
oil-level hole. Be sure to remove the oil
filling plug first.
3. Set the shift lever into neutral position.
4. Tilt up the lower unit and lock it with the
tilt lock lever.
5. Remove the trim tab. Before removing
it, put a mark indicating its position on
the anticavitation plate.
6. Remove the bolts.
140007-0
DISASSEMBLY
1. Referring to the exploded diagram,
remove the following parts.
1) Water pump housing and insert car-
tridge
2) Impeller and woodruff key
3) Oil-seal housing
(Water pump housing)
Remove the oil seals, if necessary
Å For USA and Canada
ı Except for USA and Canada
Slide hammer set:
YB-6096 1
Stopper guide plate:
90890-06501 2
Bearing puller:
90890-06535 3
Stopper guide stand:
90890-06538 4
Å
ı
