Yamaha 60F - EXPLODED DIAGRAM

5-1
POWR
E
G20000-0

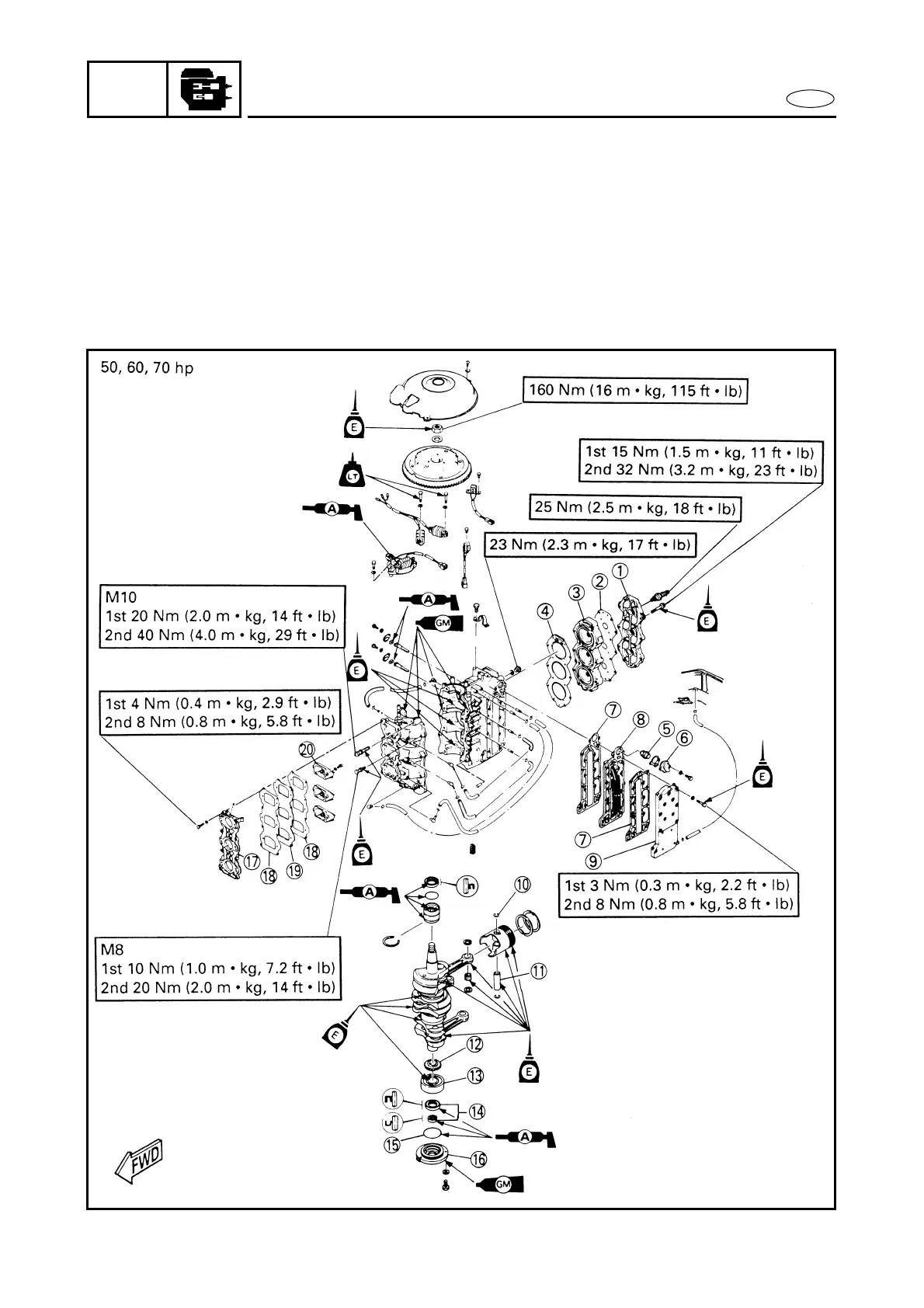

EXPLODED DIAGRAM
1 Cylinder head cover
2 Head cover gasket
3 Cylinder head
4 Cylinder head gasket
5 Thermostat
6 Thermostat cover
7 Exhaust cover gasket
8 Exhaust inner cover
9 Exhaust outer cover
0 Piston pin clip
A Piston pin
B Drive gear
C Bearing
D Oil seal
E O-ring
F Oil seal housing
G Intake manifold
H Valve seat packing
I Reed valve plate
J Reed valve assembly
EXPLODED DIAGRAM
