Yamaha 60F - Dimension

2-10
SPEC
E

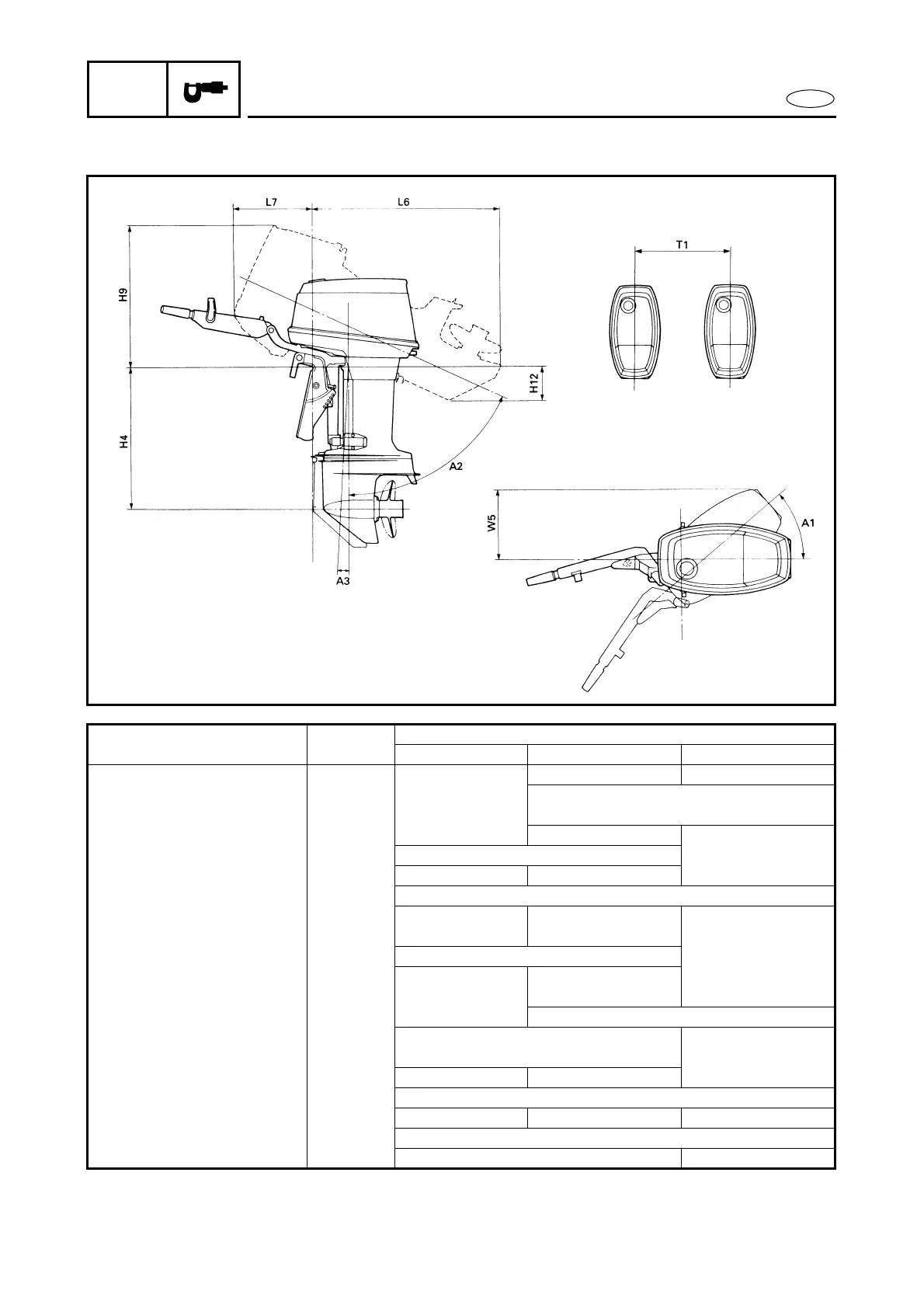

MAINTENANCE SPECIFICATIONS
DIMENSION
*1
: For P60TH/60FEHTO, P75TH/75CEHTO
*2
: Except for P75TH/75CEHTO, 90AEHD
Item Unit
Model
50 hp 60, 70 hp 75, 80, 90 hp
L6 S mm (in) — 868 (34.2) —
L 918 (36.1) 968 (38.1)
X — 1,081 (42.6)
L7 S mm (in) — 403 (15.9) —
L, X 411 (16.2) 457 (18.0)
H4 S mm (in) — 400 (15.7) —
L 520 (20.5)
X — 648 (25.5) 647 (25.5)
H9 S mm (in) — 719 (28.3) —
L, X 706 (27.8) 730 (28.7)
H12 S mm (in) — 135 (5.3) —
L 204 (8.0) 205 (8.1) 203 (8.0)
X — 264 (10.4)
W5 mm (in) 321 (12.6) 331 (13.0)
A1 degree 35 30
A2 S degree — 63 —
L, X 67, 62
*1
A3 S degree — 0 —
L, X 4
T1 mm (in) — 600 (23.6)
*2
