Yamaha 60F - EXPLODED DIAGRAM (Long Transom [6 H1-15], [62 F-02])

7-20
E
BRKT
POWER TRIM AND TILT UNIT

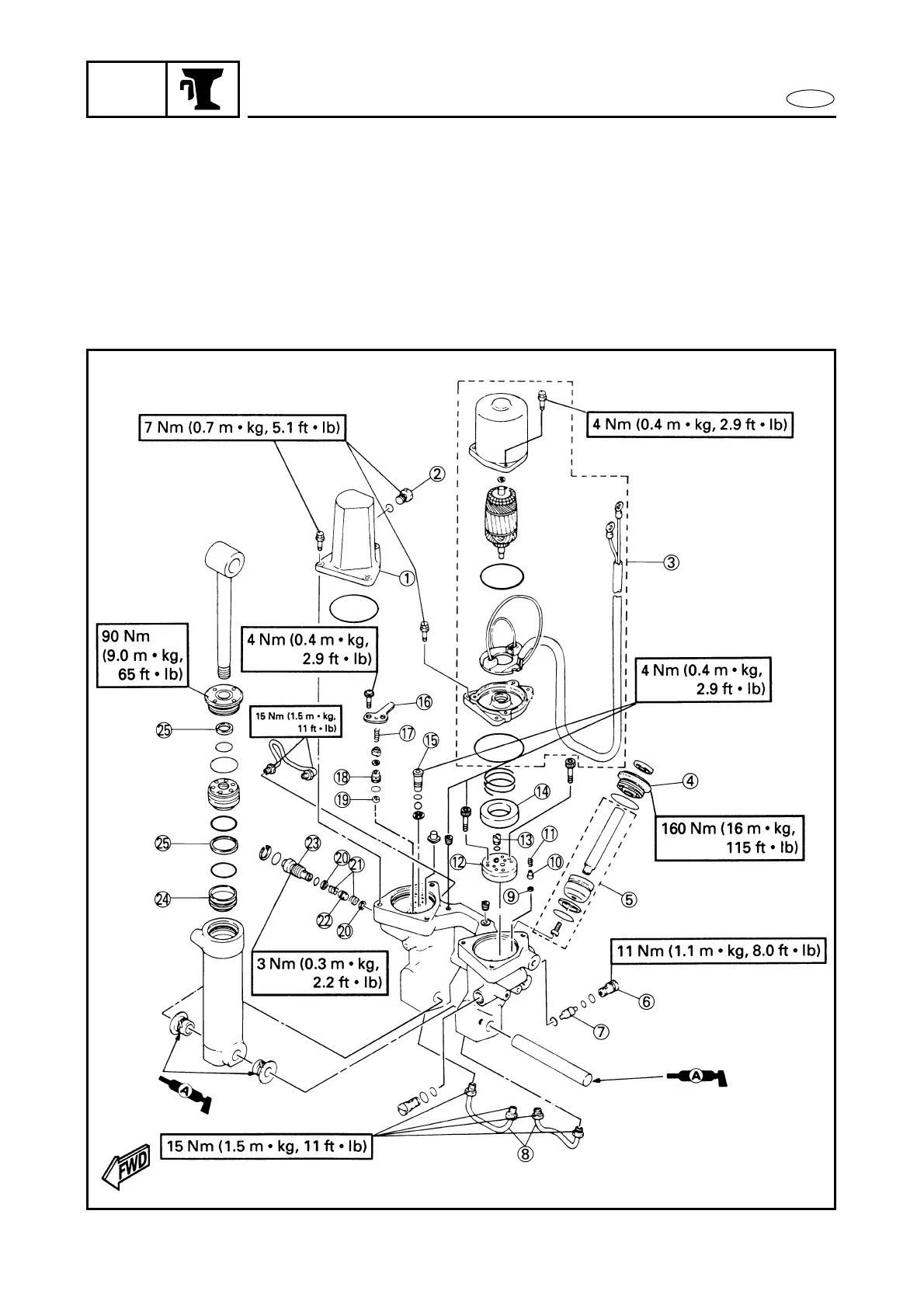

EXPLODED DIAGRAM (Long transom [6H1-15], [62F-02])
1 Reservoir body
2 Reservoir plug
3 Motor assembly
4 Trim cylinder end screw
5 Trim piston assembly
6 Main valve assembly
7 Shuttle piston
8 Pipe
9 Main valve seal
0 Valve support pin
A Down relief spring
B Gear pump assembly
C Shaft connector
D Filter 1
E Valve lock screw
F Trim spring
G Up relief spring
H Up relief valve seat
I Filter 2
J Manual valve seat
K Manual release spring
L Adapter
M Manual release screw
N Free piston
O Back up ring
