POWER TRIM AND TILT UNIT

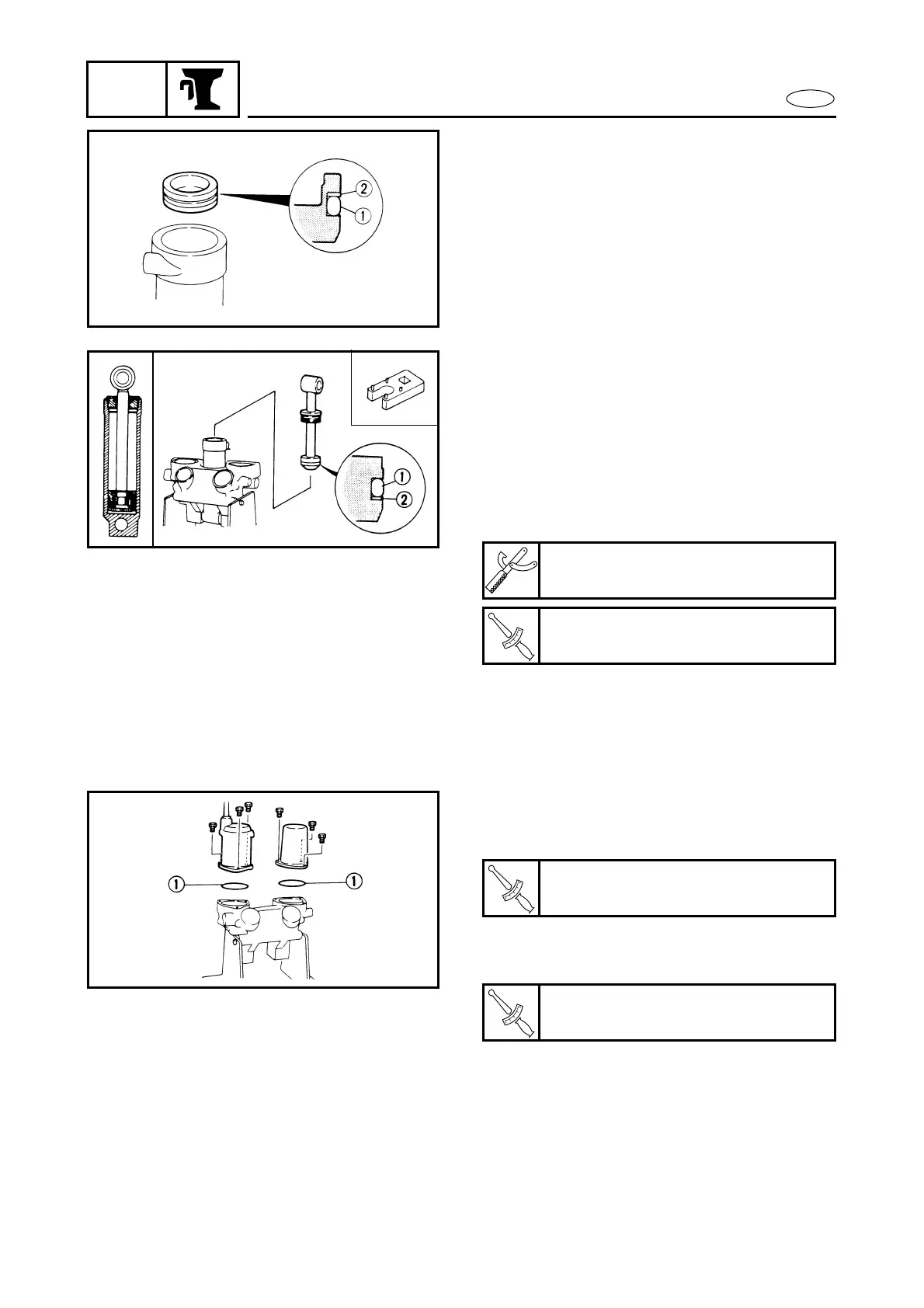

7. Fit a new O-ring and the back-up ring on
the free-piston and install it into the cyl-
inder.
1 O-ring
2 Back-up ring
8. Fit a new O-ring and the back-up ring to
the tilt-piston and install it into the cylin-
der.
Fill the cylinder with hydraulic fluid and
tighten the end-screw to the specified
torque.
1 O-ring
2 Back-up ring
Cylinder end screw wrench:
YB-6175-2B/90890-06544
T
R
.
.
Tilt cylinder end screw:
80 Nm (8.0 m • kg, 58 ft • lb)
9. Align the connector-shaft keyway with
the motor-shaft projection and install
the motor with new O-ring.
10. Install the hydraulic-fluid reservoir with
new O-ring.
1 O-ring
11. Air bleeding. Refer to page 7-28.
T
R
.
.
Bolt (tilt motor):
4 Nm (0.4 m • kg, 2.9 ft • lb)
T
R
.
.
Bolt (reservoir body):
6 Nm (0.6 m • kg, 4.3 ft • lb)
