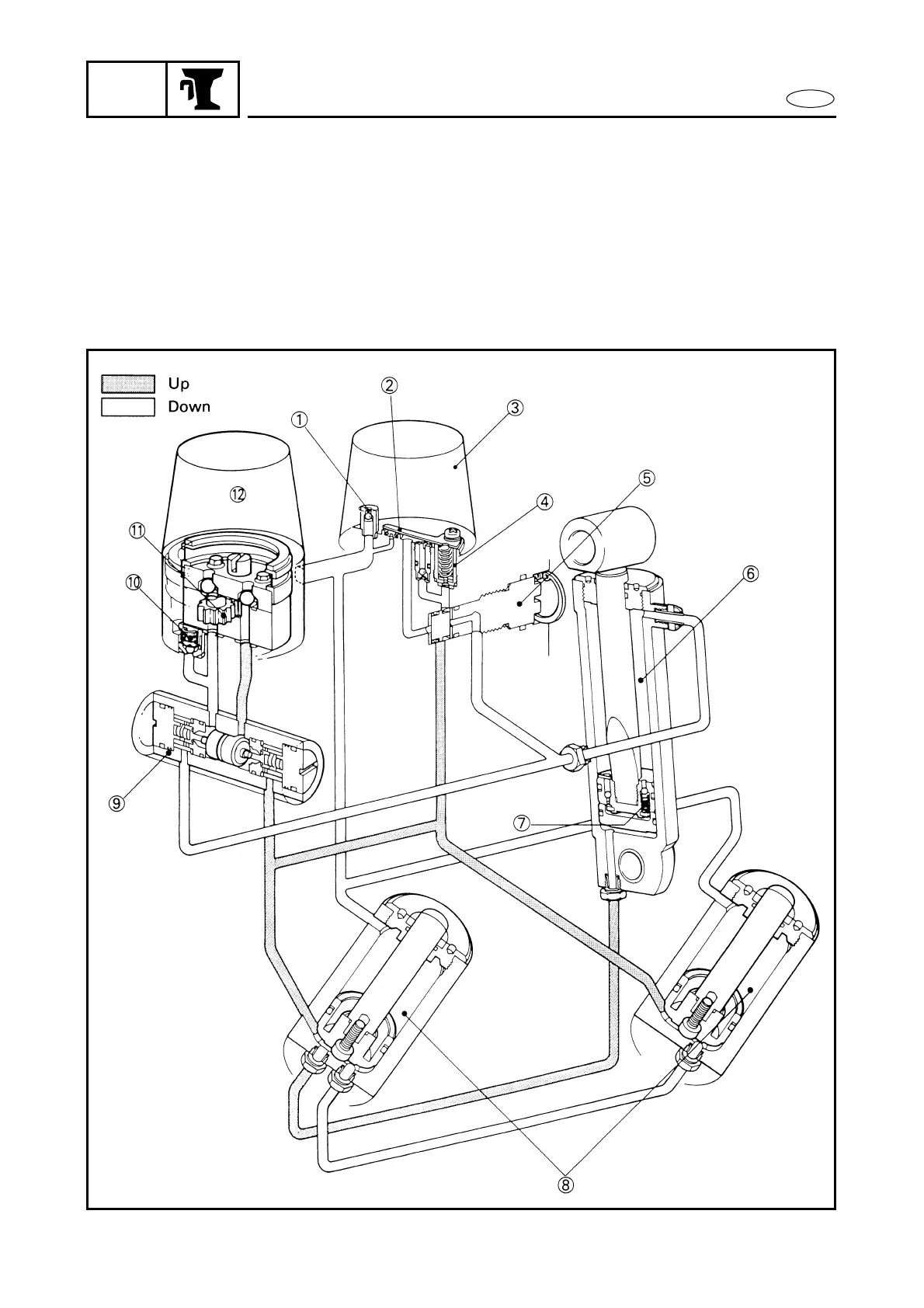

POWER TRIM AND TILT UNIT
1 Trim down valve (0.2 kg/cm
2
)
2 Trim down valve (1 kg/cm
2
)
3 Reservoir
4 Up-relief valve (100 kg/cm
2
)
5 Manual valve
6 Tilt cylinder
7 Absorber valve (180 kg/cm
2
)
8 Trim cylinder
9 Main valve (0.5 kg/cm
2
)
0 Down-relief valve (30 kg/cm
2
)
A Gear pump
B Power trim and tilt motor
