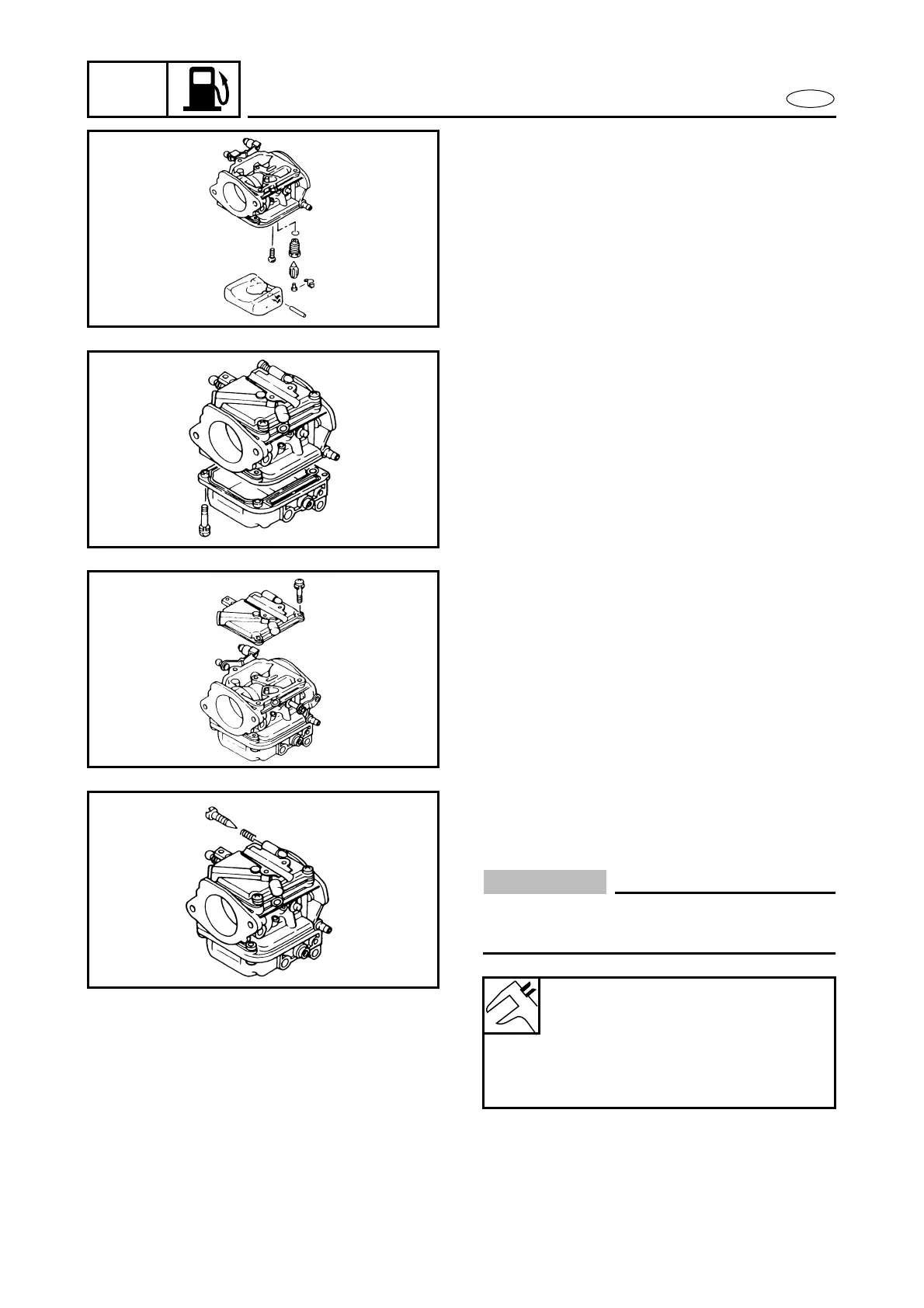

6. Install the needle-valve on the float,
attach the float to the carburetor body
with the float-pin and tighten the screw.
7. Install a new O-ring to the float-cham-
ber, install it to the carburetor body and
secure with the screws.
8. Install the plate with new packing and
secure with the screws.
9. Install the pilot-screw with its spring,
screw it in until seated then screw it out
the specified number of turns.
CAUTION:
Do not cause damage to the tip of the pilot
screw by over-tightening it.
Pilot screw [stamped mark]:
62F00, 6H210, 6H007, 6H015:
1-3/8 ± 1/4 turns out
6H20A: 1-1/2 ± 1/4 turns out
6H30A, 6H107:
1-1/4 ± 1/4 turns out
