Yamaha F100A - Page 126

4-10
E
FUEL
INTAKE ASSY.

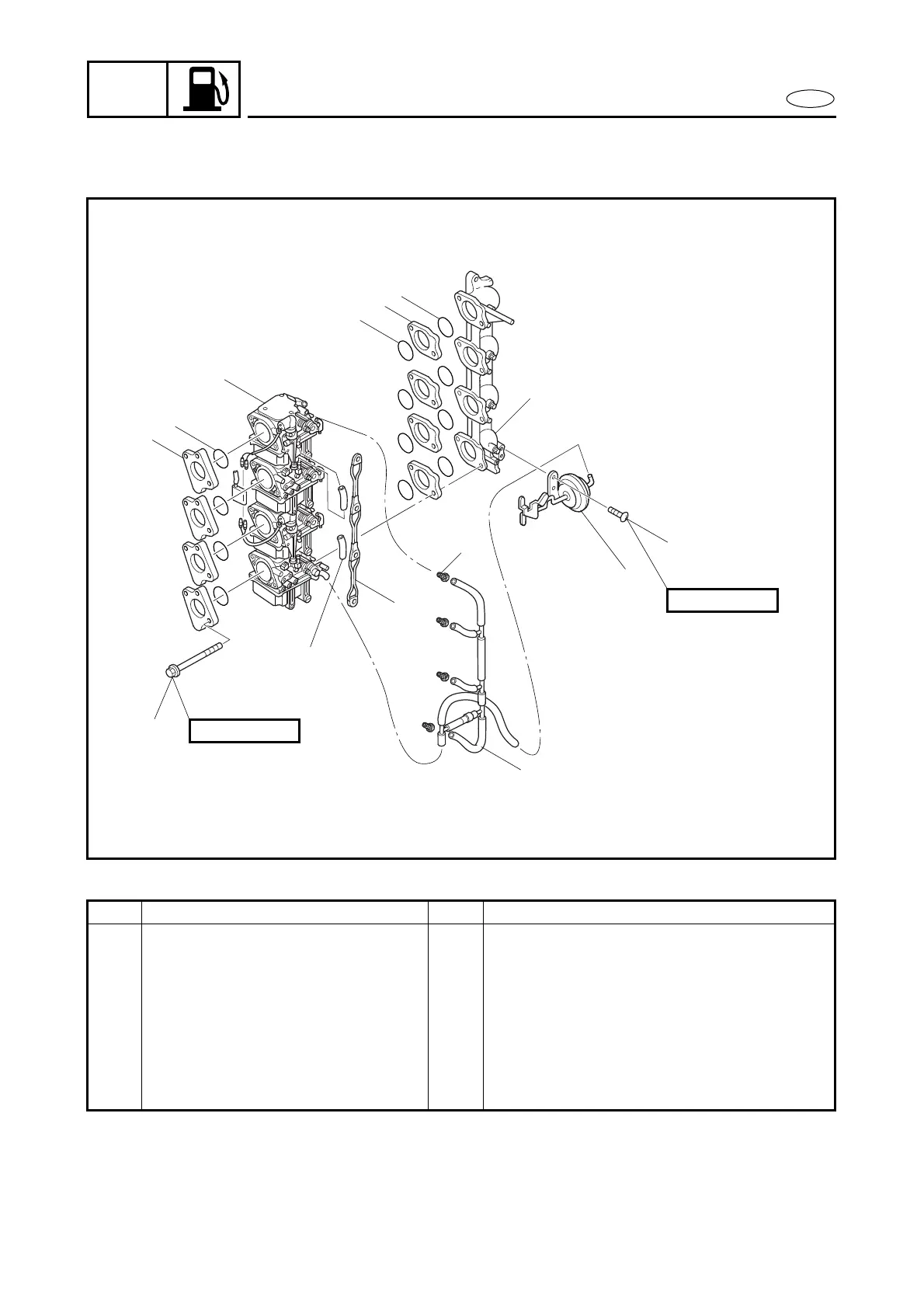

EXPLODED DIAGRAM
1
5
10
11
12
2
3
6
7
13
4
8
6 × 115 mm
6 × 10 mm
9
14
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
INTAKE ASSY. DISASSEMBLY Follow the left “Step” for removal.
Control unit Refer to “CONTROL UNIT”.
1 Link lever 1
2 Screw 2
3 Accelerator pump 1
4 Accelerator pump pipe assy. 1
5 Bolt 8
6 Spacer 4
