CHK
ADJ
3-18
POWER TRIM AND TILT SYSTEM
E
POWER TRIM AND TILT SYSTEM

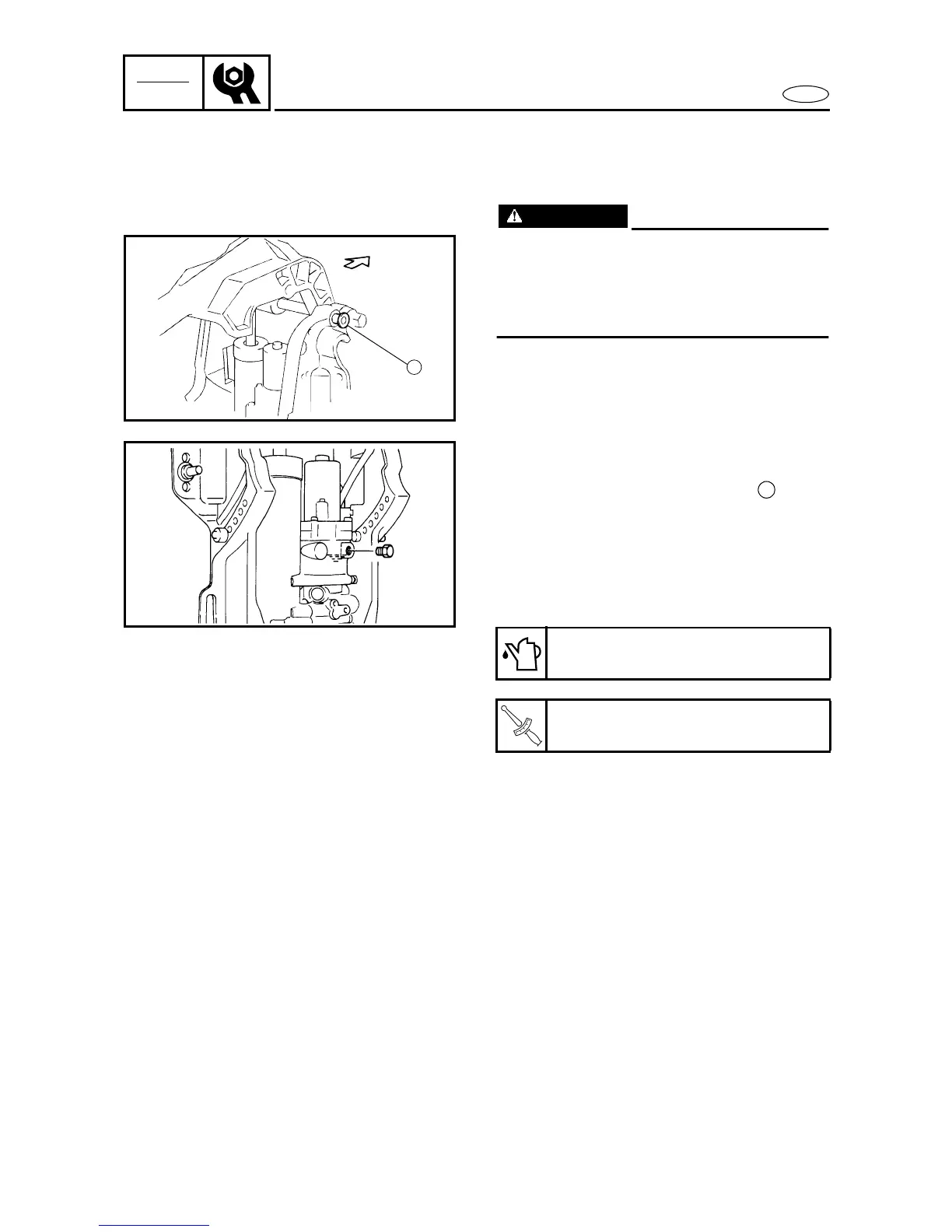

CHECKING THE POWER TRIM AND
TILT FLUID LEVEL
WARNING
To prevent the hydraulic fluid from spurting
out due to internal pressure, the outboard
should be kept fully tilted up (the tilt ram at
full length) while slowly removing the plug
screw.
1. C h e ck:
• Power trim and tilt fluid level
Level is low → Add power trim and
tilt fluid to the proper level.
Checking steps
(1) Tilt the outboard all the way up and
lock it with the tilt stop levers .
(2) Remove the plug screw.
(3) Check that the fluid level is directly
below the fluid level checking hole.
2. Add:
• Power trim and tilt fluid
1
Recommended hydraulic fluid
ATF Dexron II
T
R
.
.
Plug screw
7 Nm (0.7 m
•
kgf, 5.2 ft
•
lb)
1
To Next Page
