TIGHTENING TORQUES
2-17
E
SPEC
GENERAL TORQUES
This chart specifies tightening torques for
standard fasteners with a standard ISO
thread pitch. Tightening torque specifica-
tions for special components or assemblies
are provided in applicable sections of this
manual. To avoid warpage, tighten multi-
fastener assemblies in a crisscross fashion
and progressive stages until the specified
tightening torque is reached. Unless other-
wise specified, tightening torque specifica-
tions require clean, dry threads.
Components should be at room tempera-
ture.

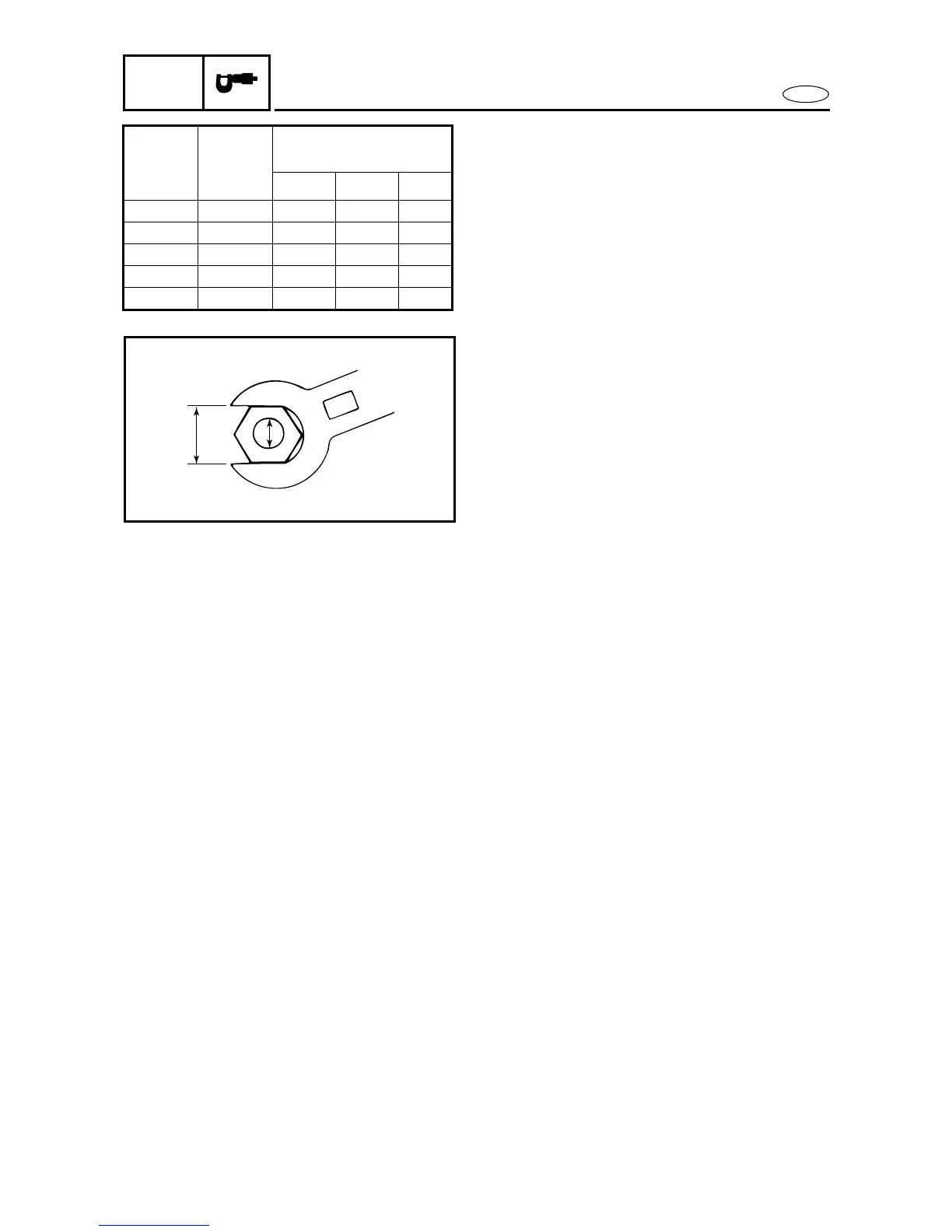

Nut (A) Bolt (B)
General torque
specifications
Nm m
•
kgf ft
•
lb
8 mm M5 5 0.5 3.7
10 mm M6 8 0.8 5.9
12 mm M8 18 1.8 13
14 mm M10 36 3.6 27
17 mm M12 43 4.3 32
B
A
