GEAR PUMP ASSEMBLY
7-31
E
BRKT
GEAR PUMP ASSEMBLY

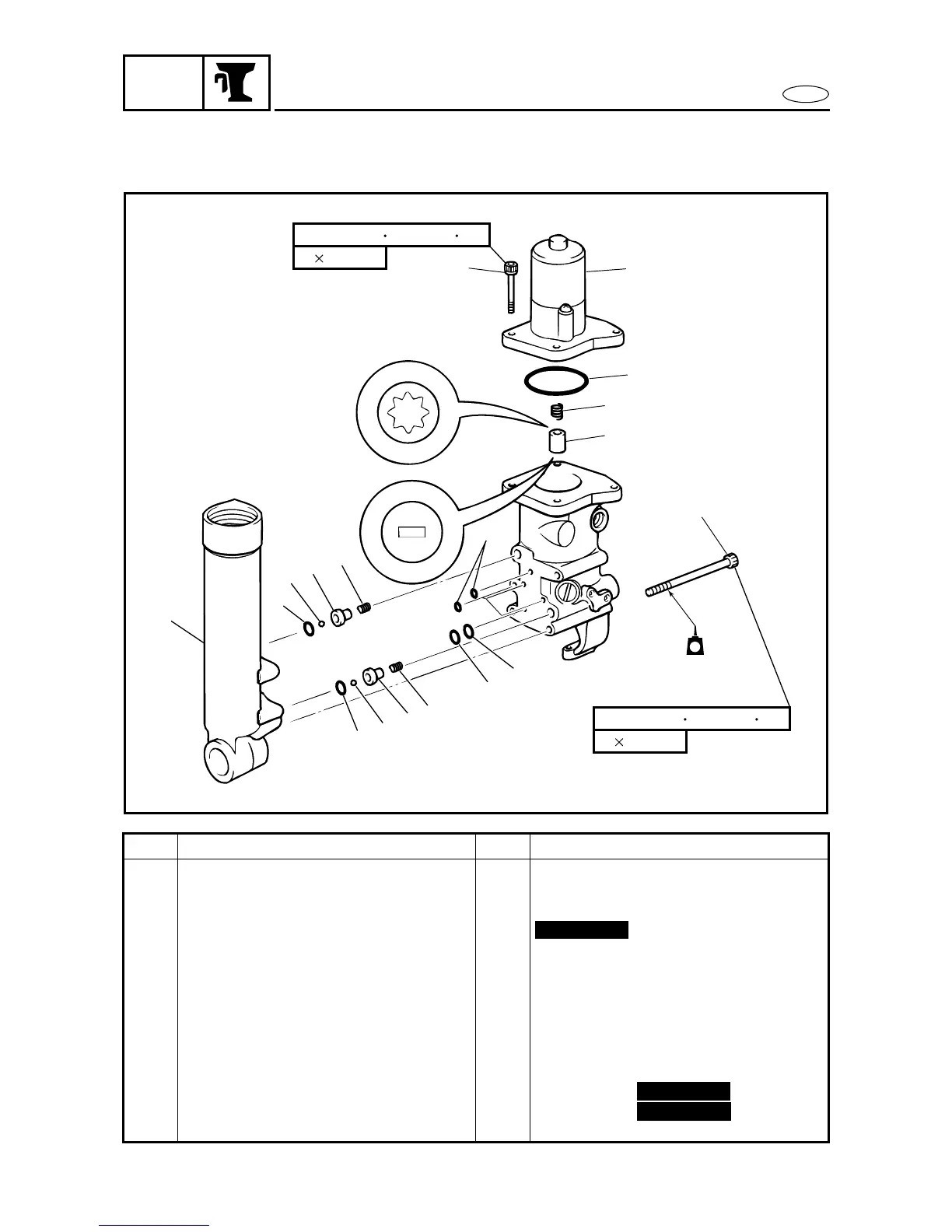

DISASSEMBLING/ASSEMBLING THE GEAR PUMP ASSEMBLY
2
3
4
5
1
6
11
13
12
10
9
8
12
7
12
8
9
10
LT
9 Nm(0.9 m kgf, 6.6 ft lb)
6 75 mm
7 Nm(0.7 m kgf, 5.2 ft lb)
6 20 mm
271
Order Job/Part Q’ty Remarks
Gear pump assembly
1Bolt 4
2 Power trim and tilt motor 1
3O-ring 1
Not reusable
4Spring 1
5 Connector shaft 1
6Bolt 3
7 Tilt cylinder 1
8 Ball 2
9 Plunger 2
10 Spring 2
11 O-ring 4 5.5×1.5 mm
12 O-ring 3 10.7×1. 5 m m
Continued on next page.
Not reusable
Not reusable
To Next Page
