Yamaha F40BWHD - Checking the Fuses; Checking the Wire Harness Continuity

STARTING SYSTEM (WHD, ED, ET)
8-22
E
–+
ELEC
CHECKING THE BATTERY
Refer to "CHECKING THE BATTERY" on
page 3-21.

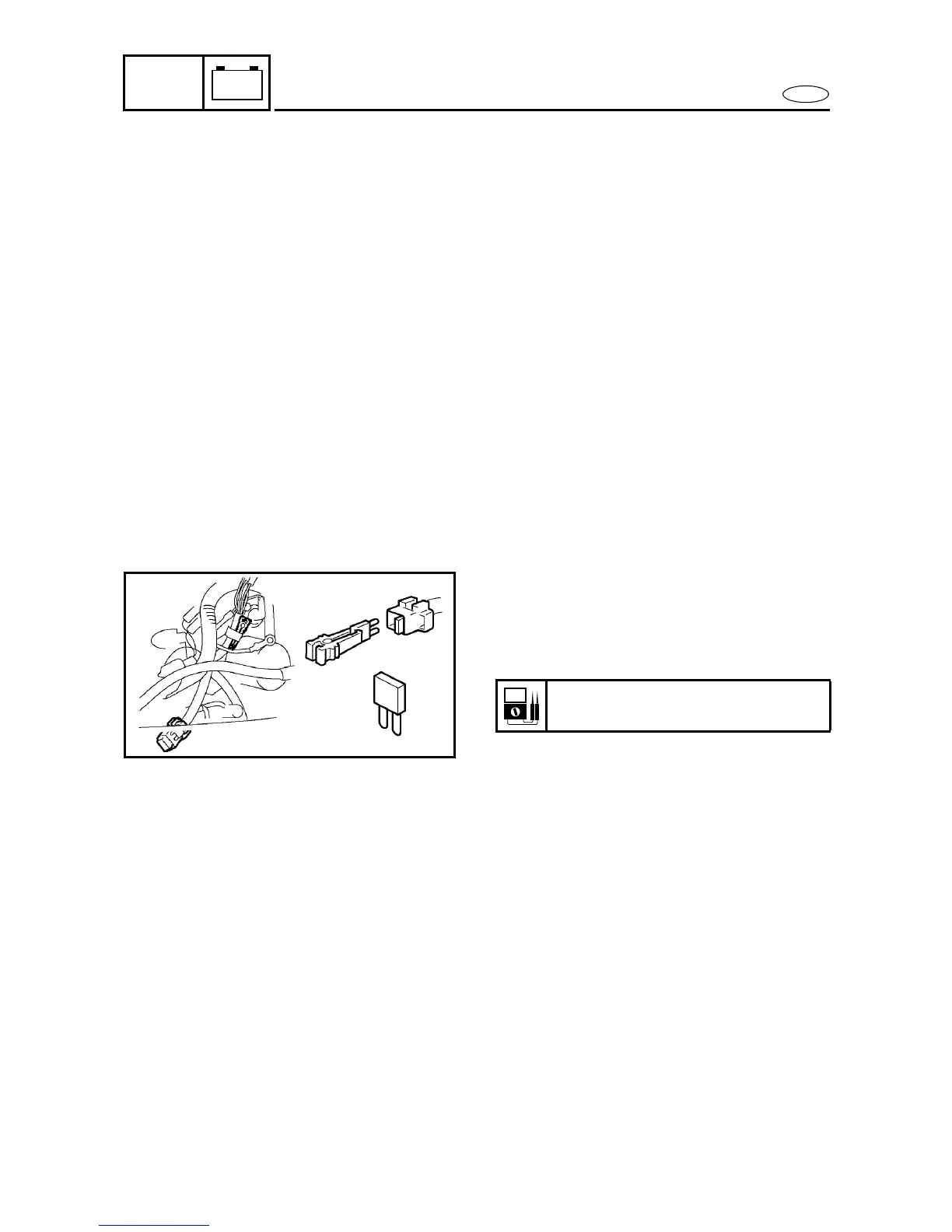

CHECKING THE FUSES
1. C h e ck:
• Fuse holder continuity
No continuity → Check the fuse
holder leads.
2. Check:
• Fuse holder lead continuity
No continuity → Replace the fuse
holder.
Continuity → Check the fuse.
3. Check:
• Fuse continuity
No continuity → Replace.
• Fuse rating
Out of specification → Replace.
CHECKING THE WIRE HARNESS
CONTINUITY
Check:
• Wire harness continuity
No continuity → Replace.
Fuse rating
12 V - 20 A
