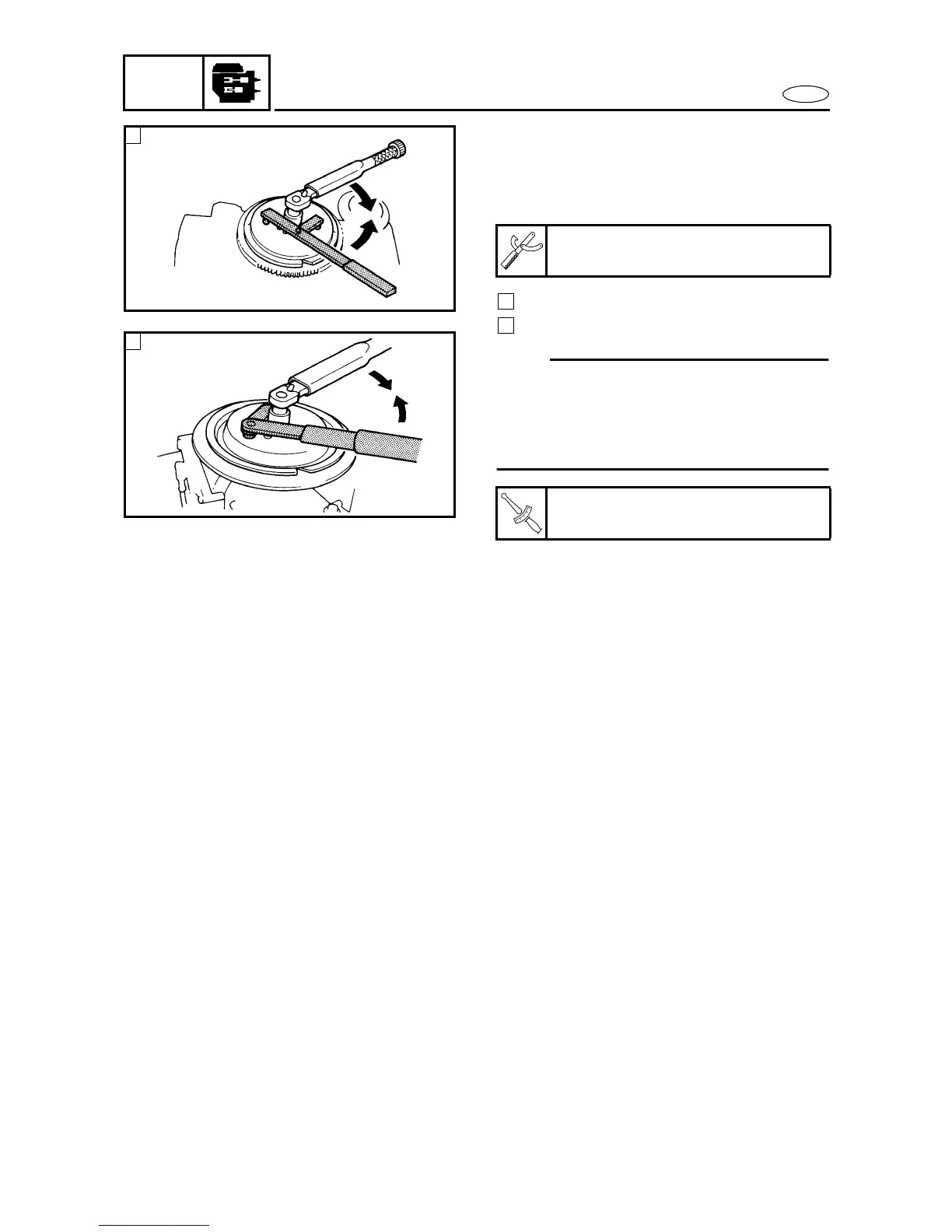

FLYWHEEL MAGNET ASSEMBLY
E
INSTALLING THE FLYWHEEL MAGNET
ASSEMBLY
Install:
• Flywheel magnet assembly nut
A
For USA and Canada
B
Except for USA and Canada
NOTE:
The major load should be applied in the
direction of the arrows. If the load is not
applied as shown, the flywheel magnet
assembly holder may easily slip off of the
flywheel magnet assembly.
A
B
Flywheel magnet assembly holder
YB-06139/90890-06522
T
R
.
.
Flywheel magnet assembly nut
157 Nm (16.0 m
•
kgf, 116 ft
•
lb)
