LOWR

6-19

LOWER CASE ASSEMBLY

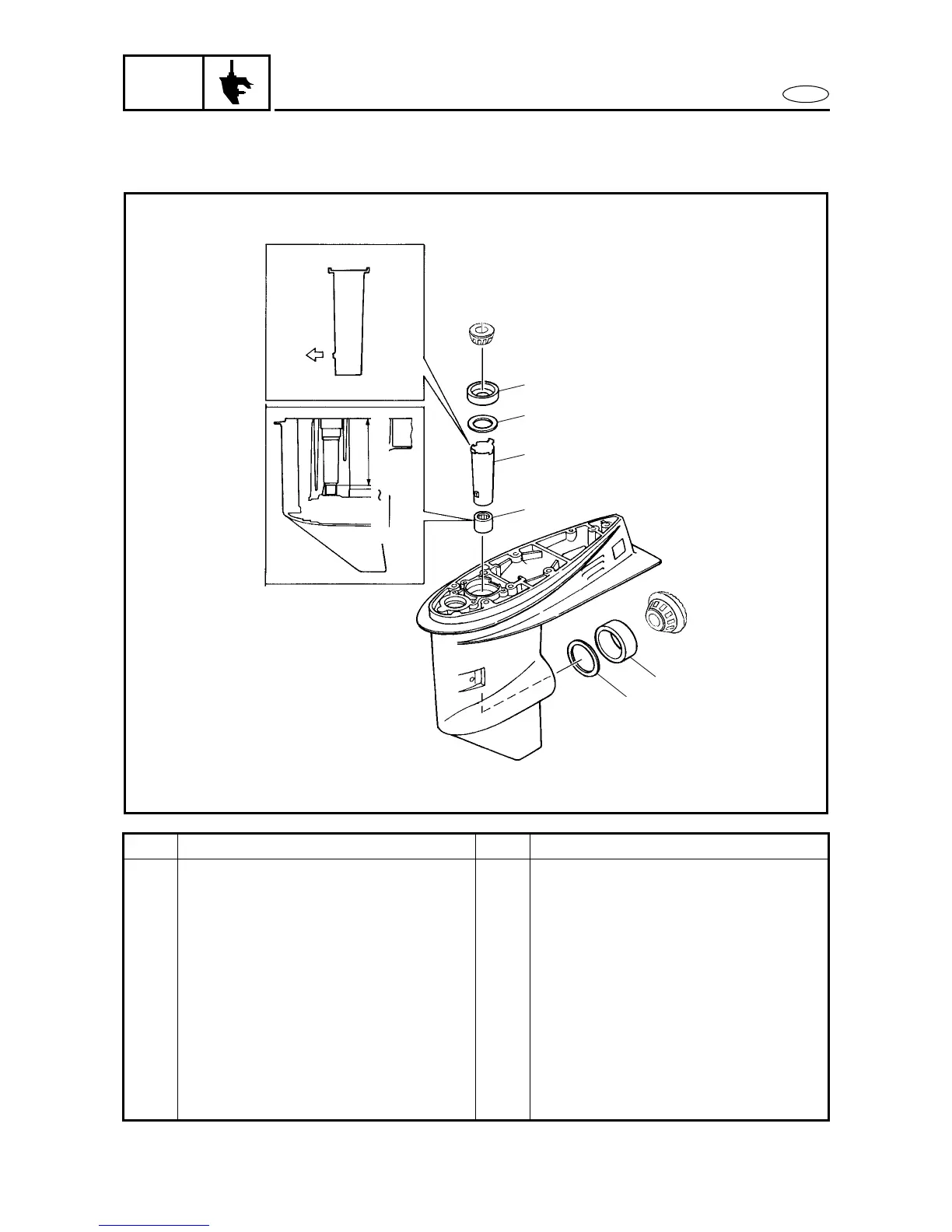

DISASSEMBLING/ASSEMBLING THE LOWER CASE ASSEMBLY

* As required

182.5 183.0 mm

Order Job/Part Q’ty Remarks

1 Drive shaft bearing outer race 1

2 Pinion gear shim *

3 Drive shaft sleeve 1

4 Needle bearing 1

5 Tapered roller bearing outer race 1

6 Forward gear shim *

For assembly, reverse the disassembly

procedure.
