Yamaha F40BWHD - Checking the Bearing; Checking the Reverse Gear

LOWR
6-11
PROPELLER SHAFT HOUSING ASSEMBLY
E

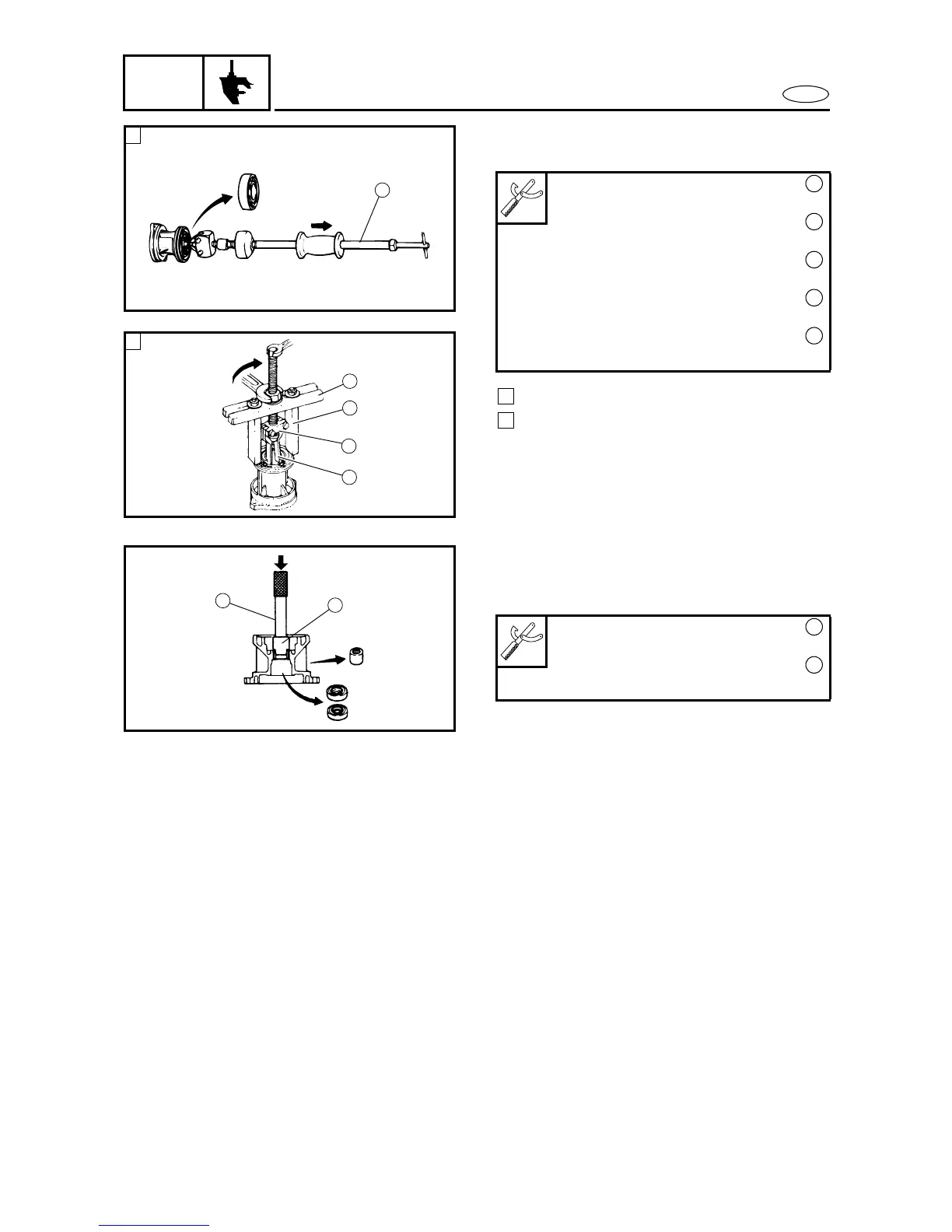

2. Remove:
• Ball bearing
A
For USA and Canada
B
Except for USA and Canada
3. Remove:
• Oil seal
• Needle bearing
CHECKING THE REVERSE GEAR
Check:
•Teeth
•Dogs
Wear/damage → Replace the
reverse gear.
CHECKING THE BEARING
Check:
• Bearing
Pitting/rumbling → Replace.
CHECKING THE PROPELLER SHAFT
HOUSING ASSEMBLY
Check:
• Propeller shaft housing assembly
Cracks/damage → Replace.
A
1
B
2
3
4
5
Slide hammer................................
YB-06096/90890-06531
Guide plate....................................
90890-06501
Guide plate stand .........................
90890-06538
Bearing puller................................
90890-06535
Small universal claws...................
90890-06536
1
2
3
4
5
1
2
Driver rod.......................................
YB-06071/90890-06652
Bearing/oil seal attachment ........
YB-06112/90890-06614
1
2
