CHK
ADJ
3-2
TOP COWLING/FUEL SYSTEM
E
TOP COWLING

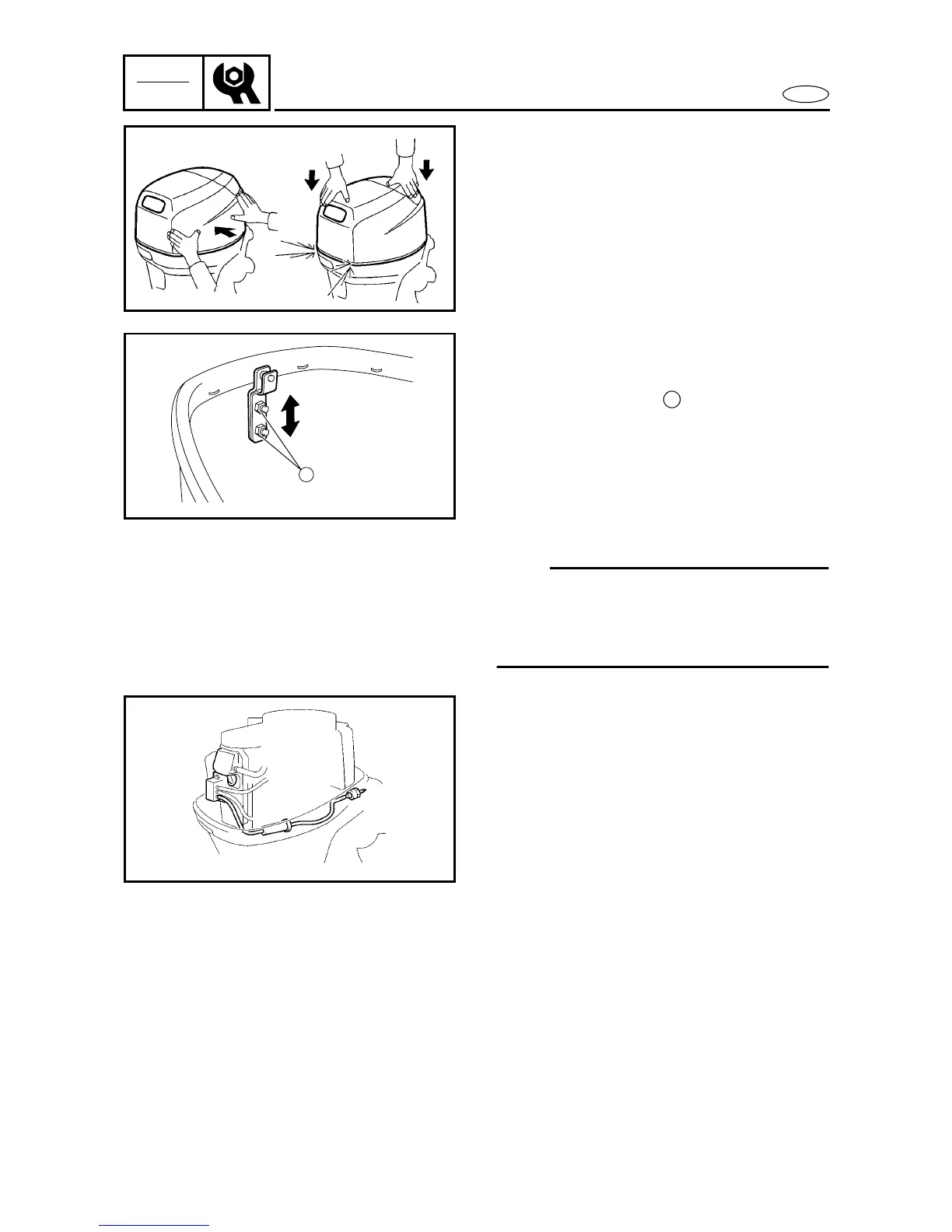

CHECKING THE TOP COWLING FIT
1. C h e ck:
• Top cowling fitting
Loose/unlatched → Adjust the top
cowling hook.
2. Adjust:
• Top cowling hook position
Adjustment steps
(1) Loosen the nuts approximately 1/4
of a turn.
(2) Move the top cowling hook either up or
down slightly.
(3) Secure the bolts.
(4) Check the top cowling fitting and repeat
the adjustment if necessary.
NOTE:
• Moving the latch towards the seal will
loosen the top cowling.
• Moving the latch away from the seal
will tighten the top cowling.
FUEL SYSTEM
CHECKING THE FUEL LINE
Check:
• Fuel line
Cracks/damage/leaks → Replace.
Refer to "FUEL JOINT, FUEL FILTER,
AND FUEL PUMP" on page 4-2.
1
1
To Next Page
