CYLINDER HEAD

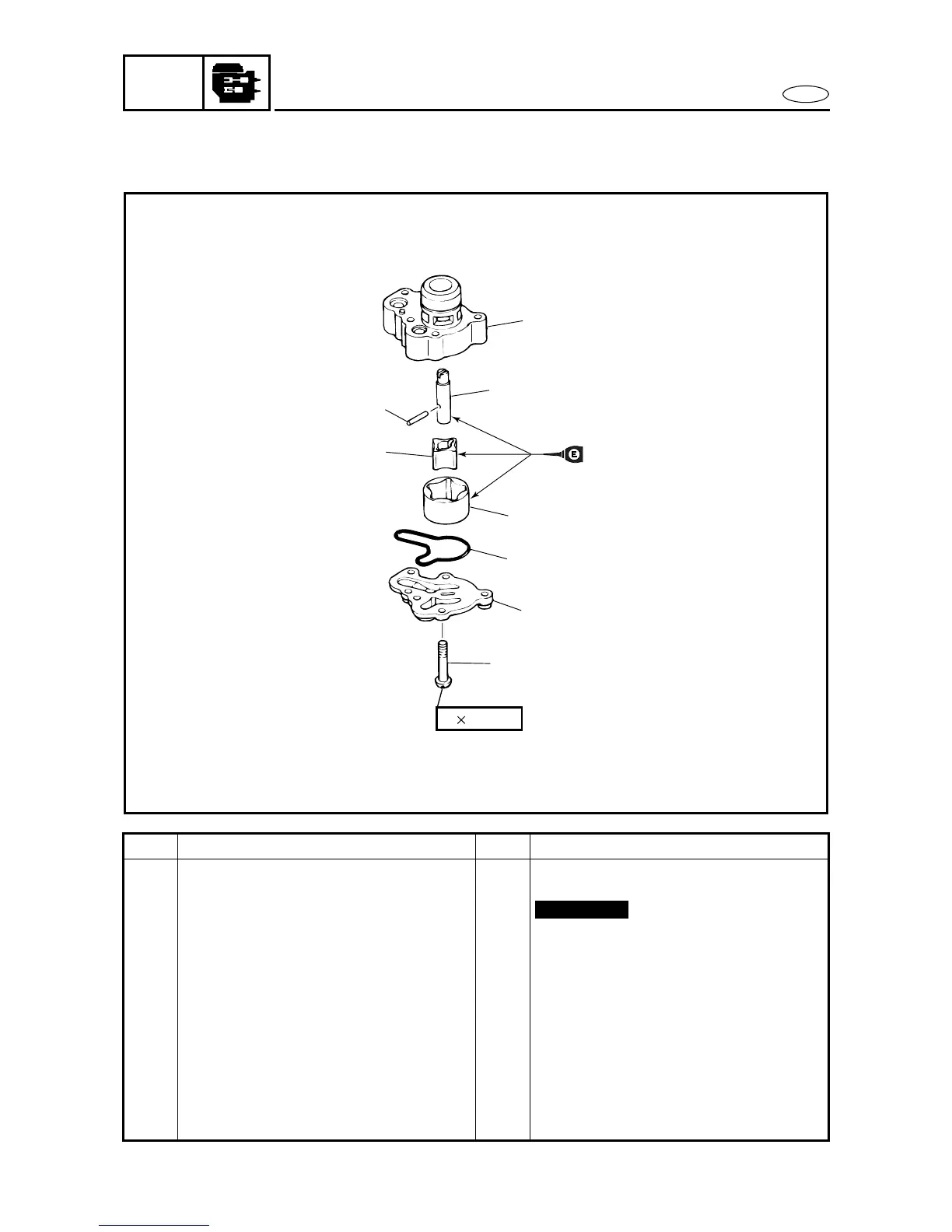

DISASSEMBLING/ASSEMBLING THE OIL PUMP

6 20 mm

Order Job/Part Q’ty Remarks

1 Screw 2

2 Cover 1

3 Packing 1

Not reusable

4 Inner rotor 1

5 Outer rotor 1

6 Drive shaft 1

7 Drive pin 1

8 Housing 1

For assembly, reverse the disassembly

procedure.
