Yamaha F40BWHD - Disassembling;Assembling the Link Assembly

BRKT
7-6
TILLER HANDLE ASSEMBLY
E

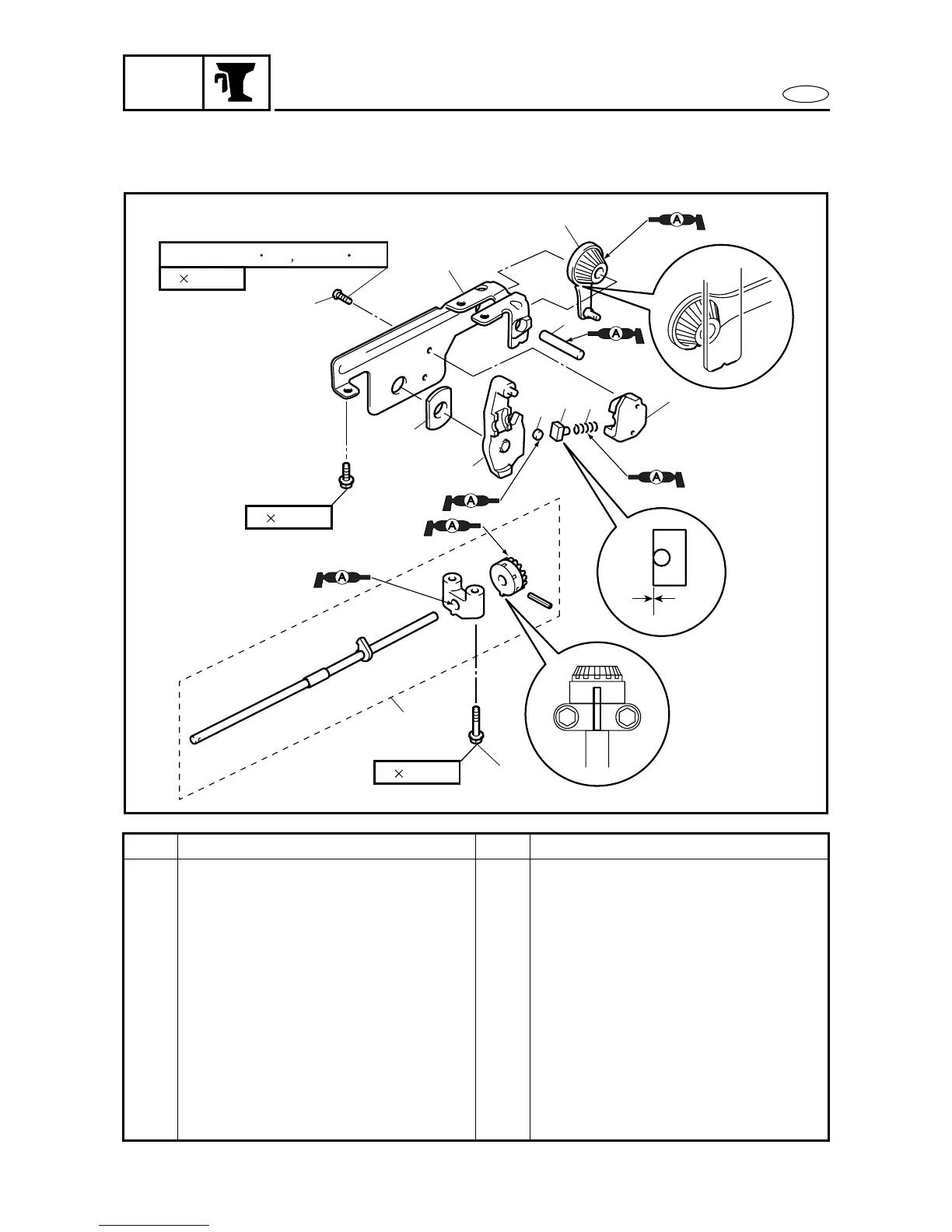

DISASSEMBLING/ASSEMBLING THE LINK ASSEMBLY
1
2
3
4
5
6
7
8
9
4 Nm (0.4 m kgf 2.9 ft lb)
10
11
12
0 mm
6 14 mm
6 30 mm
5 10 mm
Order Job/Part Q’ty Remarks
1 Screw 2
2 Throttle shaft assembly 1
3 Throttle arm shaft 1
4 Throttle arm 1
5 Screw 2
6 Spring guide 1
7Roller 1
8Actuator 1
9Spring 1
10 Cam plate 1
11 B u s h i n g 1
12 Frame 1
For assembly, reverse the disassembly
procedure.
