Yamaha F40BWHD - Removing;Installing the Stator Assembly; Stator Assembly

POWR
5-15
STATOR ASSEMBLY
E
STATOR ASSEMBLY

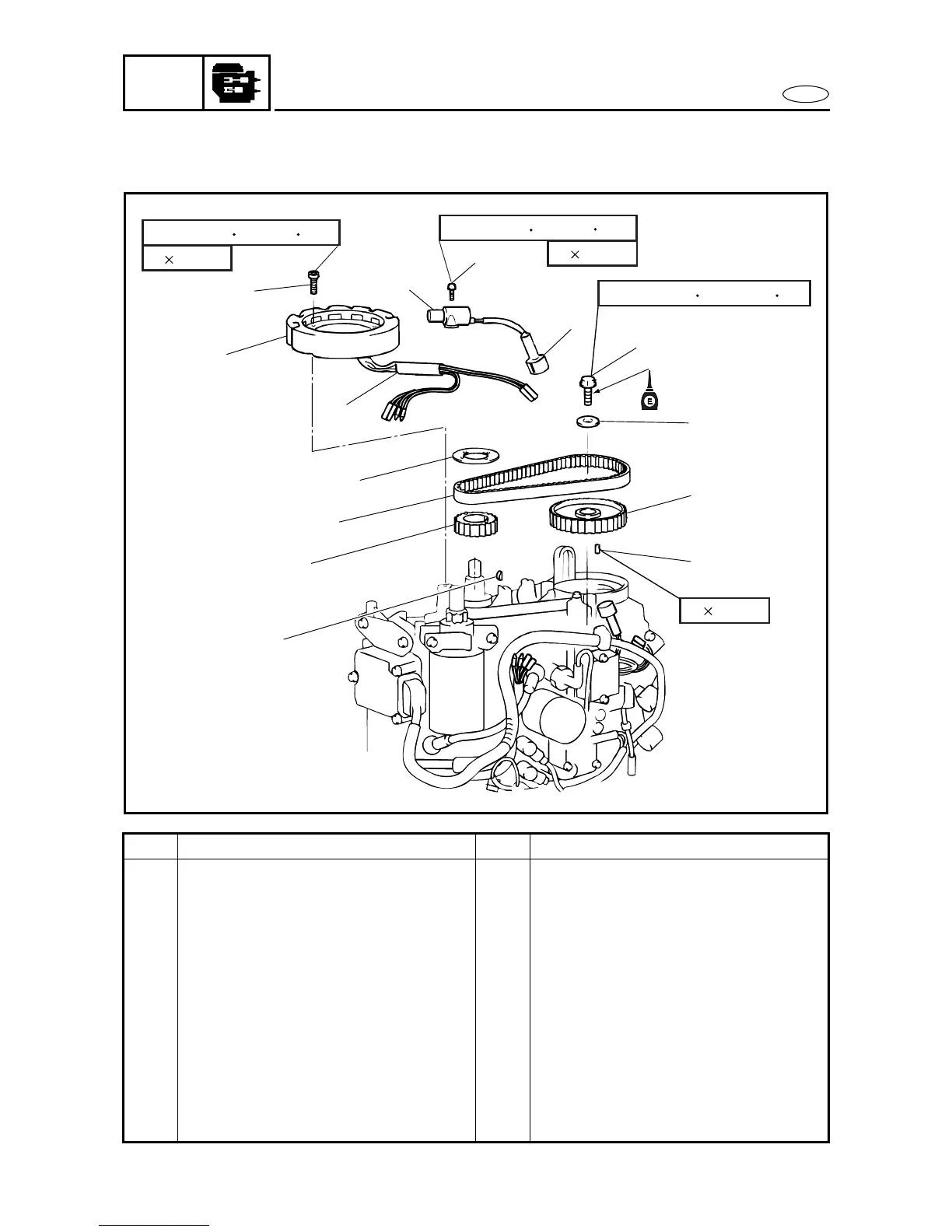

REMOVING/INSTALLING THE STATOR ASSEMBLY
2
6
5
4
11
12
13
14
1
7
3
8
9
10
38 Nm(3.8 m kgf, 28.0 ft lb)
6 Nm(0.6 m kgf,4.4ft lb)
5 30 mm
5 Nm(0.5 m kgf,3.7ft lb)
5 15 mm
5 14 mm
Order Job/Part Q’ty Remarks
1 Stator connector 1
2Bolt 3
3 Stator 1
4 Pulser coil coupler 1
5Bolt 2
6 Pulser coil 1
7 Plate 1
8 Timing belt 1
9 Drive sprocket 1
10 Woodruff key 1
11 B o l t 1
12 Washer 1
13 Driven sprocket 1
Continued on next page.
