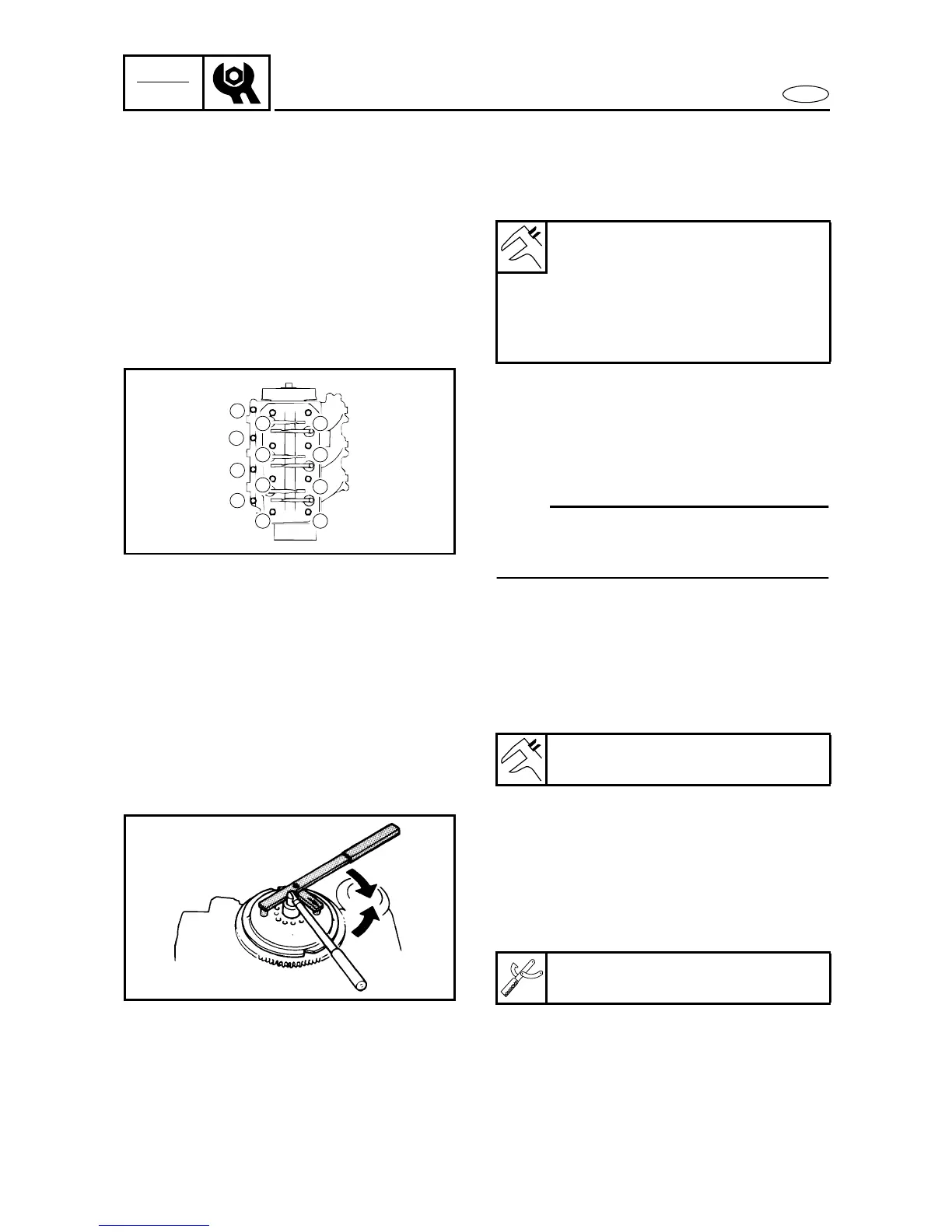

CHECKING BOLTS AND NUTS
1. C h e ck:
• Cylinder head bolts
Out of specification → Tighten.
Checking steps
(1) Remove the cylinder head cover.
(2) Verify the tightening torque of cylinder
head bolts.
NOTE:
If any one of the bolts was found to be out
of specification, re-tighten all the bolts in
the specified order to the specified torque.
2. Check:
• Flywheel magnet nut
Out of specification → Tighten.
Checking steps
(1) Remove the flywheel magnet assem-
bly cover (the manual starter assembly
cover).
(2) Verify the tightening torque of flywheel
magnet nut.
9
5
1
4
8
6
2
3
7
11
10
12
Tightening torque
9
×
××
×
95mm bolts
1st: 22.6Nm (2.3m
•
kgf, 17ft
•
lb)
2nd:46.1Nm (4.6m
•
kgf, 34ft
•
lb)
6
×
××
×
25mm bolts
1st: 6Nm (0.6m
•
kgf, 4.4ft
•
lb)
2nd:11.8Nm (1.2m
•
kgf, 8.7ft
•
lb)
Tightening torque
157Nm(16.0m
•
kgf, 116ft
•
lb)
Flywheel magnet assembly holder
YB-06139 / 90890-06522
