FUEL
4-8
CARBURETOR
E
CARBURETOR

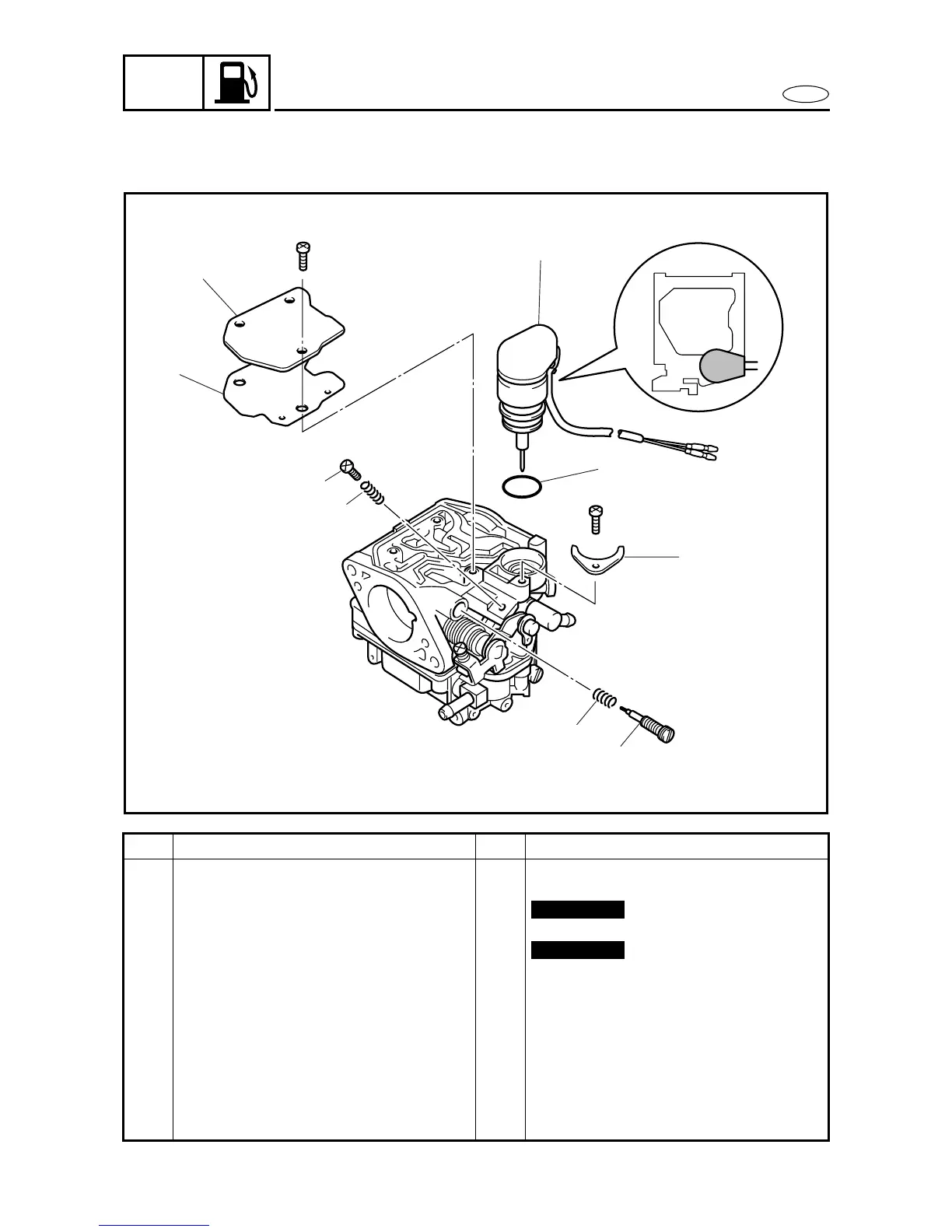

DISASSEMBLING/ASSEMBLING THE CARBURETOR ASSEMBLY 1
1
2
3
4
5
6
7
8
9
Step Job/Part Q’ty Remarks
1 Thermo heater plunger retainer 1
2 Thermo heater plunger 1
3O-ring 1
Not reusable
4 Carburetor top cover 1
5 Gasket 1
Not reusable
6 Throttle stop screw 1 #3 only
7 Spring 1 #3 only
8 Pilot screw 1
9Spring 1
1
For assembly, reverse the disassembly
procedure.
To Next Page
