Yamaha F40BWHD - Checking the Power Trim and Tilt Motor Assembly

–+
ELEC
8-39

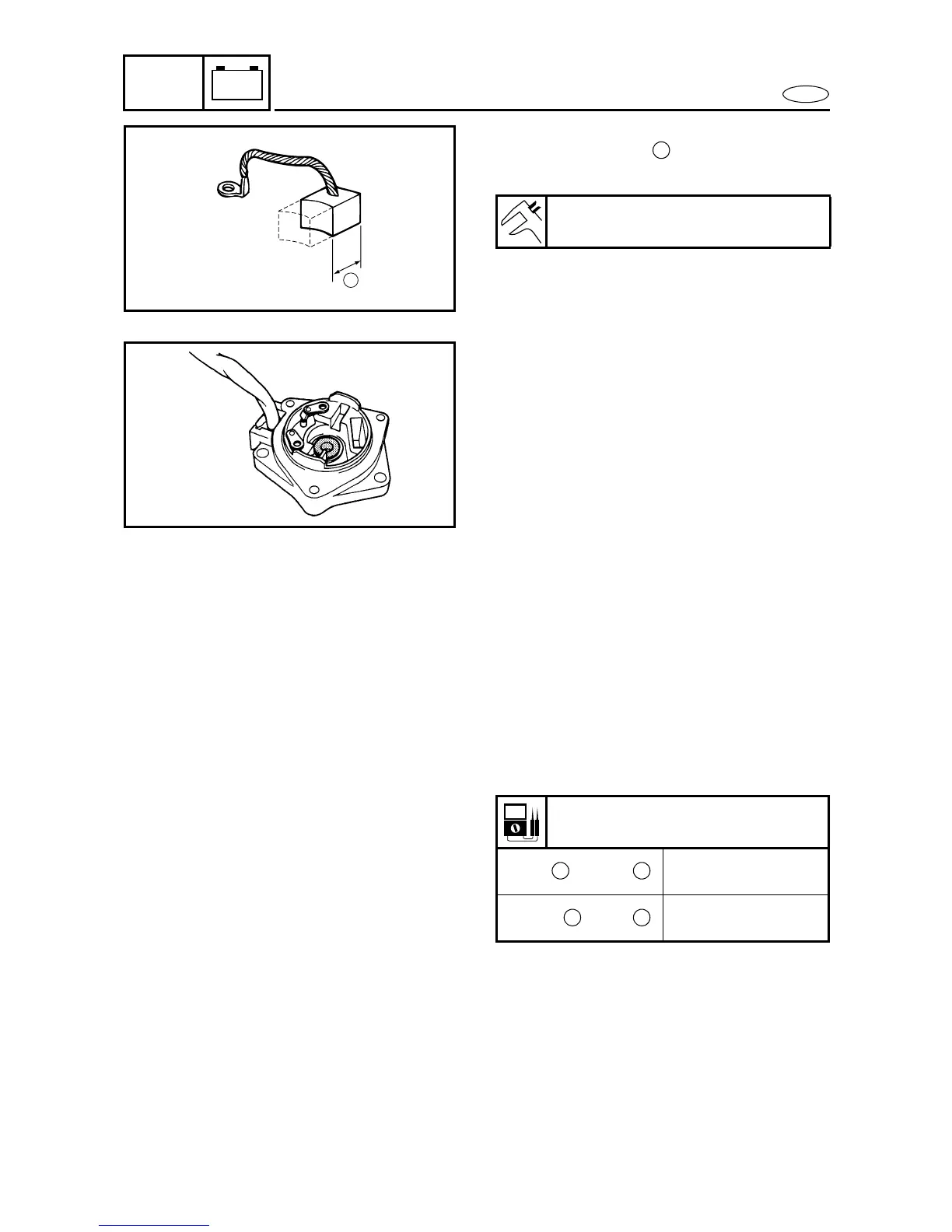

POWER TRIM AND TILT MOTOR (ET)
E
5. Measure:
• Brush length
Out of specification → Replace.
6. Check:
• Power trim and tilt motor base
Cracks/damage → Replace.
7. C h e c k :
• Stator bushing
• Power trim and tilt motor base bush-
ing
Cracks/damage → Replace.
8. Check:
• Power trim and tilt motor base oil
seal
Damage/wear → Replace.
CHECKING THE POWER TRIM AND
TILT MOTOR ASSEMBLY
Check:
• Power trim and tilt motor operation
Incorrect operation → Repair.
a
Brush length limit
3 mm (0.12 in)
a
Power trim and tilt motor operation
Blue , Green
Motor turns
clockwise
Green , Blue
Motor turns
counterclockwise
+
−
+
−
