BRKT
7-10
UPPER CASE ASSEMBLY
E

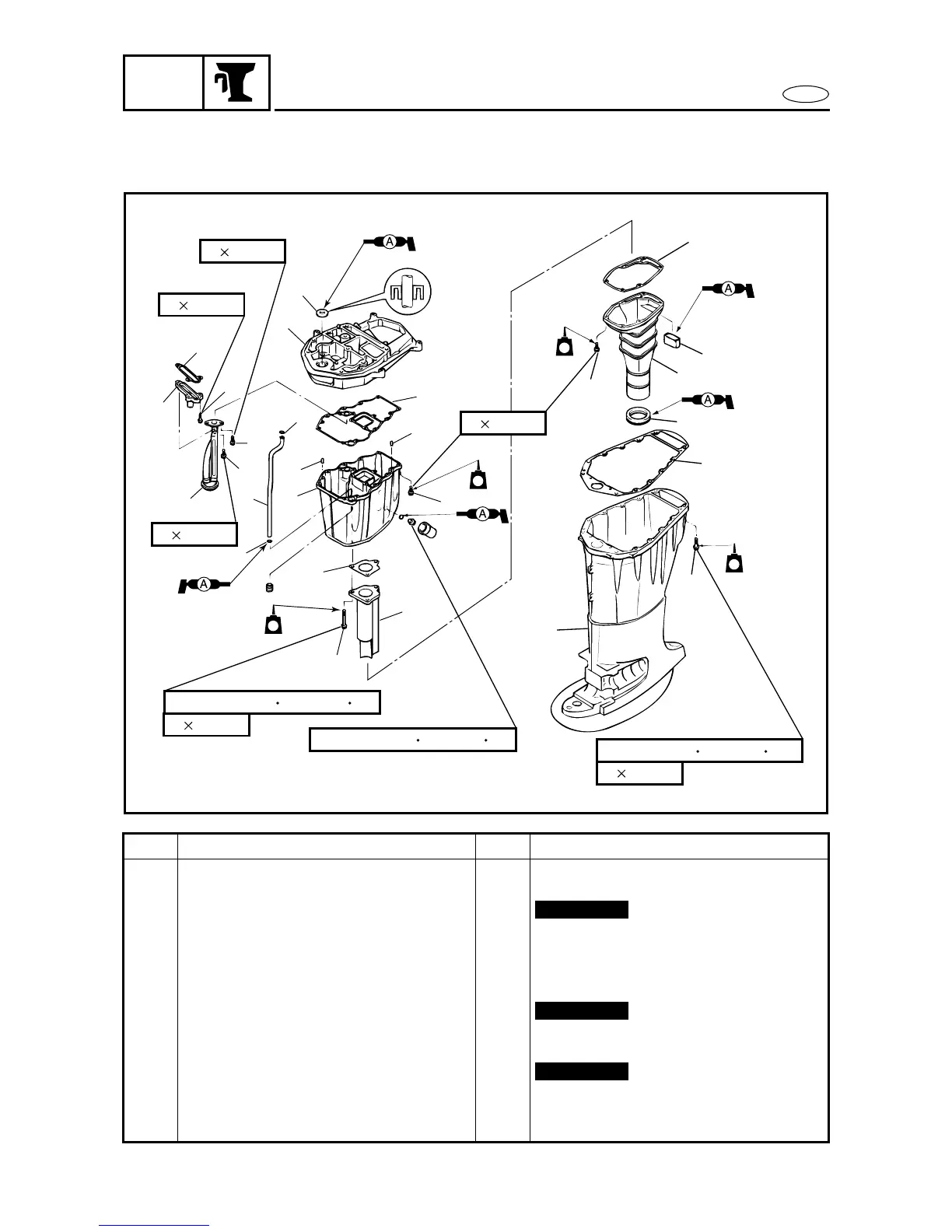

DISASSEMBLING/ASSEMBLING THE UPPER CASE ASSEMBLY
6 16 mm
6 25 mm
6 25 mm
6 45 mm
8 30 mm
10.3 Nm(1.0 m kgf, 7.6 ft lb)
17.2 Nm(1.7 m kgf, 13 ft lb)
21 Nm(2.1 m kgf, 15 ft lb)
LT
572
LT
572
LT
572
LT
572
24
25
23
22
21
18 14
19
15
12
13
20
11
10
9
5
6
4
7
1
2
8
6 25 mm
3
14
16
17
26
Order Job/Part Q’ty Remarks
1Bolt 4
2 Upper case 1
3Gsaket 1
Not reusable
4 Muffler seal 1
5 Rubber seal 1
6Bolt 6
7 Muffler 1
8 Muffler gasket 1
Not reusable
9Bolt 3
10 Exhaust manifold 1
11 Exhaust manifold gasket 1
Not reusable
12 Bolt 10
13 Oil pan 1
Continued on next page.
To Next Page
