CHARGING SYSTEM (WHD, ED, ET)
8-30
E
–+
ELEC
CHECKING THE FUSES
Refer to "CHECKING THE FUSES" on
page 8-22.
CHECKING THE BATTERY
Refer to "CHECKING THE BATTERY" on
page 3-21.

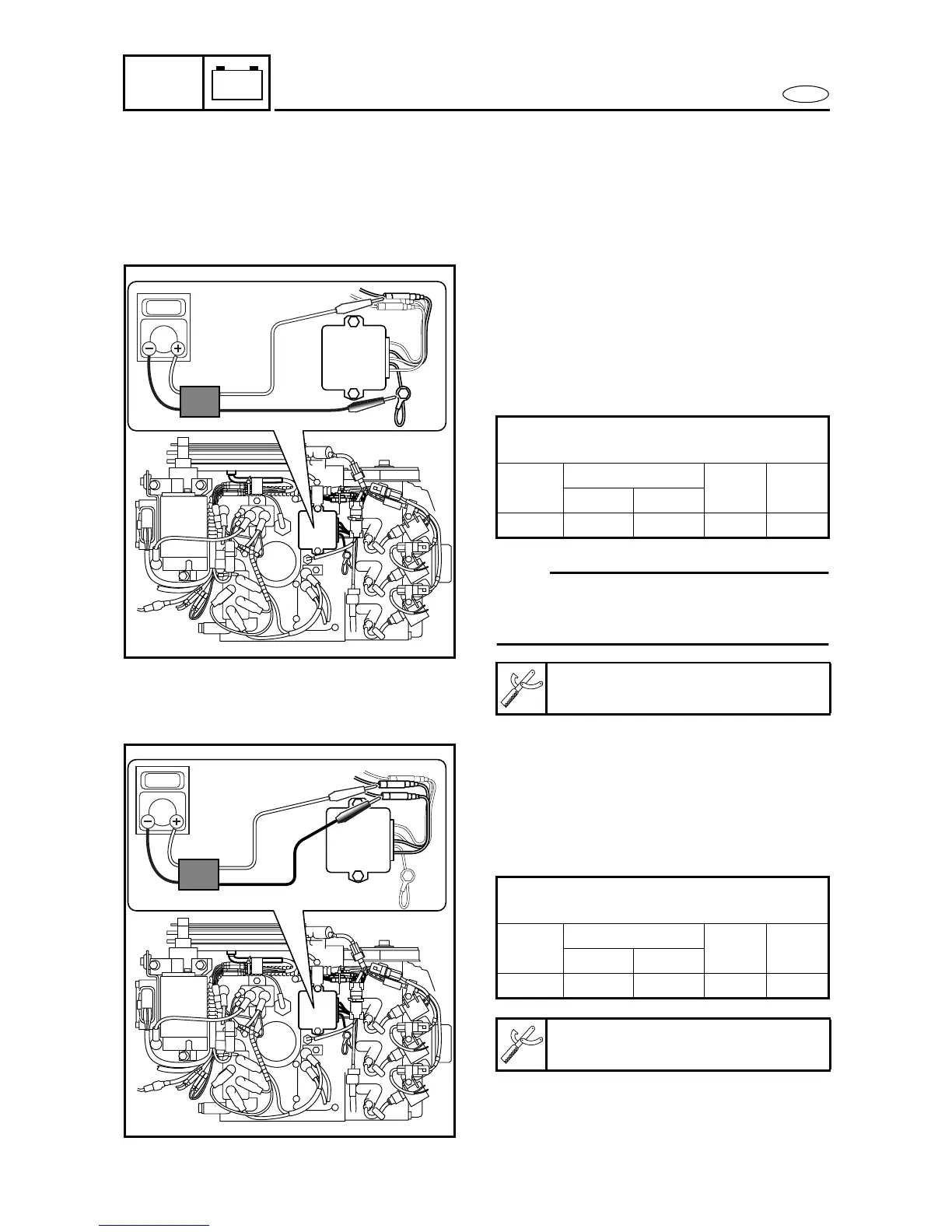

CHCKING THE RECTIFIER/
REGULATOR OUTPUT PEAK VOLTAGE
Measure:
• Rectifier/regulator output peak volt-
age
Below specification → Replace the
rectifier/regulator.
NOTE:
Before measuring rectifier/regulator peak
voltage, make sure that no abnormality is
observed on the lighting coil.
CHECKING THE LIGHTING COIL
OUTPUT PEAK VOLTAGE
Measure:
• Lighting coil output peak voltage
Below specification → Replace the
lighting coil.
B
RR
Output peak voltage
R-B
r/min.
Cranking
1,500 3,500
Opened Closed
D.C. V 8 8 12.5 12.5
Peak voltage adaptor
YU-39991/90890-03169
Y
Y
Output peak voltage
Y- Y
r/min.
Cranking
1,500 3,500
Opened Closed
D.C. V 8 8 25 59
Peak voltage adaptor
YU-39991/90890-03169
To Next Page
