Yamaha F40BWHD - Page 64

SPEC
2-14

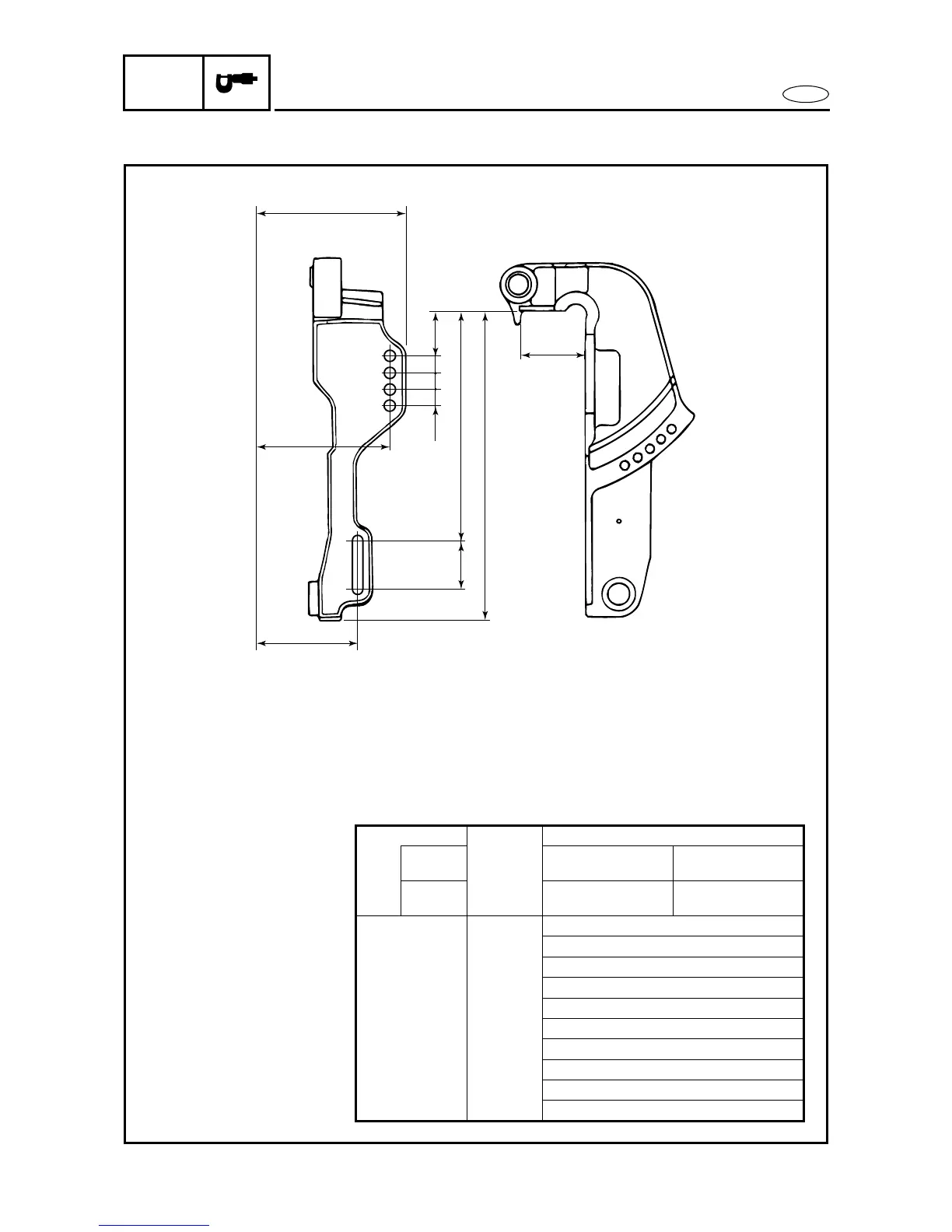

MAINTENANCE SPECIFICATIONS
E
C3
D1
B3
B5
B1
B4
B9
B2D2
B6
B9B9
Symbol
Unit
Model
World-
wide
F40BMHD, WHD F40BED, F40BET
USA,
Canada
F40MSH, F40MLH F40ESR, F40TLR
B1 mm (in) 251.8 (9.9)
B2 mm (in) 254.0 (10.0)
B3 mm (in) 327.0 (12.9)
B4 mm (in) 50.8 (2.0)
B5 mm (in) 180.0 (7.1)
B6 mm (in) 338.0 (13.3)
B9 mm (in) 18.5 (0.7)
D1 mm (in) 13.0 (0.5)
D2 mm (in) 55.5 (2.2)
C3 mm (in) 69.0 (2.7)
