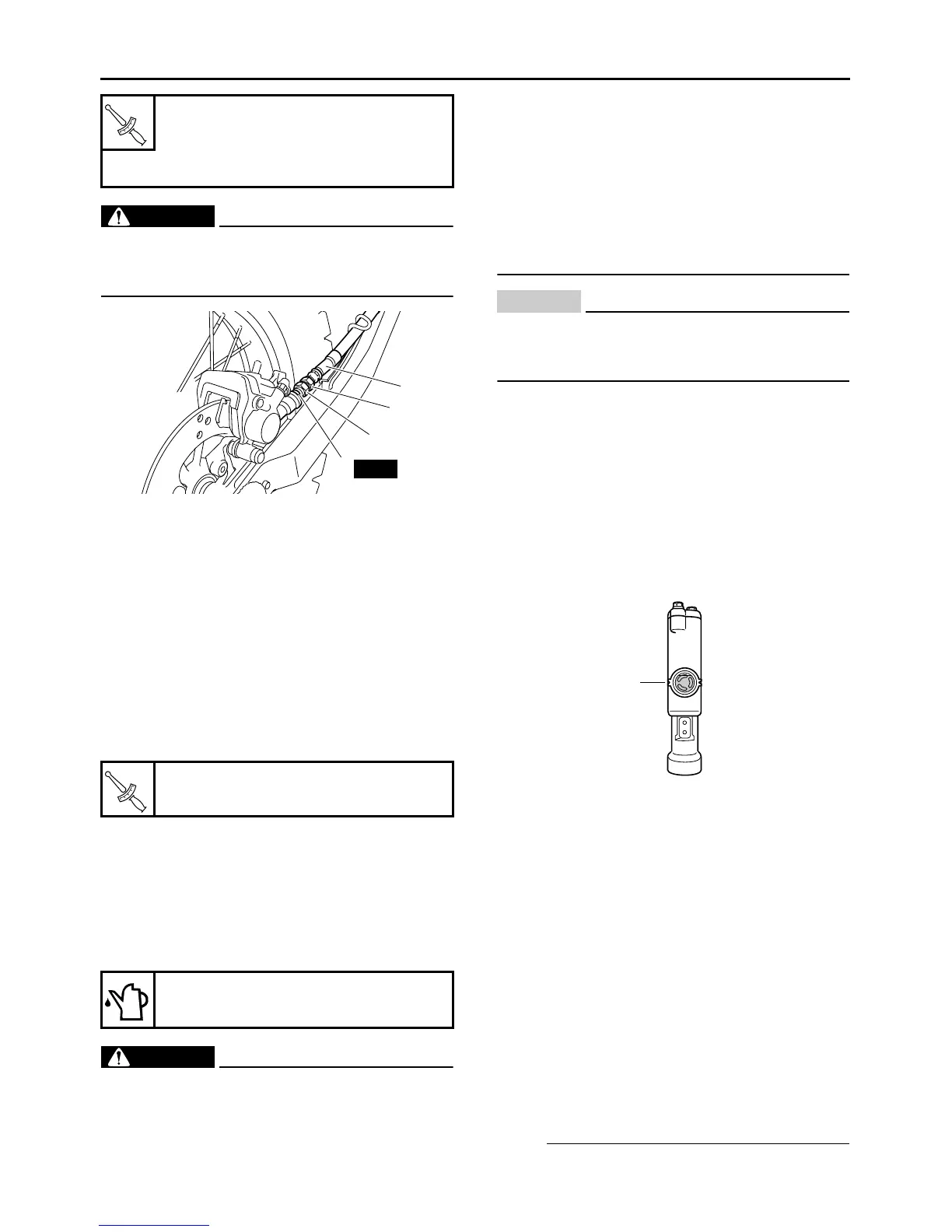

REAR BRAKE
4-32
WARNING
EWA13530
Proper brake hose routing is essential to in-
sure safe vehicle operation. Refer to “CA-
BLE ROUTING” on page 2-25.
4. Remove:
● Rear wheel
●
Rear brake caliper bracket
● Rear brake caliper
5. Install:
● Brake pad springs
● Rear brake caliper bracket
●
Rear brake pads
● Brake pad support bolts
● Brake caliper
Refer to “REPLACING THE REAR BRAKE
PADS” on page 4-29.
6. Install:
● Rear wheel
Refer to “REAR WHEEL” on page 4-8.
7. Fill:
(with the specified amount of the recom-
mended brake fluid)
●
Brake master cylinder reservoir
WARNING
EWA13090
● Use only the designated brake fluid. Other
brake fluids may cause the rubber seals to
deteriorate, causing leakage and poor
brake performance.
●
Refill with the same type of brake fluid that
is already in the system. Mixing brake flu-
ids may result in a harmful chemical reac-
tion, leading to poor brake performance.
● When refilling, be careful that water does
not enter the brake fluid reservoir. Water
will significantly lower the boiling point of
the brake fluid and could cause vapor lock.
CAUTION:
ECA13540
Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean up
any spilt brake fluid immediately.
8. Bleed:
● Brake system
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-19.
9. Check:
● Brake fluid level
Below the minimum level mark “a” → Add the
recommended brake fluid to the proper level.
Refer to “CHECKING THE BRAKE FLUID
LEVEL” on page 3-17.
10.Check:
● Brake pedal operation
Soft or spongy feeling → Bleed the brake
system.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-19.
EAS22700
REMOVING THE REAR BRAKE MASTER
CYLINDER
Before disassembling the rear brake master cyl-
inder, drain the brake fluid from the entire brake
system.
1. Remove:
● Union bolt
● Copper washers
● Brake hose
NOTE:
To collect any remaining brake fluid, place a
Brake hose joint (caliper side)
26 Nm (2.6 m•kg, 19 ft•lb)
Brake hose joint (hose side)
14 Nm (1.4 m•kg, 10 ft•lb)
Brake pad support bolt
17 Nm (1.7 m•kg, 13 ft•lb)
Recommended fluid
DOT 4
T
R
.
.
4
3
2
1
New
T
R
.
.
a
