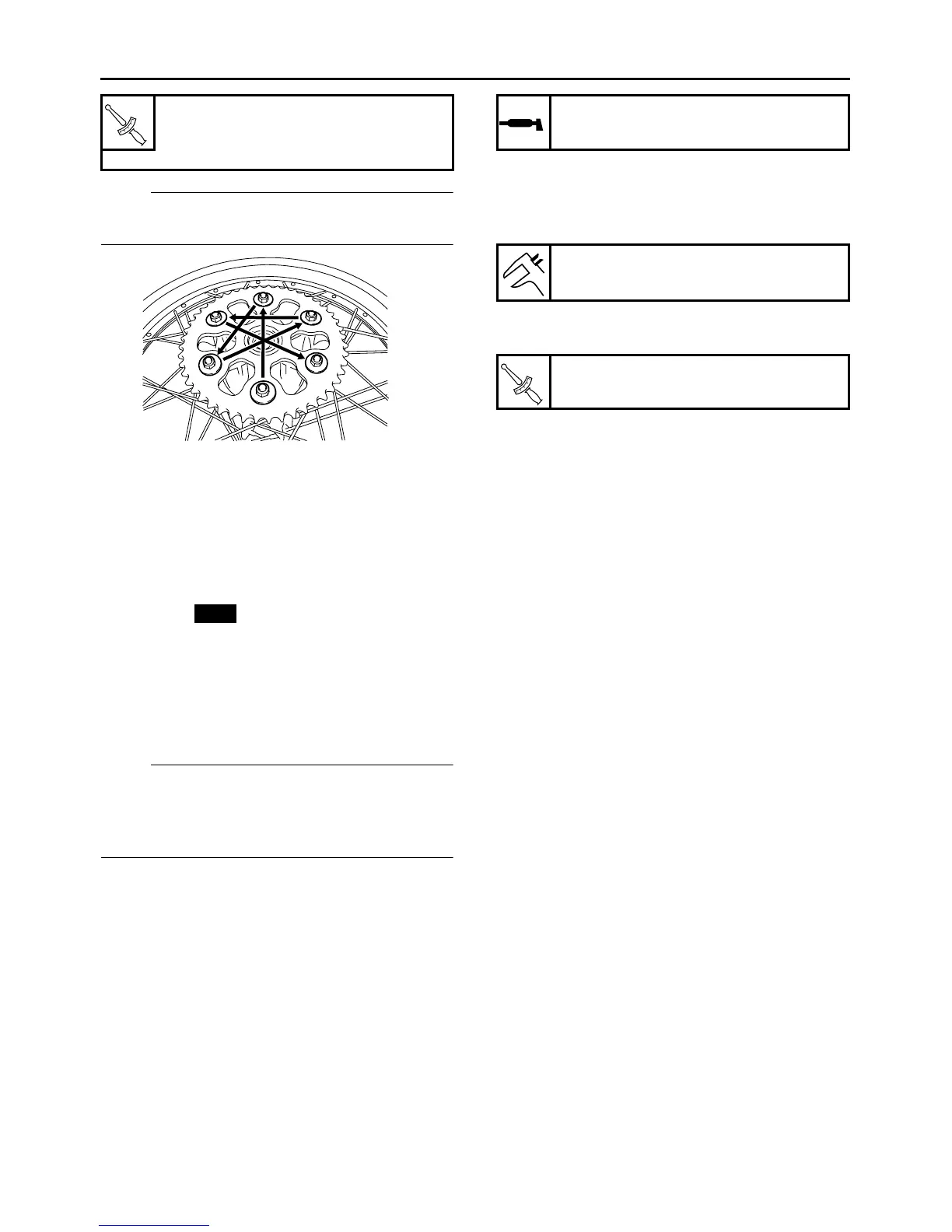

Tighten the self-locking nuts in stages and in a
crisscross pattern.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS22140
ASSEMBLING THE REAR WHEEL
1. Install:
● Wheel bearings
● Oil seals
Refer to “ASSEMBLING THE FRONT
WHEEL” on page 4-5.
● Spacer
EAS22150
ADJUSTING THE REAR WHEEL STATIC
BALANCE
NOTE:
●
After replacing the tire, wheel or both, the rear
wheel static balance should be adjusted.
● Adjust the rear wheel static balance with the
brake disc and drive sprocket installed.
1. Adjust:
● Rear wheel static balance
Refer to “ADJUSTING THE FRONT WHEEL
STATIC BALANCE” on page 4-5.
EAS22160
INSTALLING THE REAR WHEEL
1. Install:
● Rear brake disc
Refer to “CHECKING THE REAR BRAKE
DISC” on page 4-29.
2. Lubricate:
● Rear wheel axle
● Oil seal lips
3. Adjust:
●
Drive chain slack
Refer to “ADJUSTING THE DRIVE CHAIN
SLACK” on page 3-20.
4. Tighten:
● Rear wheel axle nut
Rear wheel sprocket self-locking
nut
33 Nm (3.3 m•kg, 29 ft•lb)
T
R
.
.
New
Recommended lubricant
Lithium-soap-based grease
Drive chain slack
40.0–45.0 mm (1.57–1.77 in)
Rear wheel axle nut
85 Nm (8.5 m•kg, 62 ft•lb)
T
R
.
.
