ELECTRIC STARTING SYSTEM
7-7
EAS27180

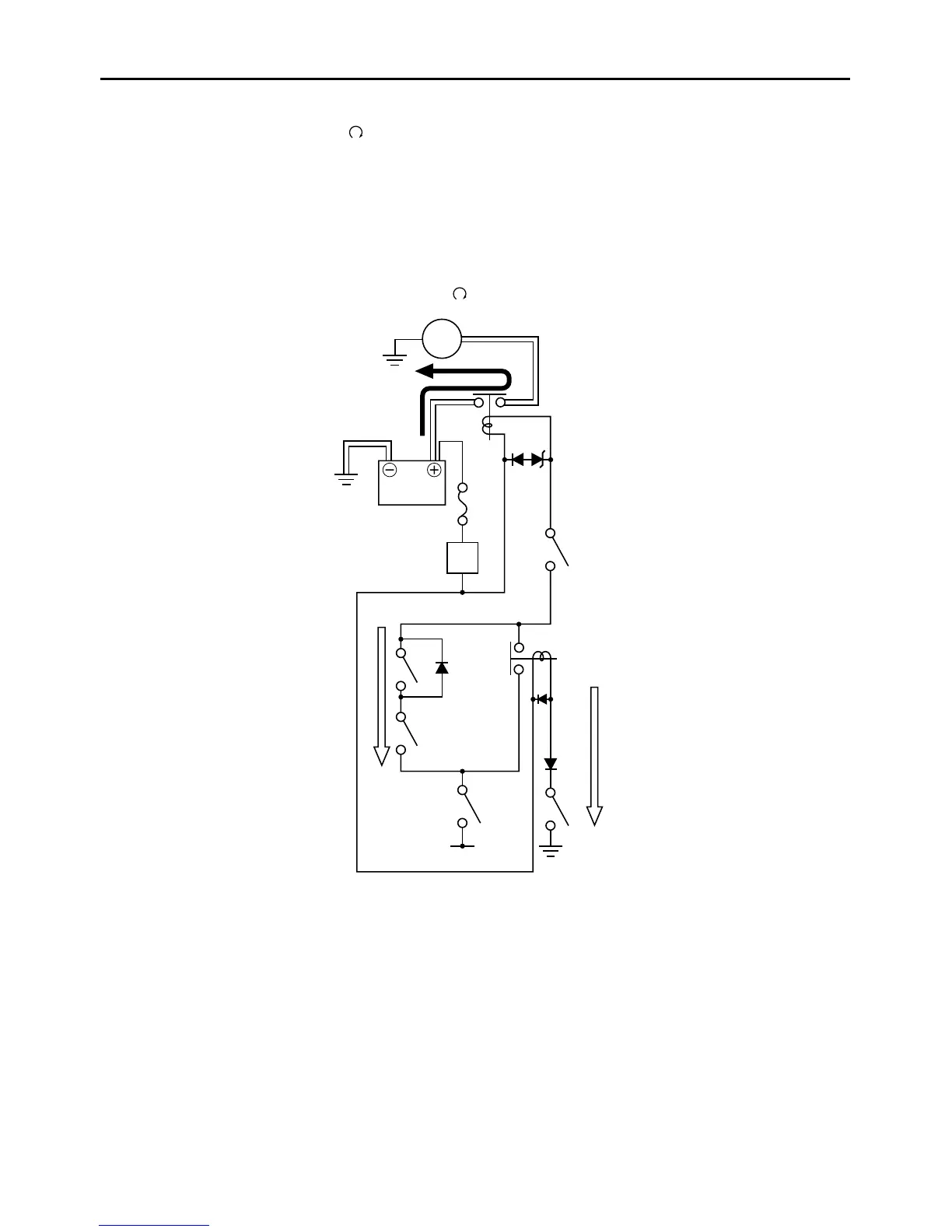

STARTING CIRCUIT CUT-OFF SYSTEM OPERATION
If the engine stop switch is set to “ ” and the main switch is set to “ON” (both switches are closed), the
starter motor can only operate if at least one of the following conditions is met:
● The transmission is in neutral (the neutral switch is closed).
● The clutch lever is pulled to the handlebar (the clutch switch is closed) and the sidestand is up (the
sidestand switch is closed).
The starting circuit cut-off relay prevents the starter motor from operating when neither of these condi-
tions has been met. In this instance, the starting circuit cut-off relay is open so current cannot reach the
starter motor. If any of the above has occurred and if the starting circuit cut-off relay is turned ON, you
can start the engine by pressing starter switch “ ”.
2
7
3
5
6
a
b
4
1
8
10
9
11
12
13
14
