Yamaha XT250X - ELECTRIC STARTER

ELECTRIC STARTER
5-50
EAS24780
ELECTRIC STARTER

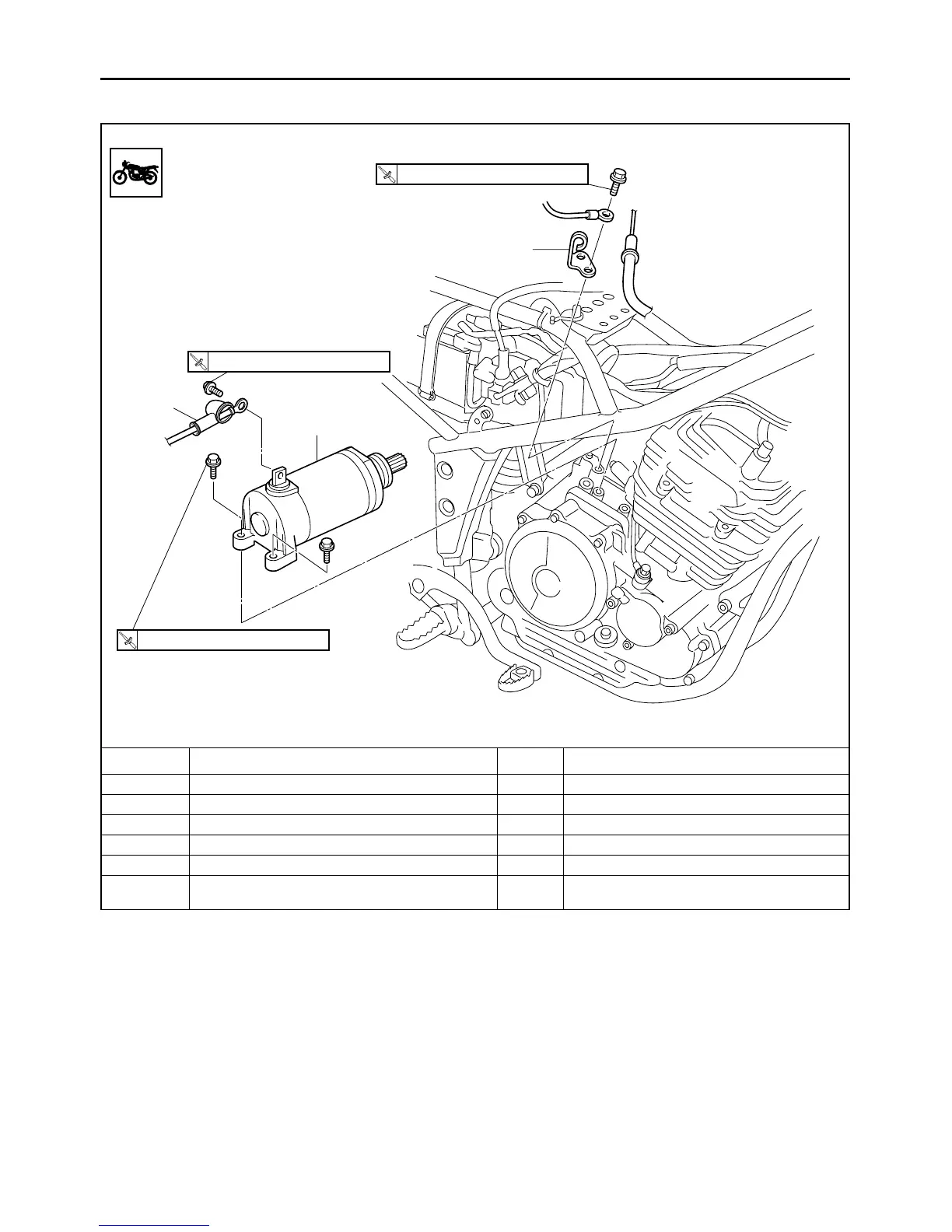

Removing the starter motor
Order Job/Parts to remove Q’ty Remarks
Carburetor Refer to “CARBURETOR” on page 6-3.
Exhaust pipe Refer to “ENGINE REMOVAL” on page 5-1.
1 Clutch cable holder 1
2 Starter motor lead 1 Disconnect.
3 Starter motor 1
For installation, reverse the removal proce-
dure.
T
R
.
.
10 Nm (1.0 m • kg, 7.2 ft • Ib)
T
R
.
.
10 Nm (1.0 m • kg, 7.2 ft • Ib)
1
2
3
T
R
.
.
7 Nm (0.7 m • kg, 5.1 ft • Ib)
