CHAIN DRIVE
4-57
EAS23400
CHAIN DRIVE

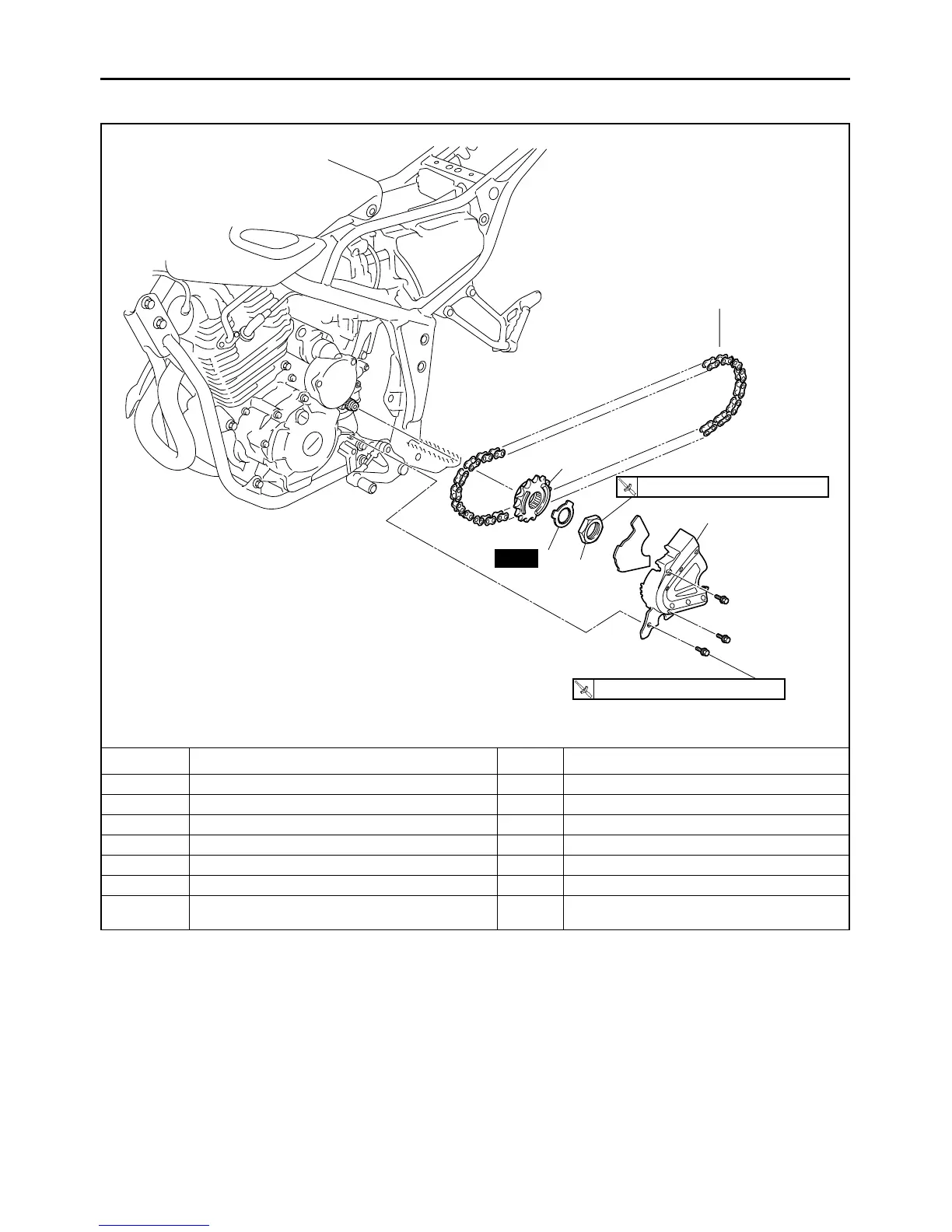

Removing the drive chain
Order Job/Parts to remove Q’ty Remarks
Swingarm Refer to “SWINGARM” on page 4-54.
1 Drive sprocket cover 1
2 Drive sprocket nut 1
3 Lock washer 1
4 Drive sprocket 1
5 Drive chain 1
For installation, reverse the removal proce-
dure.
3
2
4
1
5
New
T
R
.
.
10 Nm (1.0 m • kg, 7.2 ft • Ib)
T
R
.
.
110 Nm (11 m • kg, 80 ft • Ib)
