GENERAL CHASSIS
4-1
EAS21830
GENERAL CHASSIS

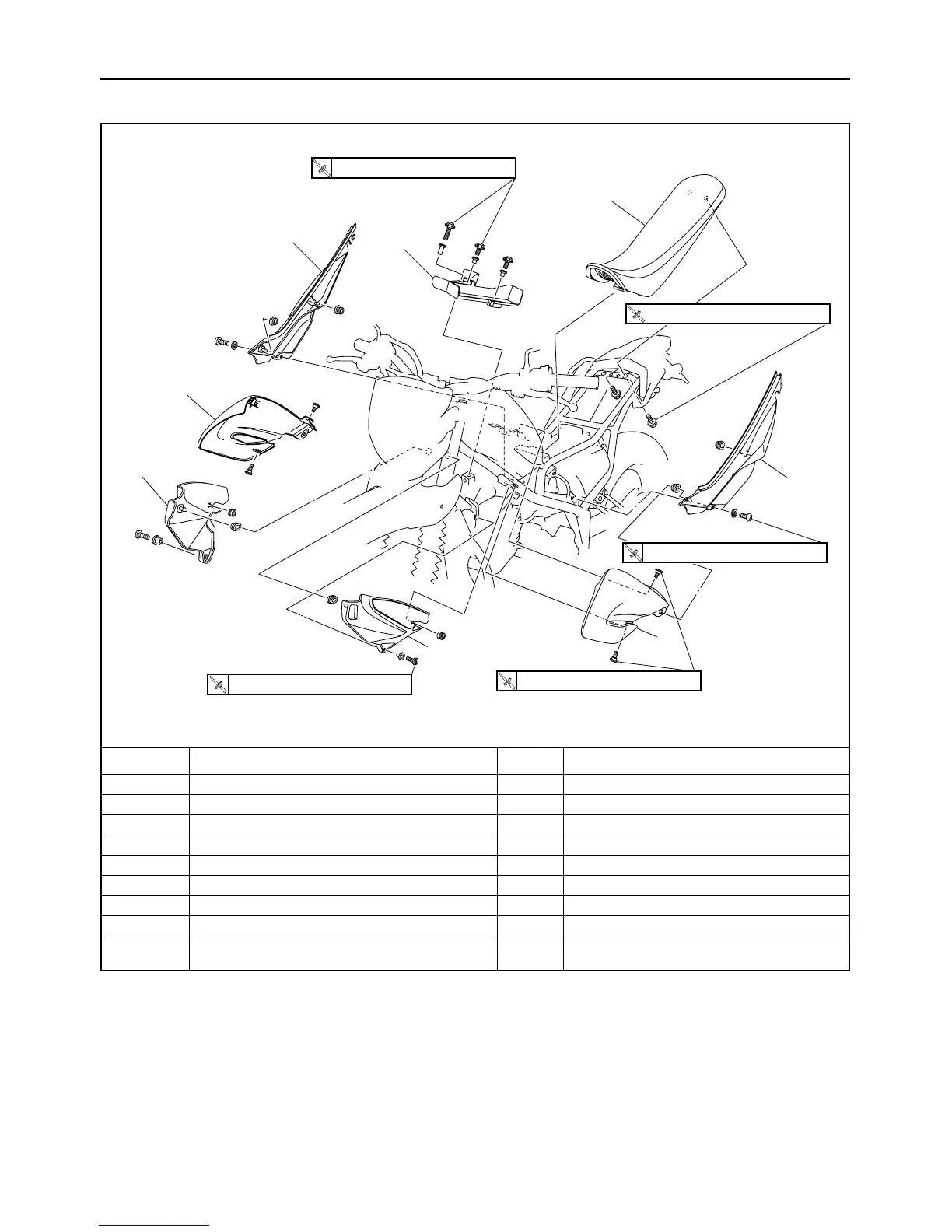

Removing the cowling
Order Job/Parts to remove Q’ty Remarks
1 Seat 1
2 Rear left side cover 1
3 Rear right side cover 1
4 Left fuel tank side cover 1
5 Right fuel tank side cover 1
6 Front left side cover 1
7 Front right side cover 1
8 Tool box 1
For installation, reverse the removal proce-
dure.
T
R
.
.
7 Nm (0.7 m • kg, 5.1 ft • Ib)
T
R
.
.
7 Nm (0.7 m • kg, 5.1 ft • Ib)
T
R
.
.
4 Nm (0.4 m • kg, 2.9 ft • Ib)
T
R
.
.
9 Nm (0.9 m • kg, 6.5 ft • Ib)
T
R
.
.
7 Nm (0.7 m • kg, 5.1 ft • Ib)
1
2
4
6
7
5
3
8
