Yamaha XT250X - TRANSMISSION

TRANSMISSION
5-61
EAS26241
TRANSMISSION

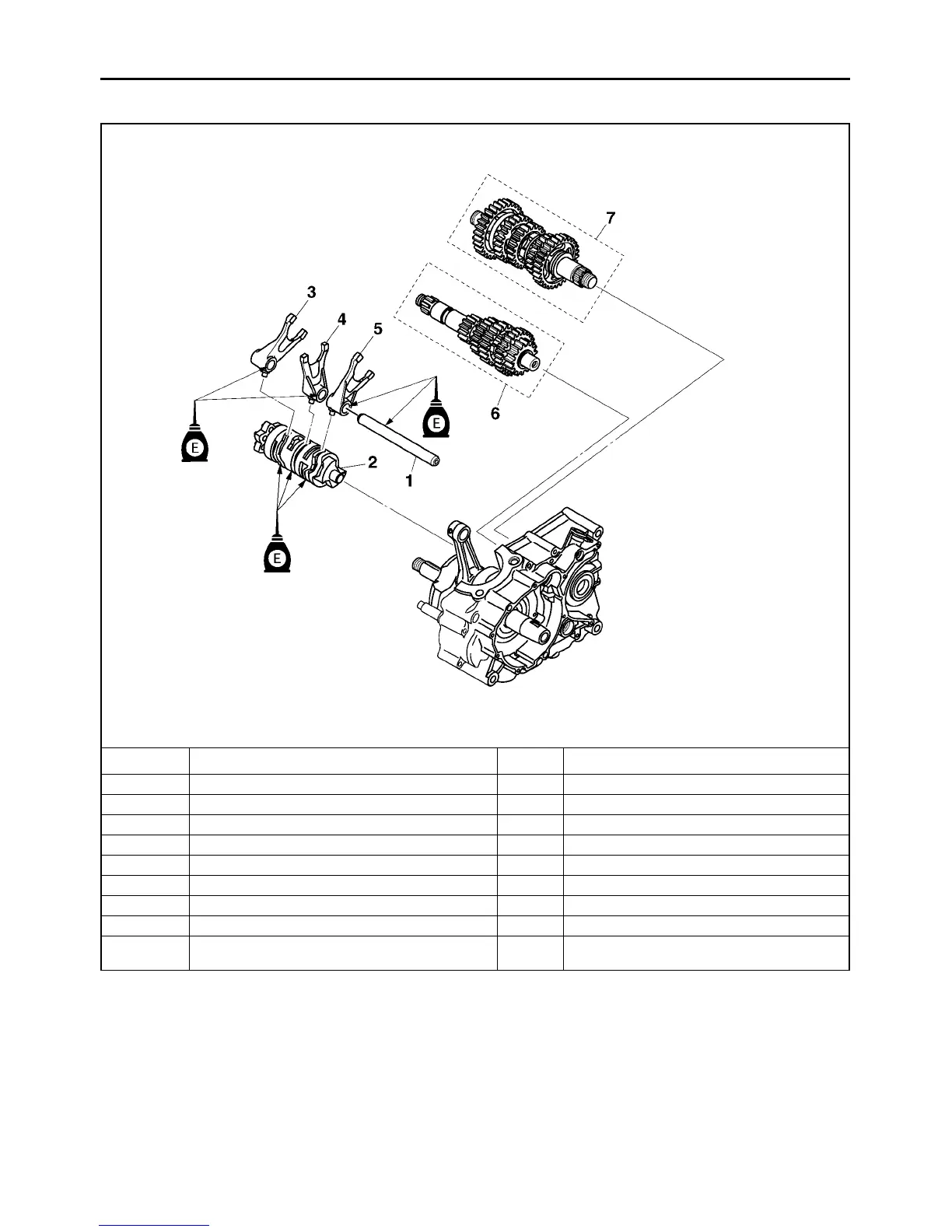

Removing the transmission, shift drum assembly, and shift forks
Order Job/Parts to remove Q’ty Remarks
Crankcase separation Refer to “CRANKCASE” on page 5-54.
1 Shift fork guide bar 1
2 Shift drum assembly 1
3 Shift fork-R 1
4 Shift fork-C 1
5 Shift fork-L 1
6 Main axle assembly 1
7 Drive axle assembly 1
For installation, reverse the removal proce-
dure.
