Yamaha XT250X - FRONT BRAKE

FRONT BRAKE
4-12
EAS22210
FRONT BRAKE

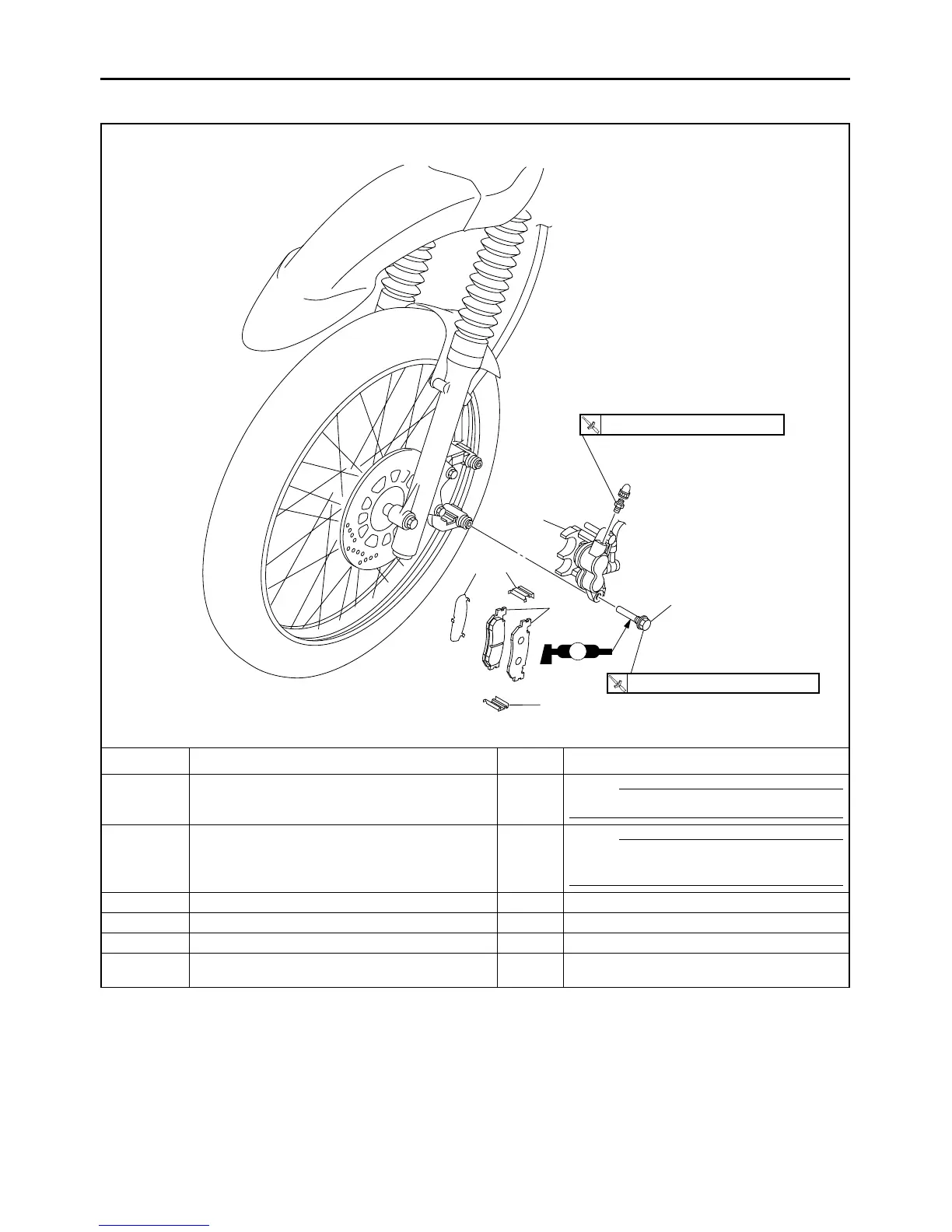

Removing the front brake pads
Order Job/Parts to remove Q’ty Remarks
1 Front brake caliper support bolt 1
NOTE:
Remove the lower parts only.
2 Front brake caliper assembly 1
NOTE:
Lift and remove the front brake caliper assem-
bly.
3 Front brake pad 2
4 Brake pad shim 1
5 Brake pad spring 2
For installation, reverse the removal proce-
dure.
S
T
R
.
.
6 Nm (0.6 m • kg, 4.3 ft • Ib)
T
R
.
.
32 Nm (3.2 m • kg, 23 ft • Ib)
1
2
54
3
5
