FRONT BRAKE
4-13

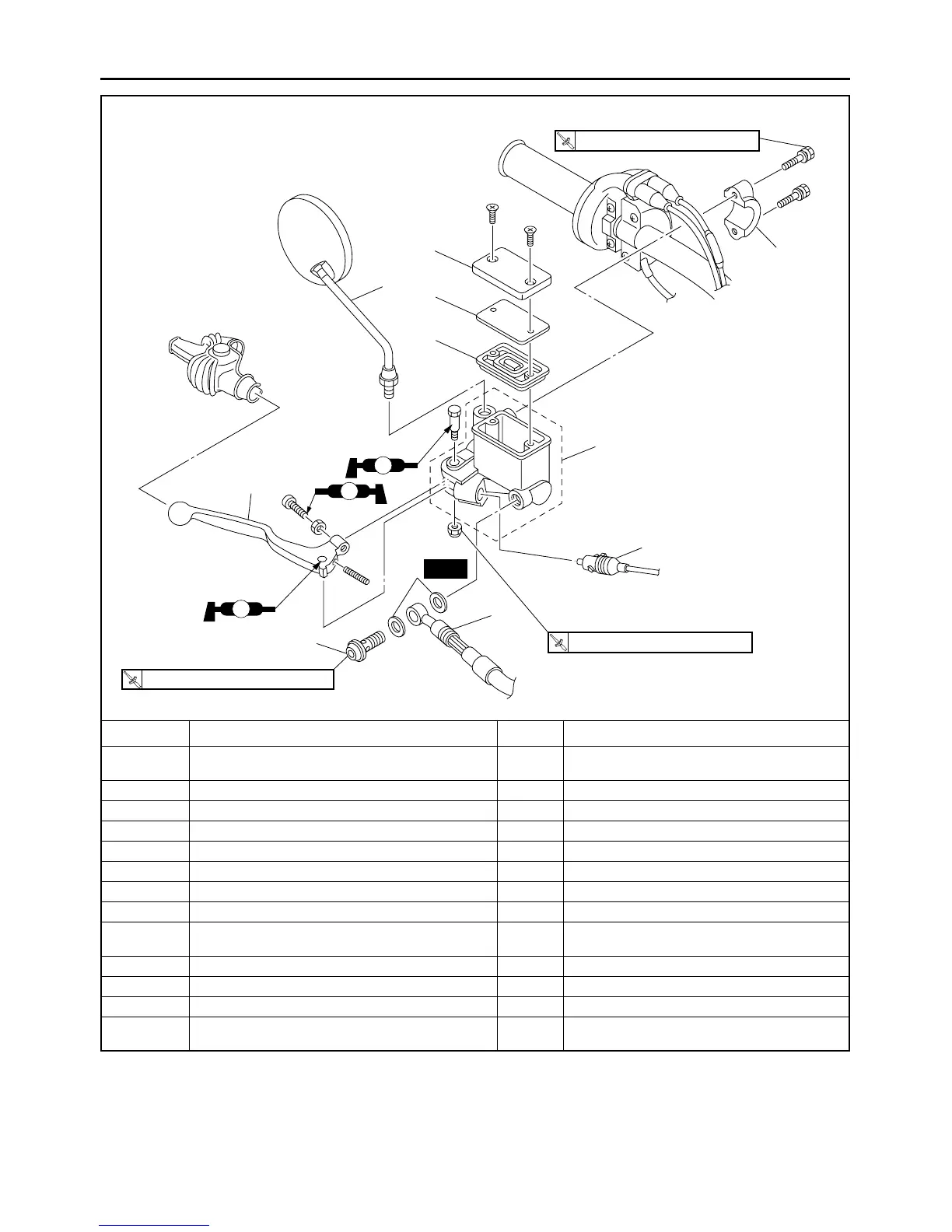

Removing the front brake master cylinder
Order Job/Parts to remove Q’ty Remarks
Drain the brake fluid
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-19.
1 Right rear view mirror 1
2 Brake lever 1
3 Front brake light switch 1
4 Union bolt 1
5 Copper washer 2
6 Front brake hose 1
7 Brake master cylinder reservoir cap 1
8
Brake master cylinder reservoir diaphragm
holder
1
9 Brake master cylinder reservoir diaphragm 1
10 Front brake master cylinder holder 1
11 Front brake master cylinder 1
For installation, reverse the removal proce-
dure.
New
S
S
S
T
R
.
.
7 Nm (0.7 m • kg, 5.1 ft • Ib)
T
R
.
.
7 Nm (0.7 m • kg, 5.1 ft • Ib)
T
R
.
.
30 Nm (3.0 m • kg, 22 ft • Ib)
1
2
5
4
6
3
11
9
8
7
10
