Yamaha XT250X - Checking the Shift Shaft; Checking the Stopper Lever; Installing the Shift Shaft

SHIFT SHAFT
5-44
EAS25420
CHECKING THE SHIFT SHAFT
1. Check:
● Shift shaft
● Shift lever
Bends/damage/wear → Replace.
● Shift lever spring
Damage/wear → Replace.
EAS25430
CHECKING THE STOPPER LEVER
1. Check:
● Stopper lever
Bends/damage → Replace.
Roller turns roughly → Replace the stopper
lever.
EAS25450

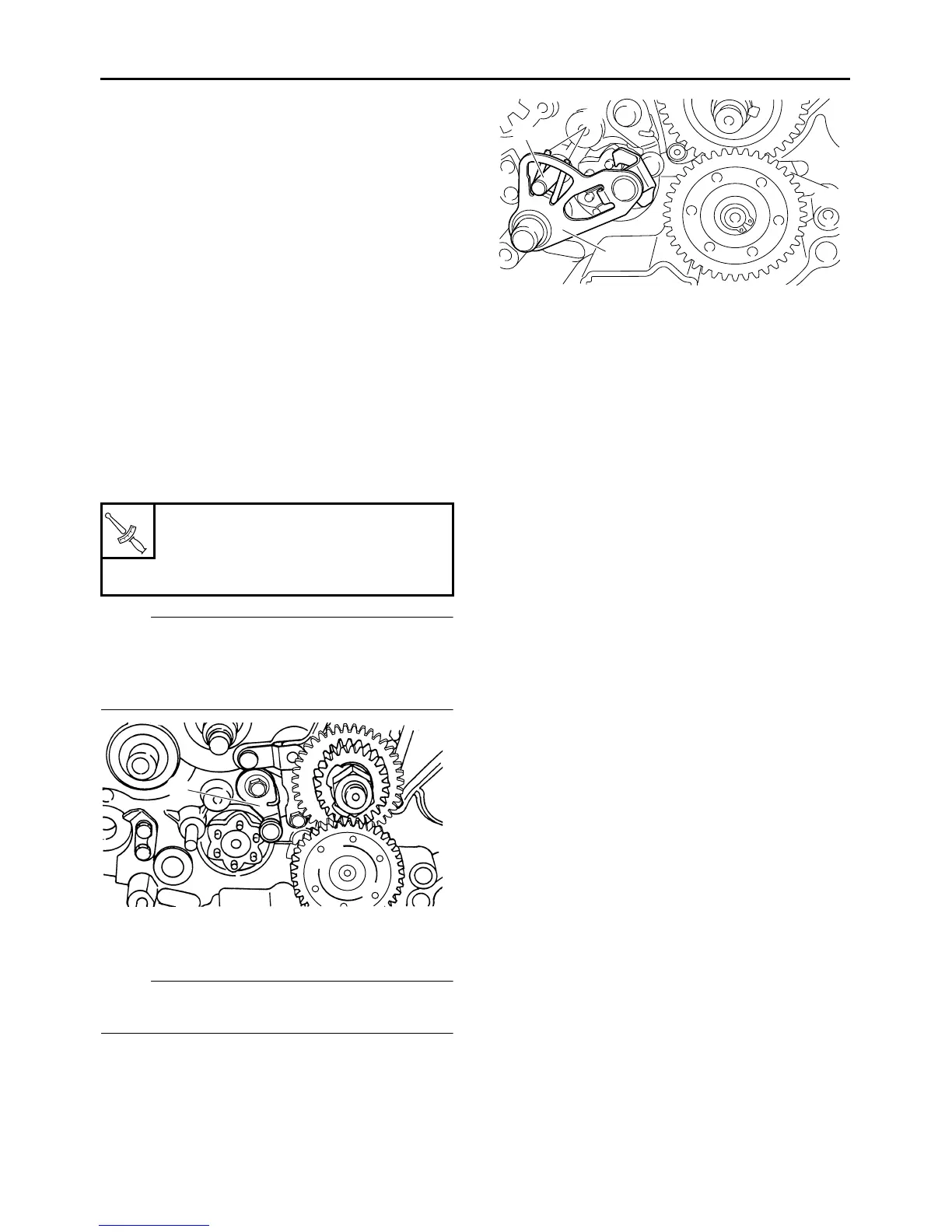

INSTALLING THE SHIFT SHAFT
1. Install:
● Stopper lever “1”
● Stopper lever spring
NOTE:
● Hook the ends of the stopper lever spring onto
the stopper lever and the crankcase boss.
● Mesh the stopper lever with the shift drum seg-
ment assembly.
2. Install:
● Shift shaft assembly “1”
NOTE:
Align shaft spring “2” with stopper “3” and as-
semble the shift shaft assembly.
Stopper lever bolt
10 Nm (1.0 kg•m)
Apply locking agent (LOC-
TITE®)
T
R
.
.
1
1
2
3
