CAMSHAFT
5-16

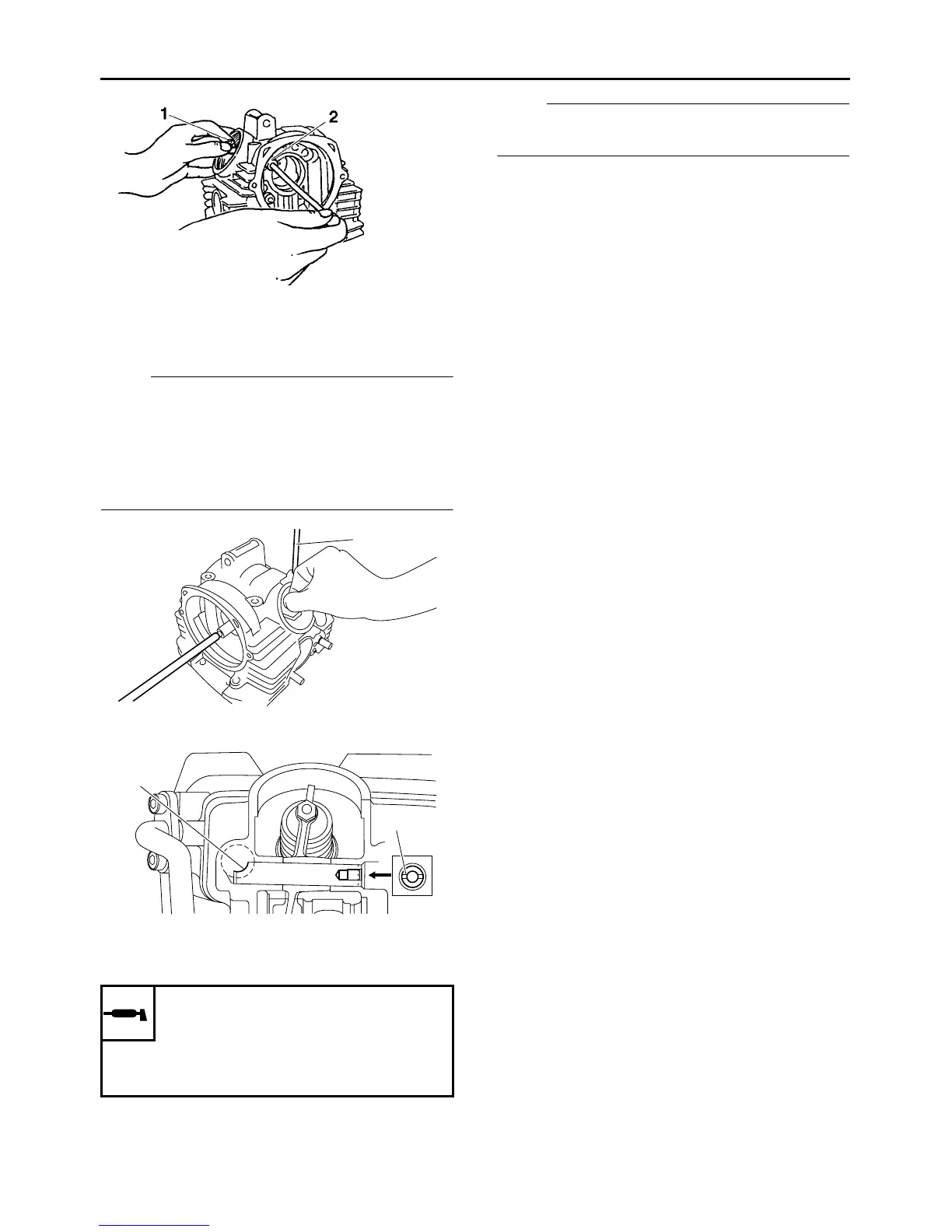

3. Install:
●
Intake rocker arm
● Intake rocker arm shaft
NOTE:
● Insert cylinder head bolt “1” (226-mm long) into
the cylinder head bolt hole.
● Keep slot “a” of intake rocker arm shaft in hor-
izontal direction, align slot “b” of the shaft end
with the cylinder head bolt hole, and assemble
the camshaft.
4. Lubricate:
● Camshaft
5. Install:
● Camshaft
NOTE:
Assemble the camshaft by inserting the 10-mm
bolt into the camshaft hole and tightening it.
Recommended lubricant
Camshaft
Molybdenum-disulfide oil
Camshaft bearing
Engine oil
1
a
b
